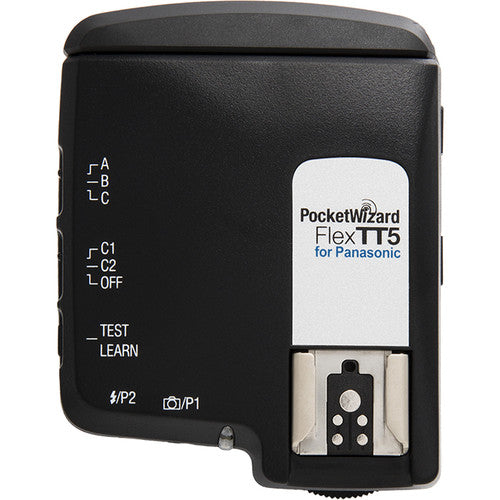

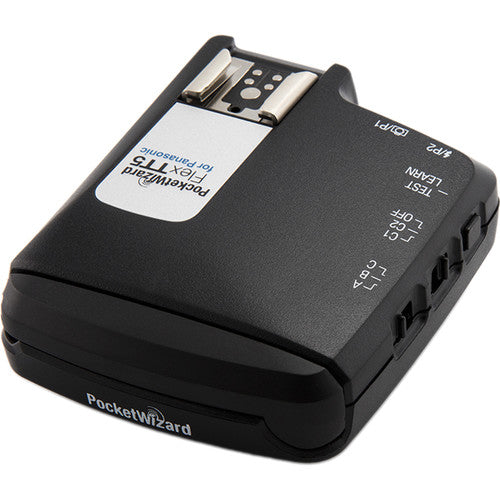

The FlexTT5 Transceiver for Panasonic is a remote triggering and control device designed specifically for Panasonic's Lumix flashes. With 52 channels over 26 frequencies, the FlexTT5 offers wireless TTL auto exposure of 1 or multiple flashes at impressive distances comparable to other PocketWizard radio products. PowerTracking automatically adjusts for changes in shutter speed, f-stop or ISO. Distribution into 3 groups of flashes is possible with an unlimited number of flashes per group.
High Speed Sync is also supported for shutter speeds shorter than the manufacturer's standard sync speeds. Another type of HSS - HyperSync uses precise timing to give you more light from your flash and is ideal for using power packs or high-powered strobes to freeze action or manage ambient light levels at shutter speeds as short as 1/1250 sec. Auto-Relay Mode can also trigger both a camera and a flash remotely with or without TTL control or both at the same time.The FlexTT5 is PocketWizard compatible meaning that it will work with all PocketWizard radio units and OEM partner products like those in Profoto, Bowens, Dynalite and Lumedyne flashes in non-TTL mode provided they're on the same frequency. The FlexTT5 has USB connectivity that allows you to use a free utility to tweak features like the HyperSync settings and take advantage of updates to future proof the transceiver.
This item is FCC compliant and can only be used with corresponding USA FCC compliant models. Using this item outside of the United States may be illegal. is not responsible for any fines, fees, or penalties that may come from inappropriate spectrum usage.
Remotely adjust the manual power settings of your flashes in up to three zones (groups). You can have as many flashes in each group as you want
Automatically adjusts for changes in shutter speed, f-stop or ISO when working in TTL mode. Shoot carefree without the need to readjust your lighting
Get more light, faster recycling times and more shots per battery with Panasonic's High Speed Sync (HSS) mode, optimized by PocketWizard's ControlTL technology. Now you can take advantage of this great feature and shoot wide open in full sun with remote speedlights
HyperSync is able to harness much more energy compared with to pulsed HSS. It also allows photographers to achieve faster X-sync speeds using precision timing to align the flash's duration and output curve with the moving shutter curtains. This allows more light in the image than HSS can provide, and works with higher powered flashes
Works with all PocketWizard radios on the same frequency including PocketWizard OEM Partner products like Sekonic meters and Profoto, Bowens, Calumet, Dynalite, Lumedyne, Norman and Photogenic flash packs for standard triggering and HyperSync
Using a standard USB connection and the free PocketWizard Utility, you can easily configure your channel settings, dial in your HyperSync timing, adjust your sleep-mode timers and update your product to the latest firmware making FlexTT5 radios virtually "future proof"
Auto-Sensing Transceiver Technology
PocketWizard's Auto-Sensing Transceiver Technology enables the FlexTT5 transceiver to switch between transmit mode and receive mode automatically for greater flexibility on the job
Easily trigger a remote camera in sync with a remote flash with Auto-Relay Mode. Put a camera where you can't be and use either remote TTL or non-TTL lighting or both at the same time
Use your Panasonic camera's flash menus to control the power of up to 3 Groups (zones) of light
The FlexTT5 Transceiver has two plug-in ports for use with remote cameras and other flash packs
In the Box
- PocketWizard FlexTT5 Transceiver for Panasonic
- USB Mini Cable
- 2 x AA Batteries
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
-
- Manual Power Control
- PowerTracking
- HSS
- HyperSync
- PocketWizard Compatible
- PocketWizard Utility
- Auto-Sensing Transceiver Technology
- Auto-Relay Mode
- ZoneControl
- Camera/Flash Ports
PocketWizard FlexTT5 Specs
Wireless
| Channels |
52.0 |
| Groups |
3 (A, B, C) |
| Wireless Range |
1000' / 304.8 m |
| Radio Frequency |
340 to 354 MHz |
Connectivity
| Inputs/Outputs |
1 x 1/8" / 3.5 mm (Camera Shutter)
1 x 1/8" / 3.5 mm (Flash)
1 x Mini-USB |
Mounting
| Bottom Mount |
1/4"-20 Thread |
| Top Mount |
Hot Shoe |
Environmental
| Operating Temperature |
5 to 120°F / -15 to 49°C |
| Storage Temperature |
-22 to 185°F / -30 to 85°C |
Physical
| Dimensions |
Transmitter: 3.6 x 2.9 x 1.4" / 9.2 x 7.3 x 3.6 cm |
| Weight |
5.4 oz / 153.1 g |
Packaging Info
| Package Weight |
0.655 lb |
| Box Dimensions (LxWxH) |
5.3 x 5.1 x 2.25" |
