Description

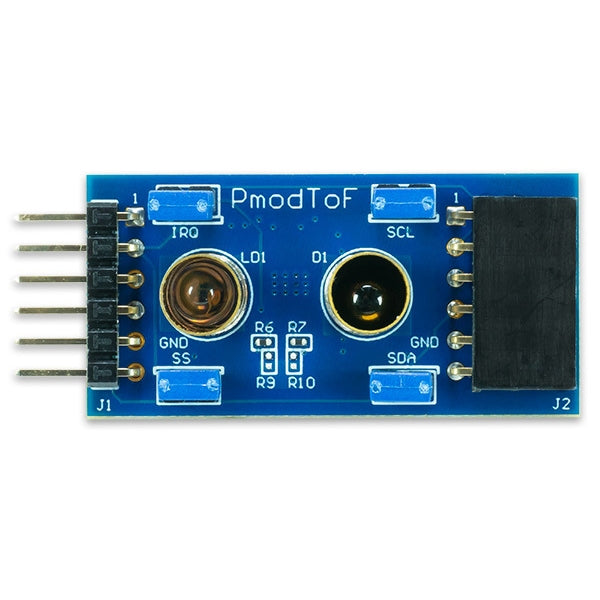

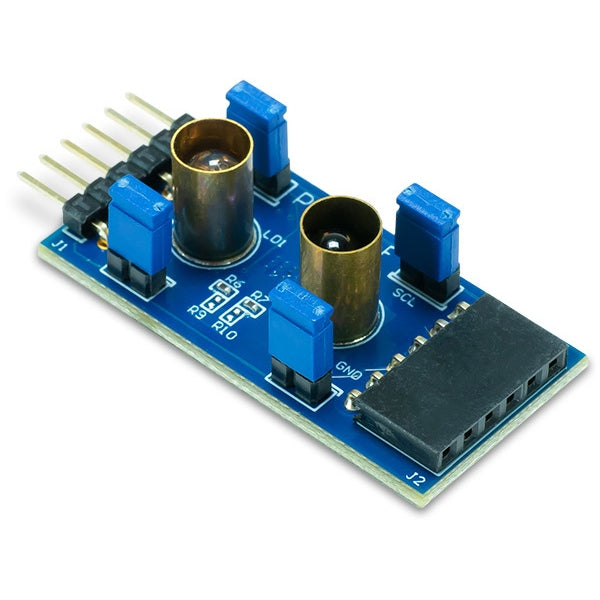

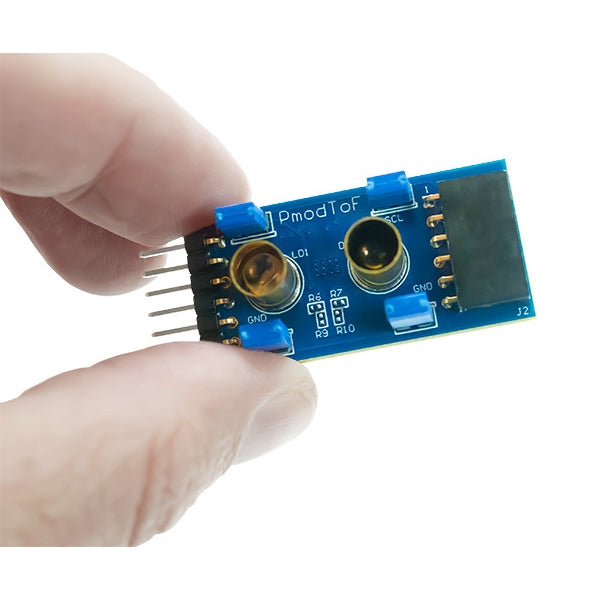

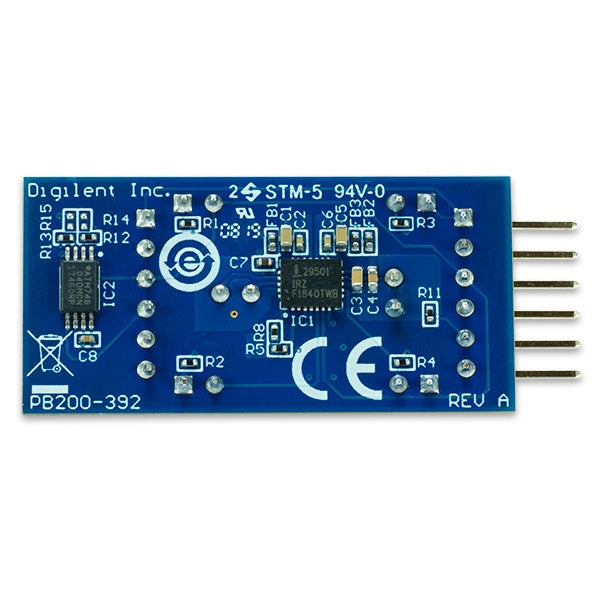

This ToF Module is a compact I/O board designed to digitally report the distance measured by the Time of Flight based signal processing integrated circuit.
Features & Specs
- Power supply voltage: 2.7V to 3.3V
- Serial clock frequency: 10kHz to 400kHz, 100kHz typical
- Maximum current consumed: 55mA
- Wavelength: 860nm
- Emission angle: ±3°
- Optimized low-power modes
- Enables proximity detection and distance measurement
- 16-bit resolution
- Onboard EEPROM to save calibrations
- 6-pin Pmod connector with I2C interface
- Pass-through Pmod host port for daisy-chaining
Features & Specs
- Power supply voltage: 2.7V to 3.3V
- Serial clock frequency: 10kHz to 400kHz, 100kHz typical
- Maximum current consumed: 55mA
- Wavelength: 860nm
- Emission angle: ±3°
- Optimized low-power modes
- Enables proximity detection and distance measurement
- 16-bit resolution
- Onboard EEPROM to save calibrations
- 6-pin Pmod connector with I2C interface
- Pass-through Pmod host port for daisy-chaining
Documentation
