Plugable UD-CAM Overview

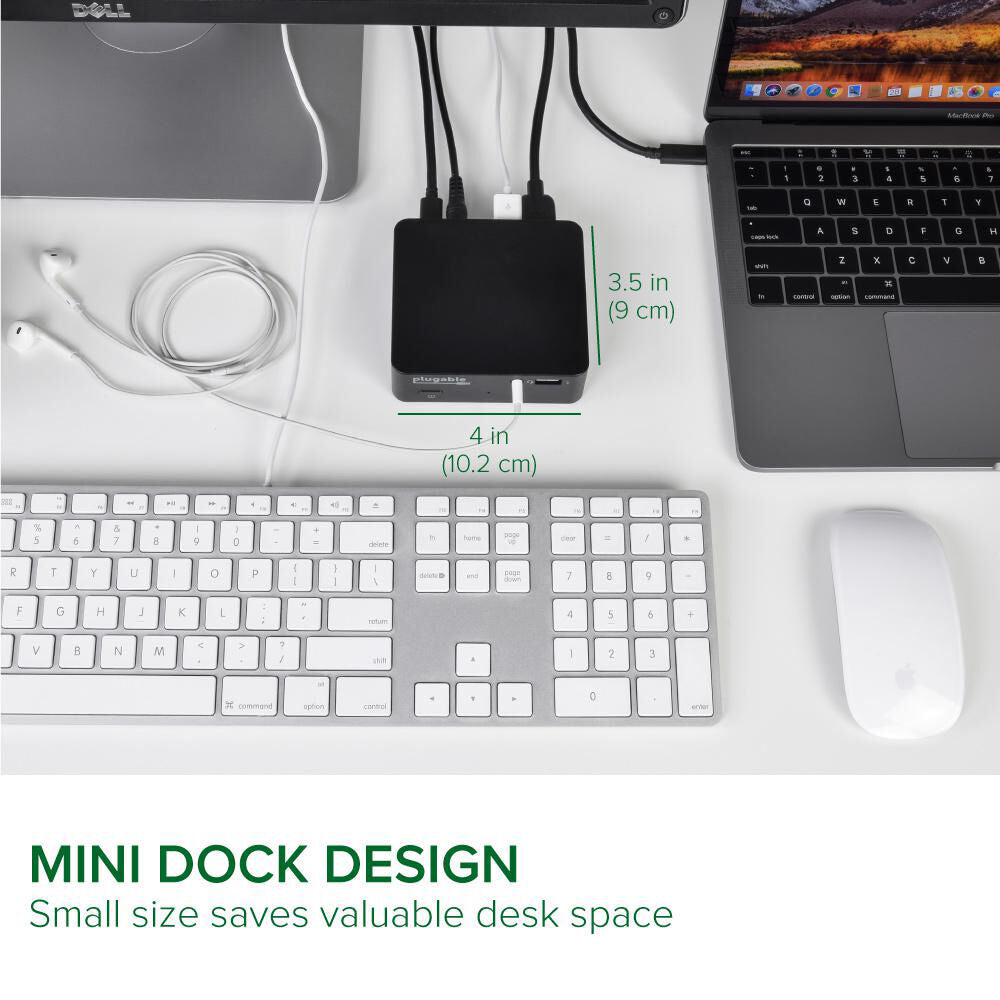

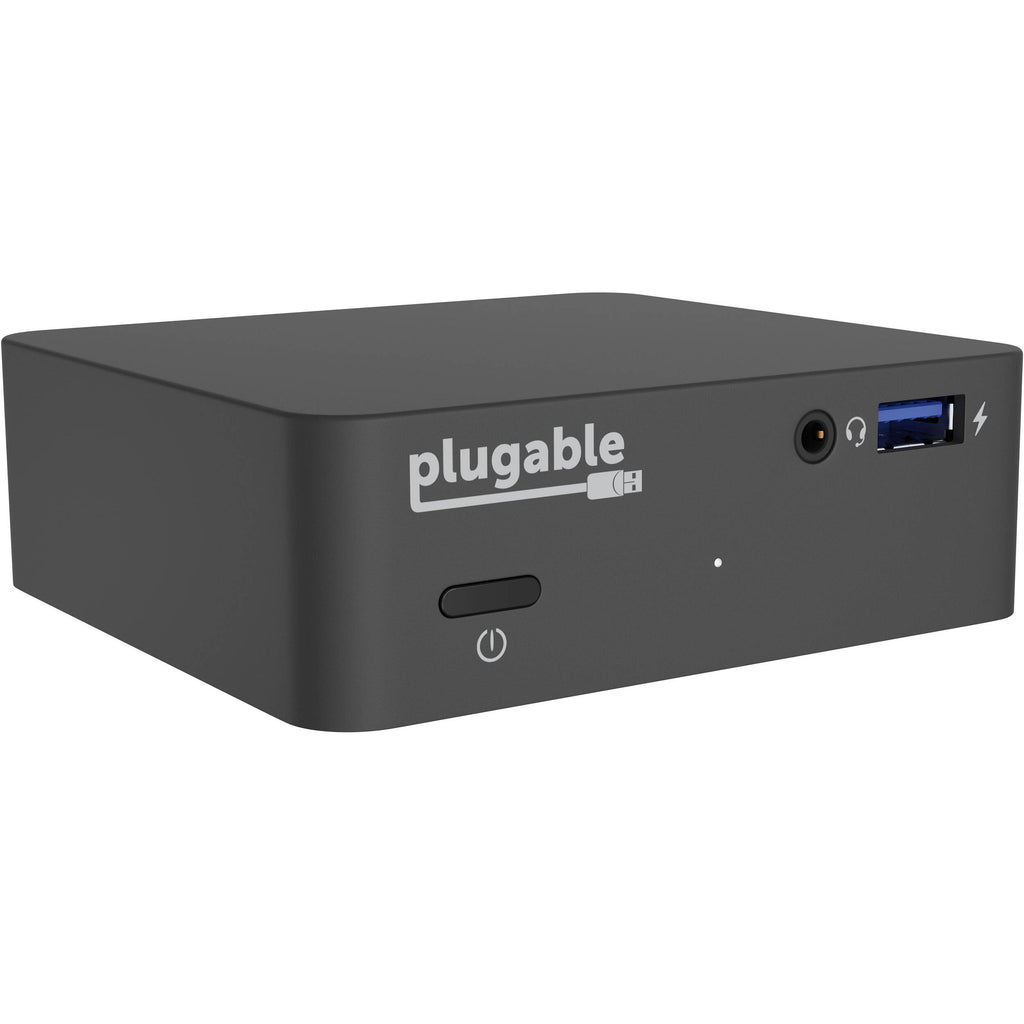

Expand the connectivity of your notebook with the USB Type-C Mini Docking Station with 85W Power Delivery from Plugable. This compact dock with a small form factor design barely takes up room on your desktop, making this ideal for anyone who wishes for additional functionality while saving space.

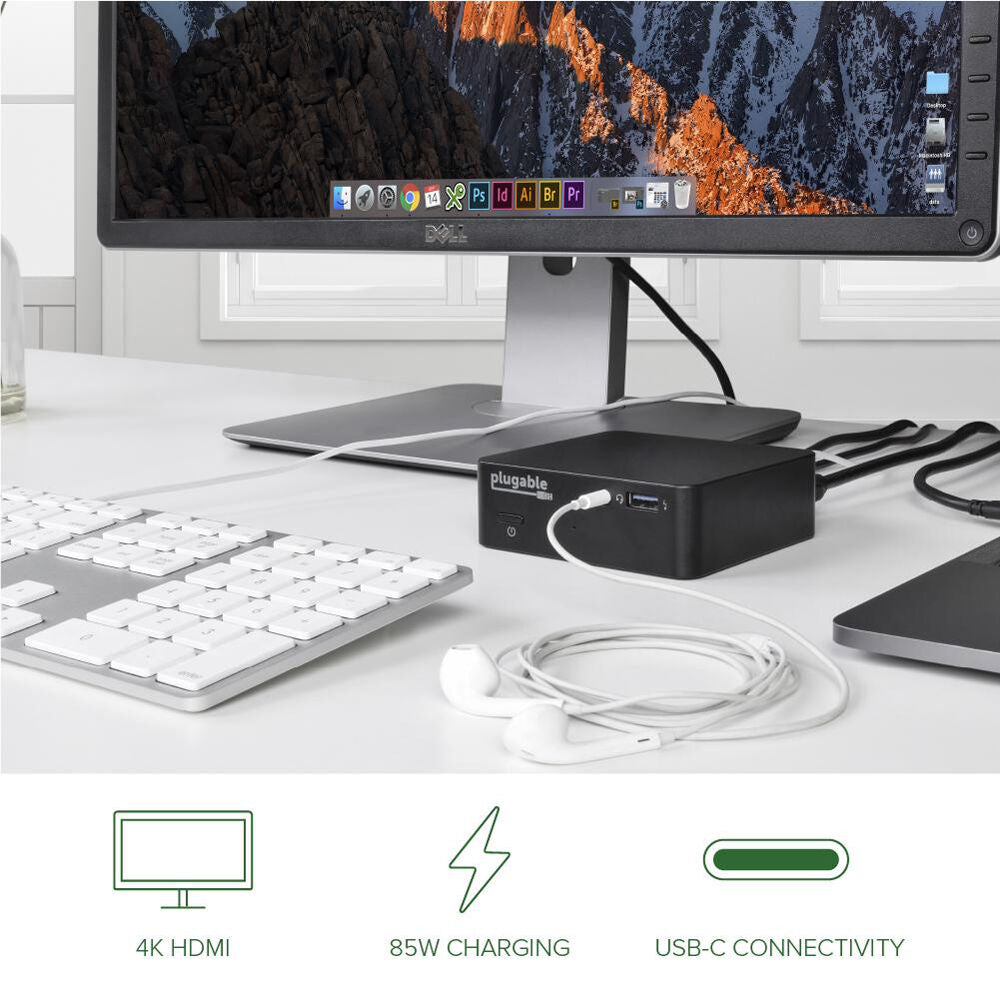

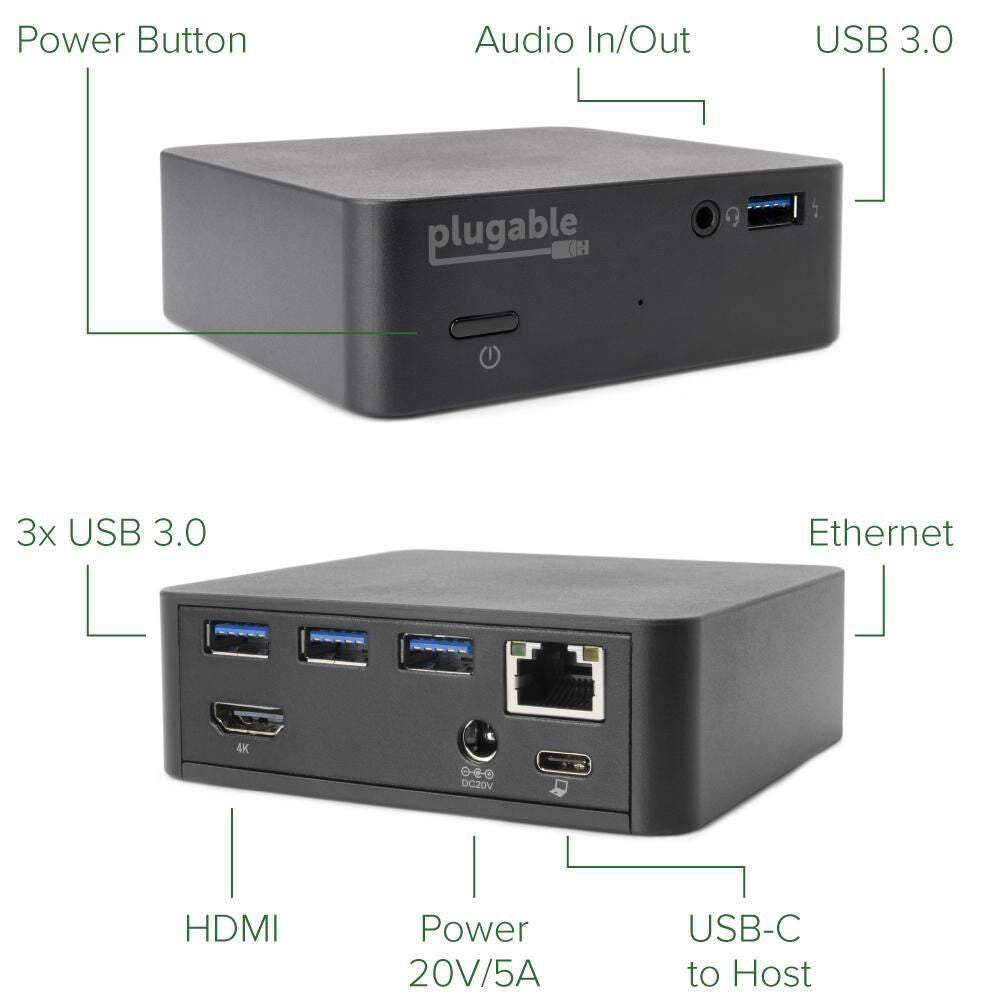

With three rear- and one front-facing USB 3.0 Type-A port, you can connect various resource-demanding peripherals such as external drives with ease. Support an additional display with an HDMI port that delivers up to 3840 x 2160 resolution at 30 Hz for expansive visuals. A Gigabit Ethernet port gives you a hard-wired connection to your network, and a 3.5mm combo audio jack supports headsets with microphones. Experience the full flexibility of this Mini Docking Station whether you are on Windows 10, 8.x, 7, macOS, and Chrome OS when paired with a compatible USB Type-C or Thunderbolt 3 device.
This mini docking station can be powered in two different ways, one of them being via included power adapter or through the USB Type-C input which powers the hub through your notebook
Charge your devices with 85-Watt power delivery, keeping your connected peripherals, smartphones, tablets, and notebooks powered up while you work

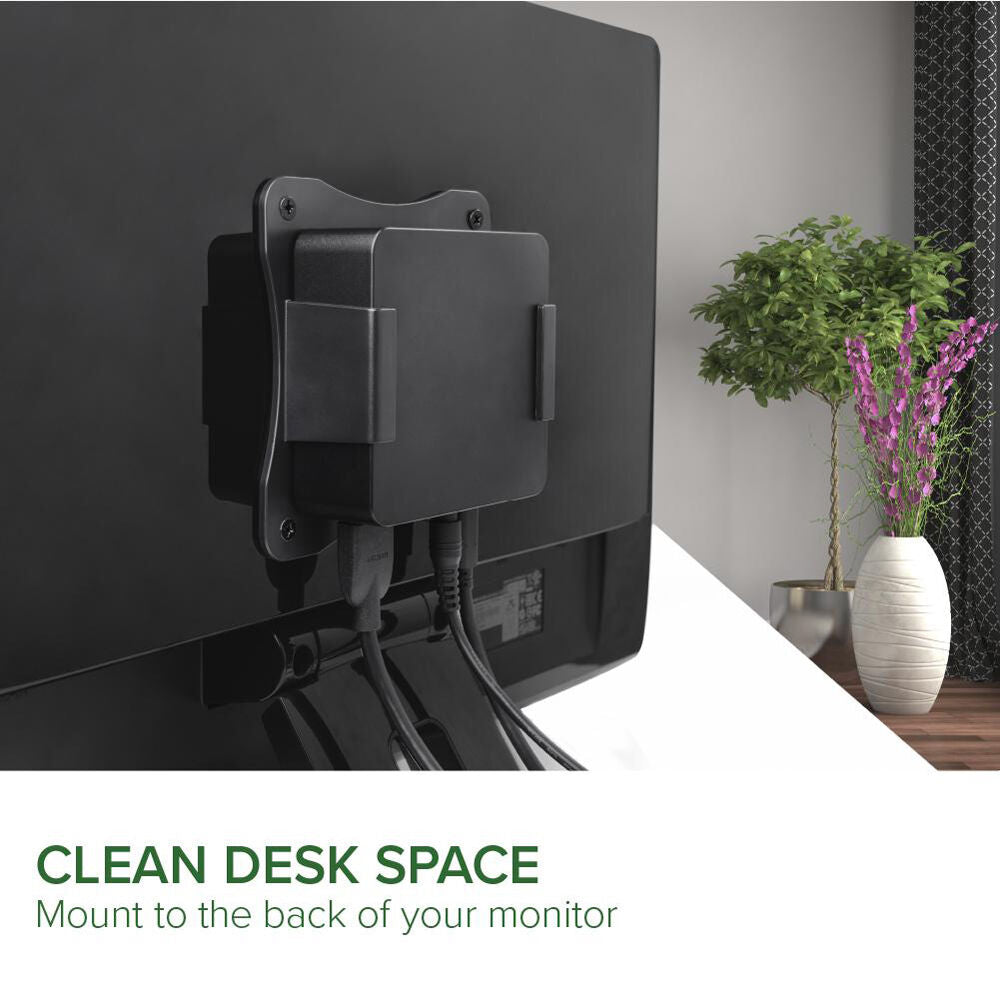

Fasten this Mini Docking Station to various surfaces and the back of your monitor with the included VESA mount and screws
To make the most out of external displays, your host device must support DisplayPort Alternate Mode via USB Type-C port
![]()
UPC: 819927011705

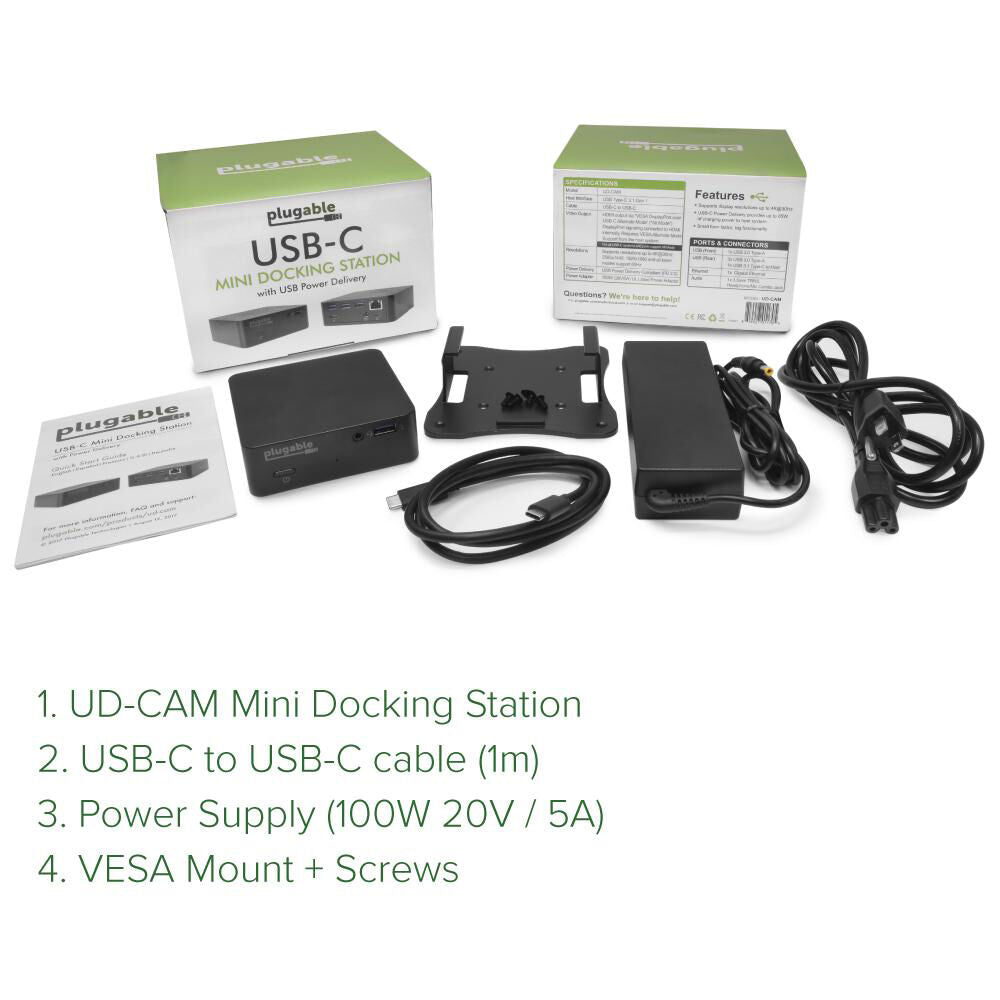

In the Box
- Plugable USB Type-C Mini Docking Station with 85W Power Delivery
- USB Type-C Cable
- Power Adapter
- VESA Mount & Screws
- Limited 2-Year Warranty
Plugable UD-CAM Specs
Connections
| USB |
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 1 Type-C |
| Thunderbolt |
None |
| Ethernet |
1 x RJ45 (10/100/1000 Mb/s) |
| FireWire |
None |
| Display |
1 x HDMI |
| Audio |
1 x 1/8" / 3.5 mm Headphone/Microphone Combo |
| Memory Card Slots |
None |
Host Connections
| System Connection |
1 x USB 3.1 / USB 3.2 Gen 1 Type-C Female |
| Connection Type |
Detachable Cable |
| Interface Max Data Rate |
5 Gb/s |
General
| Number of Displays Supported |
1 |
| Maximum Resolution Supported |
3840 x 2160 at 30 Hz (Single Display) |
| Operating System Support |
ChromeOS, Windows, macOS/OS X |
| UASP Support |
Yes |
| Monitor Stand Support |
No |
Power
| Power Source |
AC Adapter, Bus Powered |
| Power Port |
Barrel Connector (Unspecified Diameter) (Input)
USB Type-C (Input/Output) |
| Maximum Power Consumption |
86 W (Bus Power) |
| Total Current Output |
4.3 A |
Physical
| Cable Length |
3.3' / 1 m |
| Lock Slot |
No |
Packaging Info
| Package Weight |
2.485 lb |
| Box Dimensions (LxWxH) |
7.5 x 6.7 x 4.9" |
