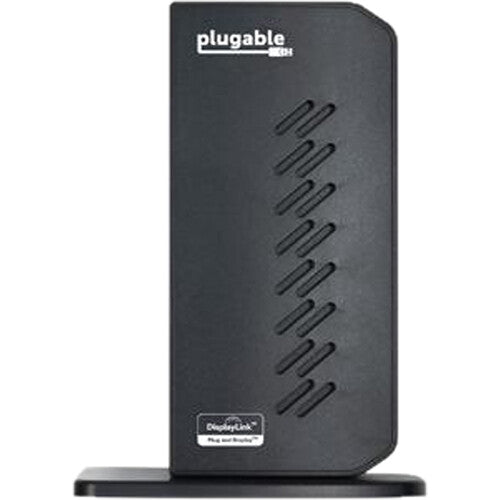

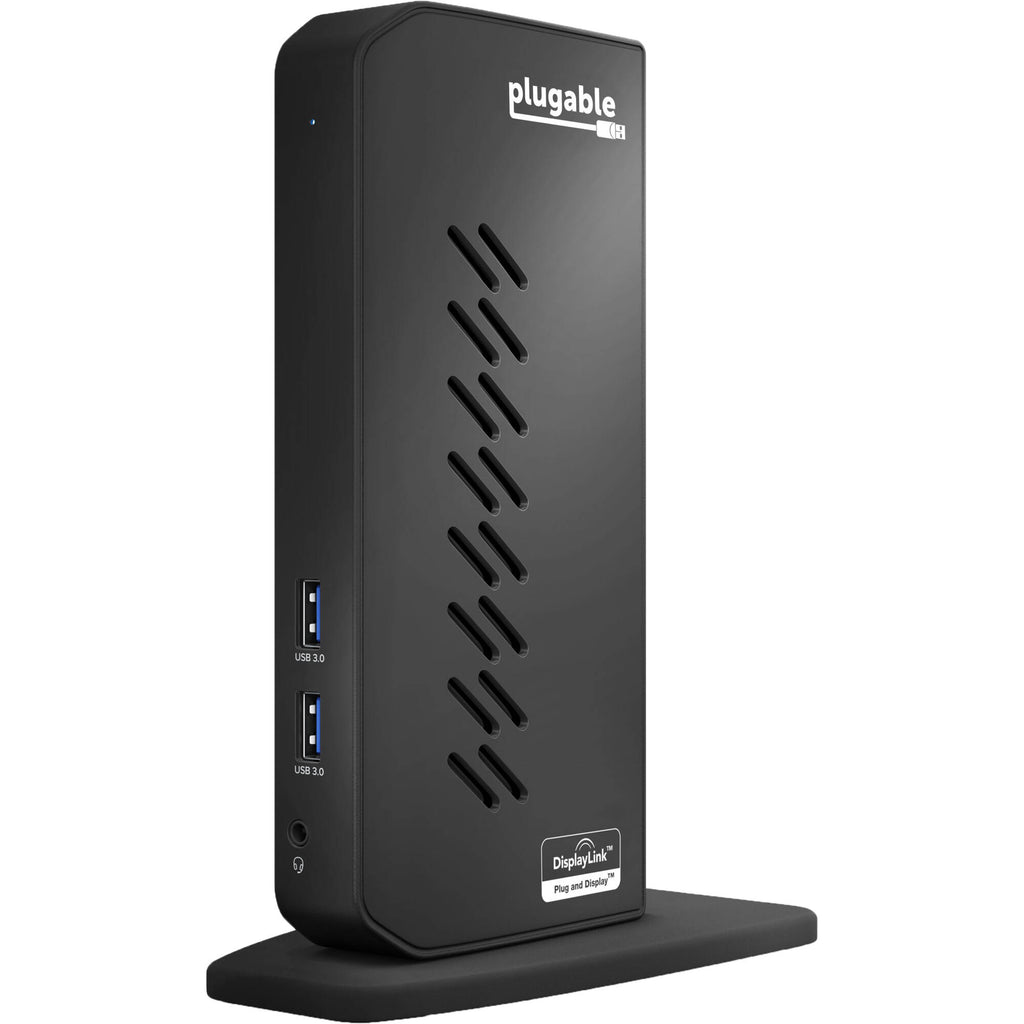

Plugable UD-3900Z Overview

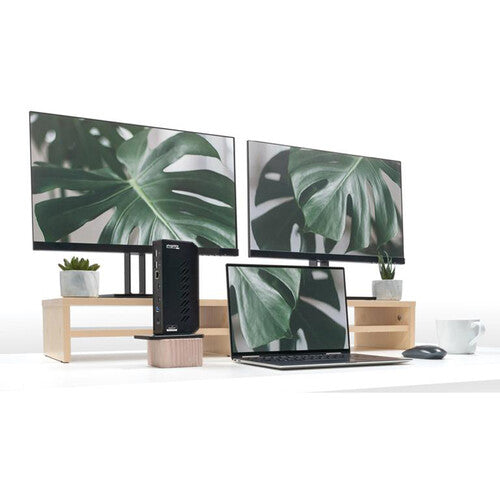

Streamline your workflow with the Universal Dual HDMI Port USB 3.1 Gen 1 Docking Station from Plugable. This docking station includes cables to connect to your computer's USB 3.1 Gen 1 Type-A or Type-C ports to add functionality, which includes HDMI ports that support up to two 1920 x 1200 resolution monitors simultaneously or one screen at 2048 x 1152 resolution. Adding two external screens give you a larger viewing space to enhance your multitasking efficiency. This docking station also includes four USB 2.0 ports alongside two USB 3.1 Gen 1 Type-A ports that can transfer up to 5 Gb/s with compatible peripherals such as flash drives. Connect a pair of headphones to the 3.5mm headphone jack for clarity and privacy while watching videos or listening to music.
USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.

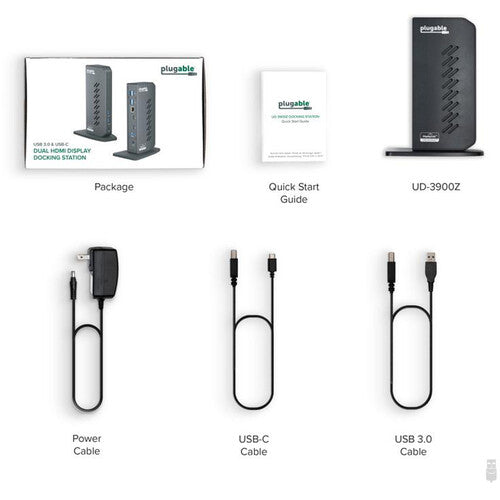

In the Box
- Plugable Universal Dual HDMI Port USB 3.1 Gen 1 Docking Station
- Power Adapter
- USB Type-B to USB Type-A Cable
- USB Type-B to USB Type-C Cable
- Limited 2-Year Manufacturer Warranty
Plugable UD-3900Z Specs

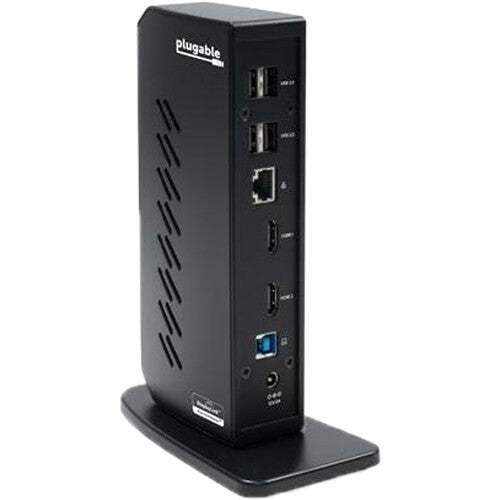

Ports
| USB |
2 x USB-A USB 3.0 / 3.1/3.2 Gen 1
4 x USB-A USB 2.0
1 x USB-B USB 3.0 / 3.1/3.2 Gen 1 |
| Thunderbolt |
None |
| Ethernet |
1 x RJ45 (10/100/1000 Mb/s) |
| Display |
2 x HDMI 1.3 (Female) |
| Audio |
1 x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
| Media Card Reader |
None |
Host Connections
| Host Connection |
USB-A 3.0 / 3.1/3.2 Gen 1 |
| Connection Type |
Detachable Cable |
General
| Number of Displays Supported |
2 |
| Maximum Resolution Supported |
2048 x 1152 at 60 Hz (Single Display)
1920 x 1200 at 60 Hz (Dual Display) |
| OS Compatibility |
Windows
*As of February, 2021: Check with manufacturer for the most up-to-date compatibility |
| UASP Support |
No |
Power
| Power Source |
AC Adapter |
| Power I/O |
Barrel Connector (Unspecified Diameter) |
| Maximum Power Consumption |
24 W |
| DC Input Power |
12 VDC at 2 A |
Physical
| Cable Length |
3' / 0.9 m |
| LED Indicator |
None |
| Lock Slot |
No |
Packaging Info
| Package Weight |
1.695 lb |
| Box Dimensions (LxWxH) |
8.4 x 5.5 x 4.3" |
