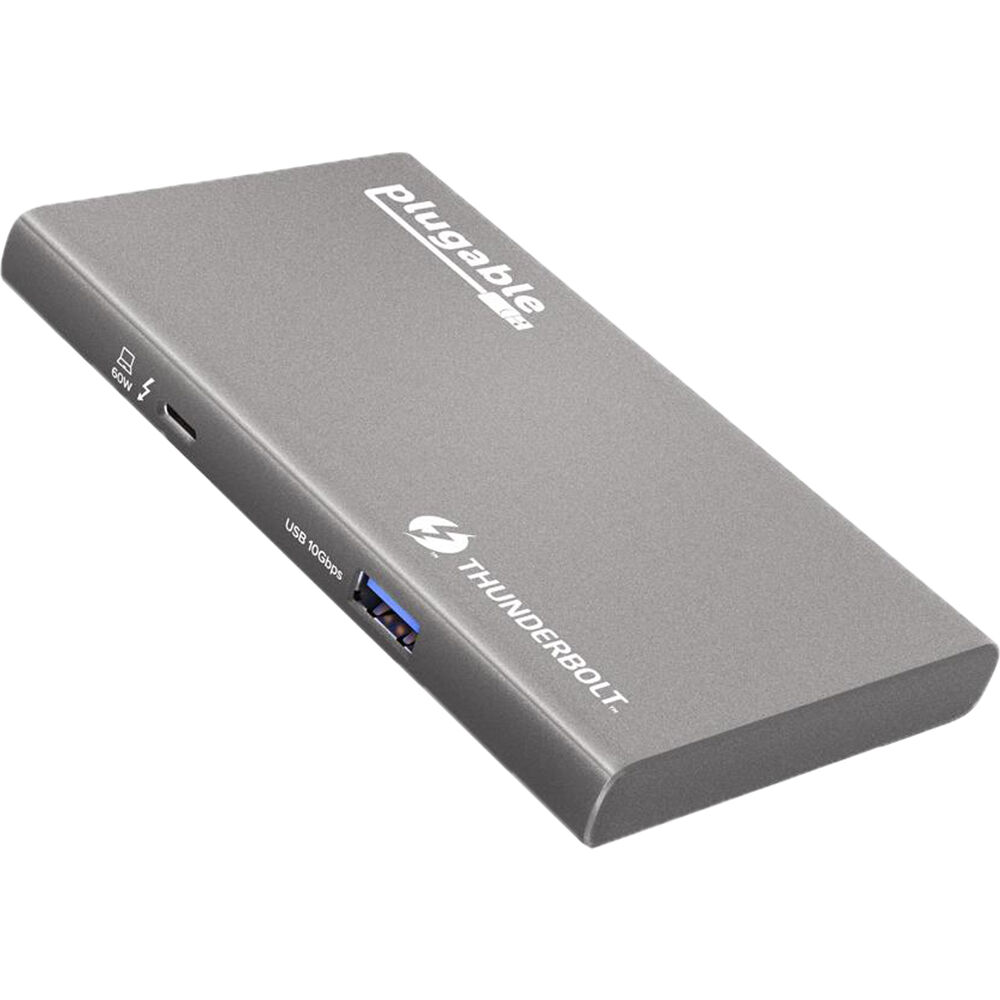

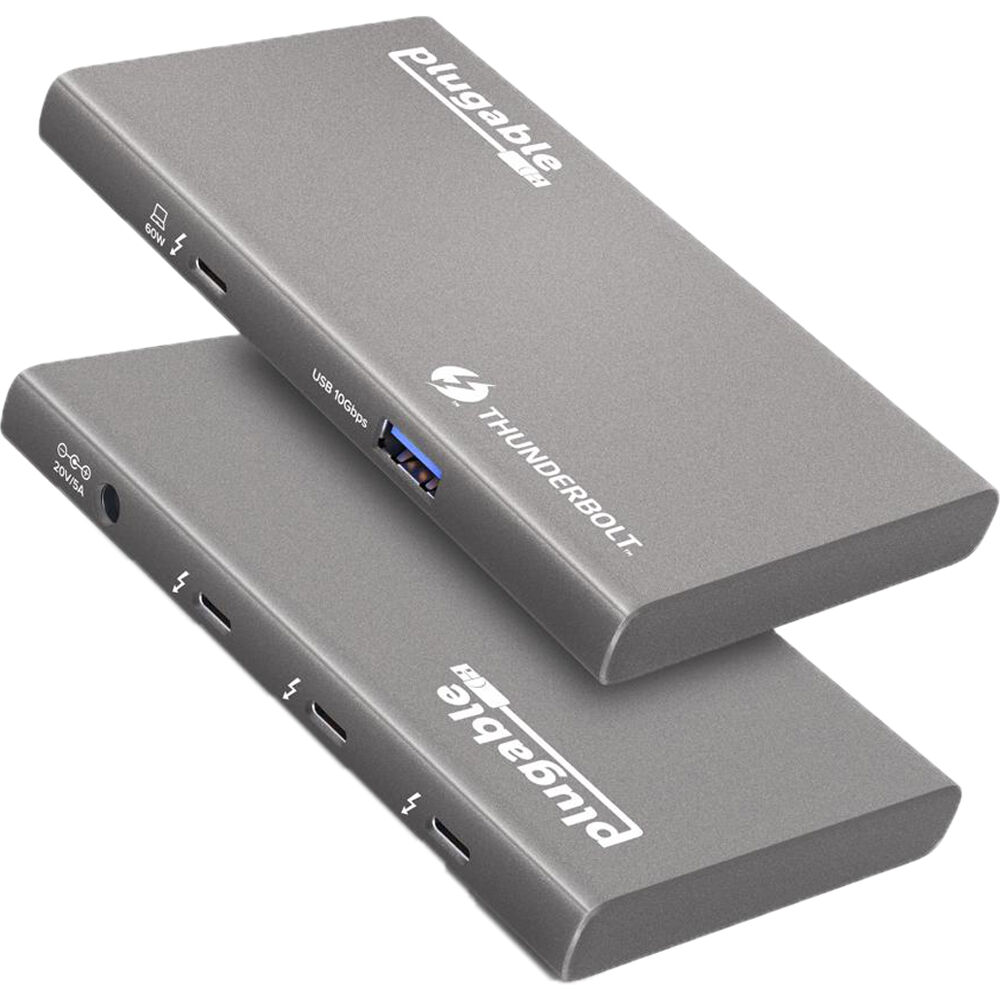

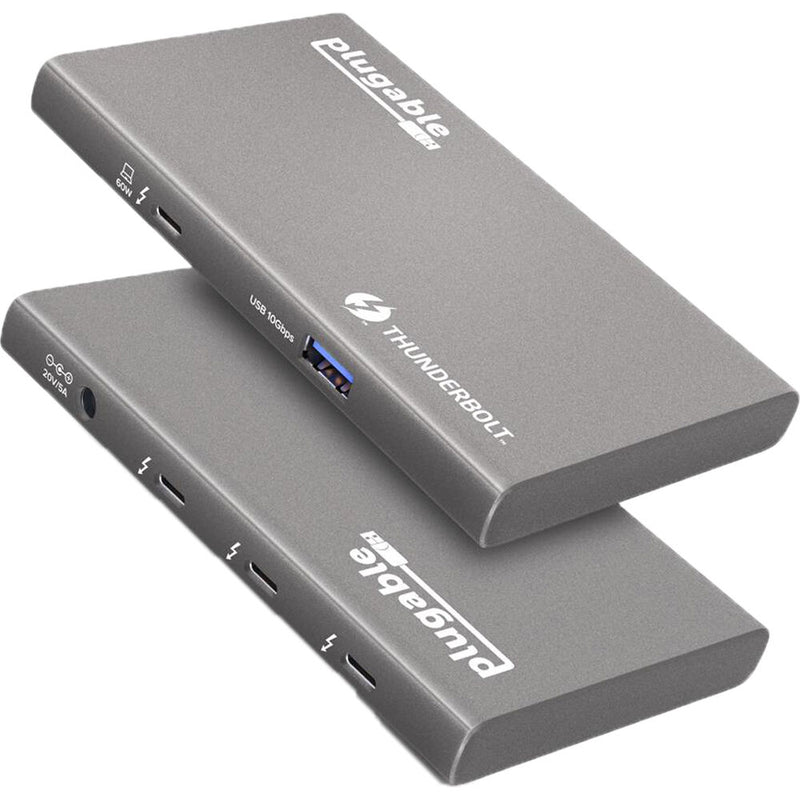

Plugable USB4-HUB3A Overview
-
1Description
-
2Fast and Reliable Wins the Race
-
3Thunderbolt 4 and More
-
4The Beauty of 8K is on Display
-
5Compatability
Expand the utility of your Thunderbolt 4 laptop with the Thunderbolt 4 5-in-1 Hub from Plugable. Ideal professionals who need quick data transfers from multiple devices simultaneously, this hub gives you three additional Thunderbolt 4 ports and a single USB 3.2 Gen 2 Type-A port. This Thunderbolt 4 hub provides transfer speeds up to 40 Gb/s, output support for 8K resolution or two 4K resolution displays. Additionally, Thunderbolt 3, USB Type-C, and USB4 devices are all compatible with this hub, allowing you to use a variety of accessories.
Note:
M1 Macs will only support a single external display with this dock.
Fast and Reliable Wins the Race

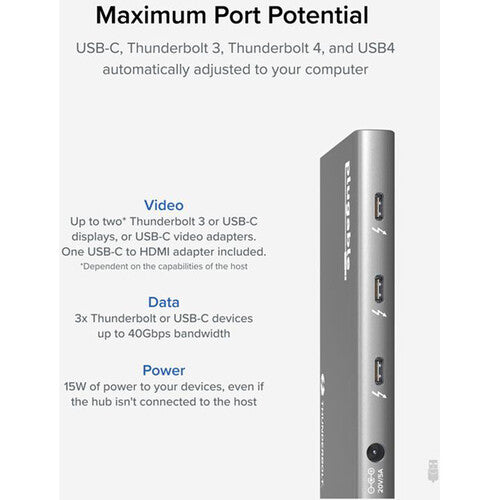

Built around the Goshen Ridge chipset from Intel, the USB4-HUB3A gives you access to everything Thunderbolt 4 has to offer. That means high speed � each port is capable of data transfer speeds up to 40 Gb/s, the maximum rate available through a USB Type-C port. But data isn't the only thing flowing through these ports. Thanks to intelligent power handling, you'll also get up to 15W of charging power for each of your connected devices, evenly distributed across the ports to ensure a balanced load. And because this Thunderbolt 4 dock ships with the latest certified firmware from Intel, you can count on smooth operation.
Because this hub is Thunderbolt certified and built around a Goshen Ridge chipset, your USB Type-C, Thunderbolt 3, Thunderbolt 4, and USB4 devices are supported, too. And don't worry if you're not sure what your system supports � the USB4-HUB3A will detect your computer's capabilities and adjust accordingly.
The Beauty of 8K is on Display

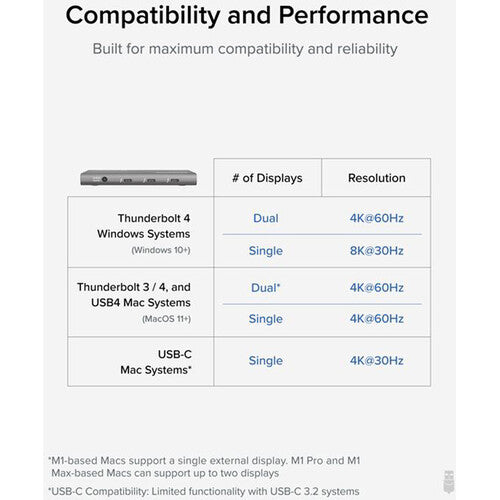

Don't limit yourself to the confines of a little laptop screen. With this multiport hub, connect up to two 4K 60 Hz displays or one 8K 30 Hz display to a USB4 or Thunderbolt 4 PC or a Thunderbolt 3 or USB4 Mac (M1 Macs are limited to one display). It even comes with a USB Type-C to HDMI 2.0 adapter to make connecting that second screen much easier.
Note:
External display support is dependent on host computer's capabilities.
This dock is compatible with USB4 Macs, including M1 and Intel Macs, and Thunderbolt 4 PCs. This dock is not recommended for use with Thunderbolt 3 Windows systems.
In the Box
- Plugable Thunderbolt 4 5-in-1 Hub
- Power Cable and AC Adapter
- Thunderbolt 4 Cable
- USB Type-C to HDMI Adapter
Table of Contents
- Description
- Fast and Reliable Wins the Race
- Thunderbolt 4 and More
- The Beauty of 8K is on Display
- Compatability

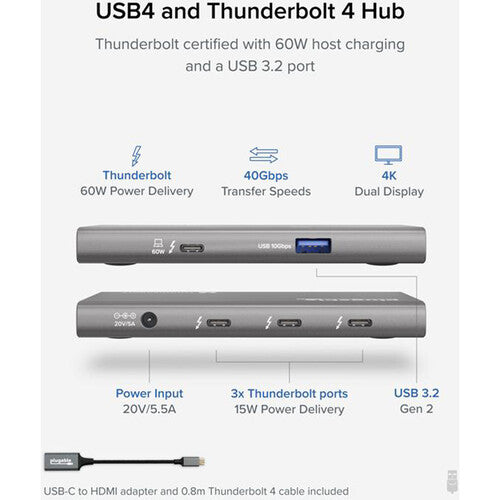

Plugable USB4-HUB3A Specs
Ports
USB |
1 x USB-A USB 3.1/3.2 Gen 2 |
Thunderbolt |
3 x Thunderbolt 4 (15 W) |
Ethernet |
None |
Display |
None |
Media Card Reader |
None |
Host Connections
Host Connection |
USB-C (Thunderbolt 4) |
Connection Type |
Detachable Cable |
Powered Connection |
60 W USB Power Delivery |
General
Chipset |
Intel Goshen Ridge |
Number of Displays Supported |
2 |
Maximum Resolution Supported |
7680 x 4320 at 30 Hz (Single Display) 4096 x 2160 at 60 Hz (Dual Display) |
OS Compatibility |
Windows macOS iPadOS *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
UASP Support |
No |
Power
Power Source |
AC Adapter |
Power I/O |
Barrel Connector (Unspecified Diameter) |
Maximum Power Consumption |
100 W (AC Adapter) |
Total Current Output |
5.5 A |
Physical
Cable Length |
2.6' / 0.8 m |
LED Indicator |
None |
Lock Slot |
No |
Packaging Info
Package Weight |
1.92 lb |
Box Dimensions (LxWxH) |
8.3 x 6.4 x 2.3" |
