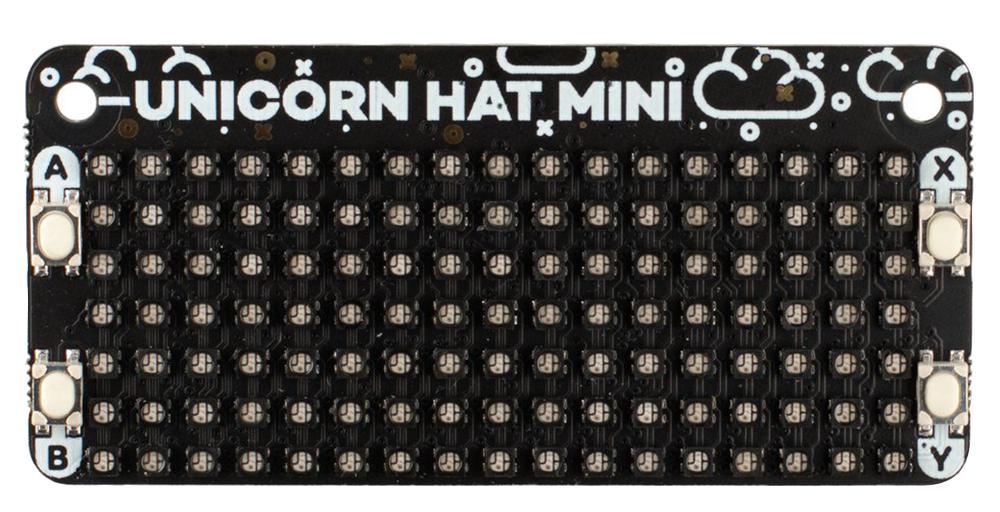

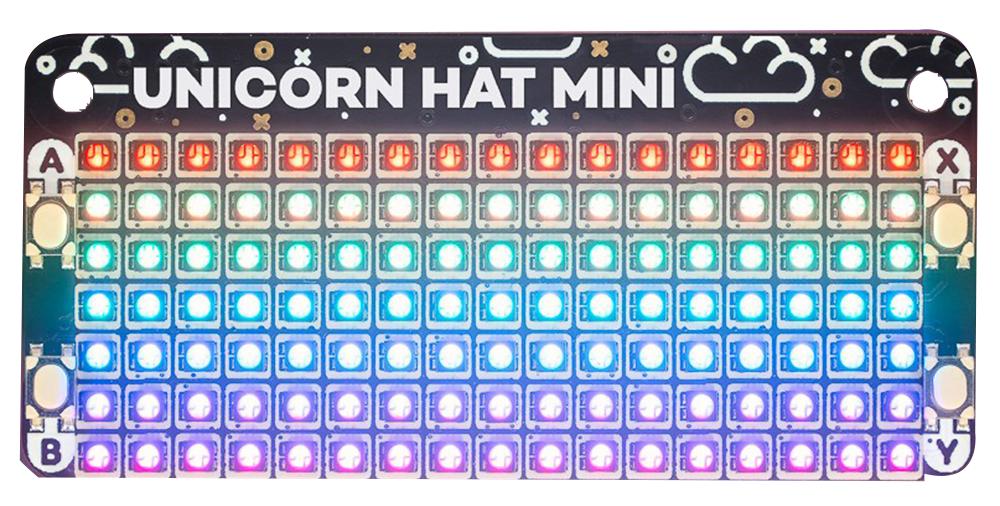

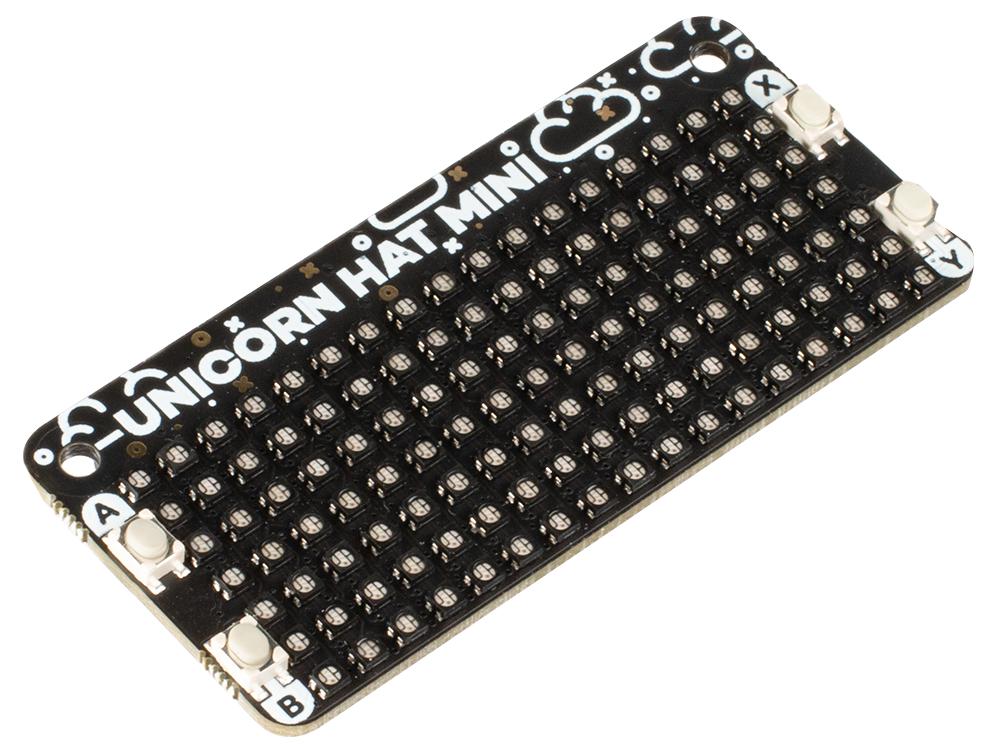

The Unicorn HAT Mini is a RGB matrix that utilises 119 individually controllable LEDs to create a pocket friendly rainbow generator! The Unicorn Mini can be used to display animations, text and even simple images. Four buttons allow you add additional functionality and the header is pre-attached ready for use.
- Pocket sized 17x7 RGB LED matrix with 119 individually controllable LEDs
- Control the colour & brightness of each individual LED
- Holtek HT16D35A LED matrix driver
- Four tactile buttons for additional functionality
- Python software library available
- Mini HAT format board
- Header is pre-attached, no soldering required
- Compatible with all Raspberry Pi models with 40-pin header
- Dimensions (HxWxD): 10x65x30mm
Contents
Board only
Footnotes Note: Uses non-smart RGB LEDs rather than NeoPixel compatible LEDs. Code written for NeoPixel style LEDs will need to be modified to run with the Unicorn HAT Mini.
Product details
| Silicon Manufacturer |
Holtek |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
HT16D35A |
| Silicon Family Name |
- |
| For Use With |
Raspberry Pi |
| Kit Contents |
Unicorn HAT Mini Board |
| Product Range |
- |
Other details
| Brand |
PIMORONI |
| Part Number |
PIM498 |
| Quantity |
Each |
| Manufacturer Product Page EN |
 |
