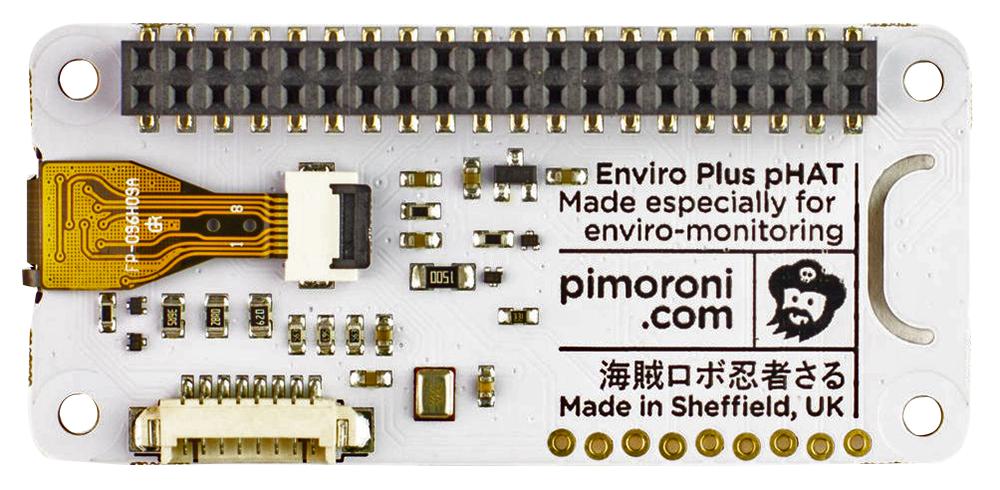

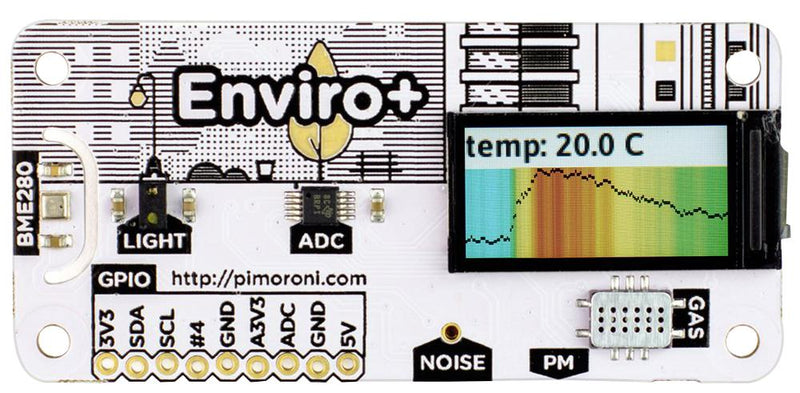

The Enviro + Air Quality board is the perfect solution for monitoring your environment with a Raspberry Pi! Specially designed for monitoring air quality, this board features an analogue gas sensor as well as an integrated connector for an optional matter sensor. The Enviro + Air Quality board is also suitable for indoor applications with temperature, pressure, humidity, light and noise sensors.
- BME280 temperature, pressure, humidity sensor
- LTR-559 light and proximity sensor
- MICS6814 Analogue gas sensor
- ADS1015 Analogue to digital converter
- MEMS microphone
- Integrated connector for an optional Particulate Matter (PM) sensor
- Full colour 0.96" IPS LCD display (160x80)
- Ideal for combining with IoT devices
- Python software library available
- pHAT format board
- Solderless header is pre-attached
- Compatible with all Raspberry Pi models with 40-pin header
- Dimensions (HxWxD): 9x65x30mm
Contents
Board only
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
Raspberry Pi |
| Kit Contents |
Enviro + Air Quality pHAT |
| Product Range |
- |
Other details
| Brand |
PIMORONI |
| Part Number |
PIM458 |
| Quantity |
Each |
| Manufacturer Product Page EN |
 |
