Description

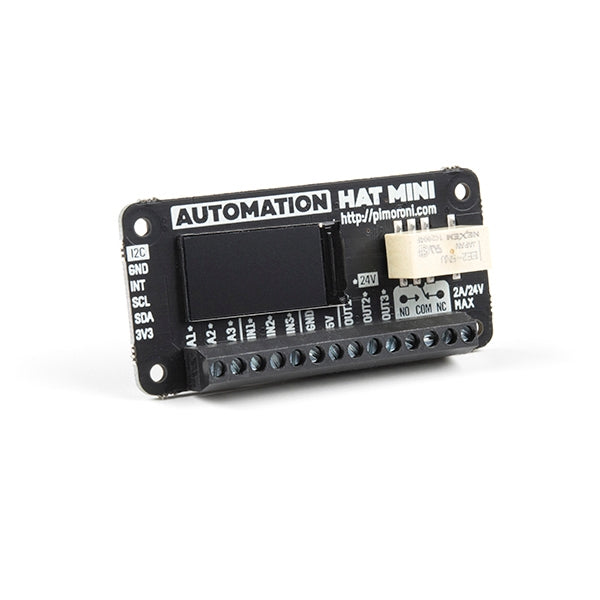

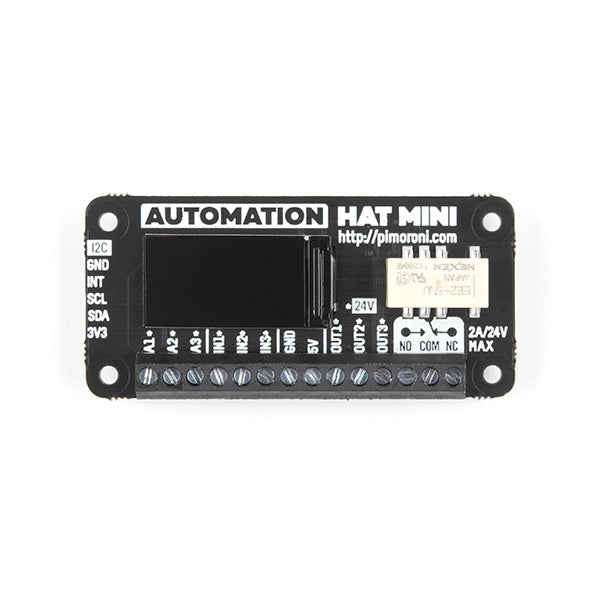

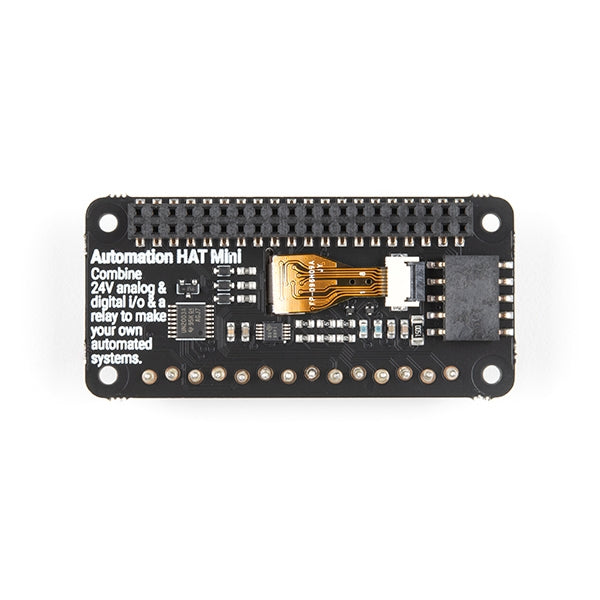

Perfect for home automation projects includes a relay, 3x buffered input & output, 3x analog input (all 24V rated), and a 0.96" full color IPS LCD display.
Features & Specs
- 0.96" color LCD (160x80)
- 1 x 24V @ 2A relay (NC and NO terminals)
- 3 x 12-bit ADC @ 0-24V (ADS1015) (±2% accuracy)
- 3 x 24V tolerant buffered inputs
- 3 x 24V tolerant sinking outputs
- 3.5mm screw terminals
- Pimoroni breakout-compatible pin header
- Mini HAT-format board
- Fully-assembled (no soldering required)
- Compatible with all 40-pin header Raspberry Pi models

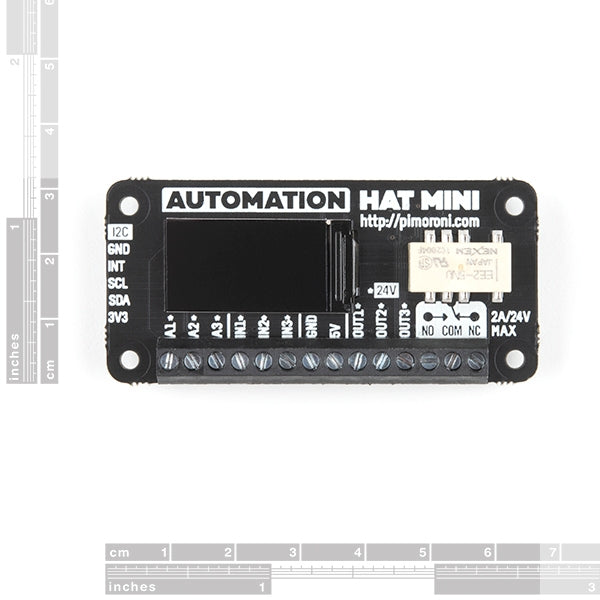

- Dimensions: 65mm x 30mm x 16.8mm
Features & Specs
- 0.96" color LCD (160x80)
- 1 x 24V @ 2A relay (NC and NO terminals)
- 3 x 12-bit ADC @ 0-24V (ADS1015) (±2% accuracy)
- 3 x 24V tolerant buffered inputs
- 3 x 24V tolerant sinking outputs
- 3.5mm screw terminals
- Pimoroni breakout-compatible pin header
- Mini HAT-format board
- Fully-assembled (no soldering required)
- Compatible with all 40-pin header Raspberry Pi models
- Dimensions: 65mm x 30mm x 16.8mm
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4067.0 |
| 3-5 | ₹ 4025.5 |
| 5-10 | ₹ 3942.5 |
| 10+ | ₹ 3859.5 |
Bulk discount will be automatically applied during checkout based on quantity.
