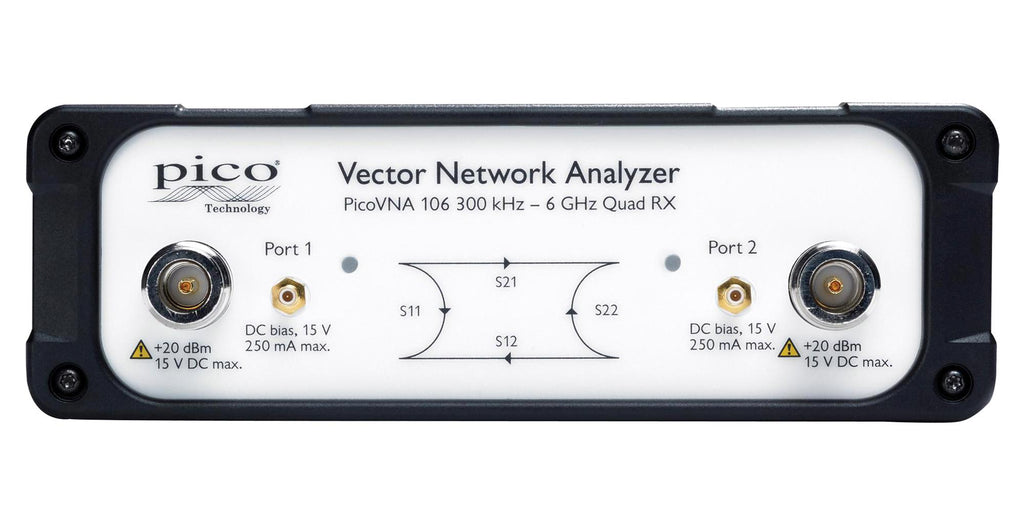

- Professional USB-controlled, laboratory grade 6GHz vector network analyser
- 300 KHz to 6 GHz operation
- High speed of > 5000 dual port S-parameters per second
- Quad RX four-receiver architecture for best accuracy
- 118dB dynamic range at 10Hz bandwidth
- 0.005dB RMS trace noise at maximum bandwidth of 140KHz
- Half-rack, small-footprint, lightweight package
- PC-controlled over USB from a Microsoft Windows interface
- Reference plane offsetting and de-embedding, time domain and port impedance transformations
- Tabular and graphic print and save formats
Product details
| Vector Network Analyzer Type |
PC Based |
| Test Frequency Range |
300kHz to 6GHz |
| Sensitivity dBm |
- |
| Manufacturer Warranty |
3 Years |
| Product Range |
- |
| Plug Type |
- |
Other details
| Brand |
PICO TECHNOLOGY |
| Part Number |
PICOVNA 106 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
