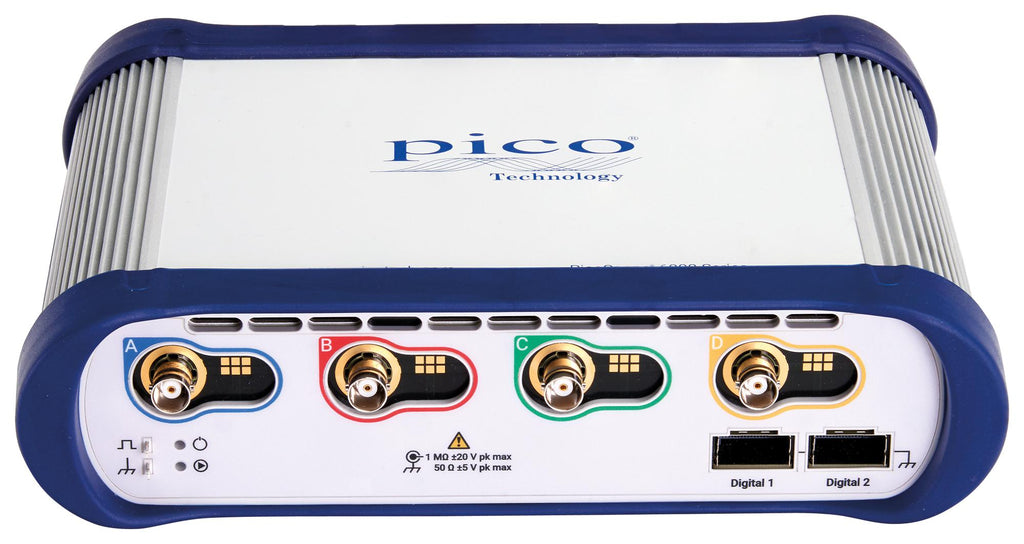

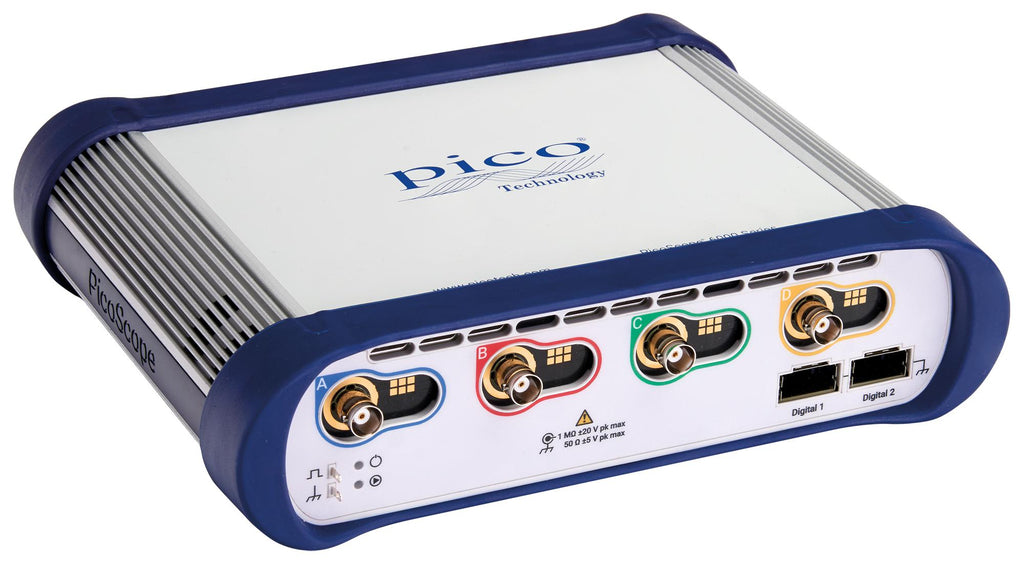

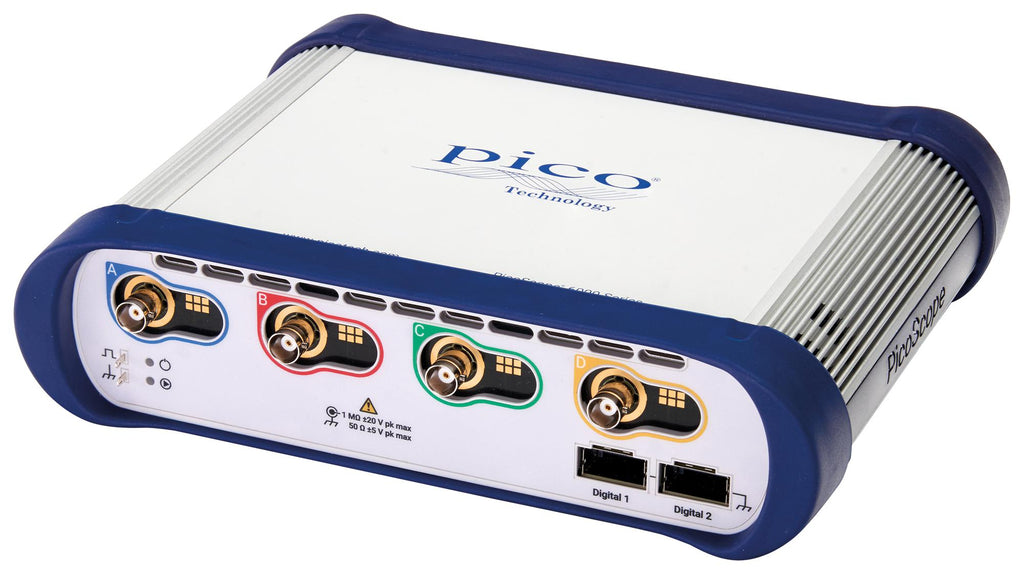

Pico Technology PICOSCOPE 6425E PICOSCOPE 6425E PC USB Oscilloscope Picoscope 6000E 4 Channel 750 MHz 5 Gsps Gpts 475 ps

PicoScope 6425E is a PicoScope 6000E Series FlexRes oscilloscopes provide 8 to 12 bits of vertical resolution, with up to 750MHz bandwidth and 5GS/s sampling rate. Models with four analogue channels have the timing and amplitude resolution you need to reveal critical signal integrity issues such as timing errors, glitches, dropouts, crosstalk and metastability issues. This oscilloscope is ideal for design engineers working with high-performance embedded systems, signal processing, power electronics, mechatronics and automotive designs, and for researchers and scientists working on multi-channel high-performance experiments in physics labs, particle accelerators and similar facilities.

• Supports up to 16 digital MSO channels
• 200ms capture time at 5GS/s
• Up to 4GS capture memory
• 300000 waveforms per second update rate
• PicoScope, PicoLog® and PicoSDK® software included
• 21 serial protocol decoder / analysers included
• Mask limit testing and user-definable alarms
• High-resolution time-stamping of waveforms
• Over ten million DeepMeasureâ�¢ results per acquisition
• Advanced triggers: edge, window, pulse width, window pulse width, dropout, interval, runt and logic

Contents

PicoScope 6000E Series PC oscilloscope, P2056 500 MHz 10:1 passive probes (4), P2036 300 MHz 10:1 passive probes (4), User's Guide, 12V power adaptor, universal input, Localized IEC mains lead, USB cable, 1.8m, Storage/carry case.

Other details

Brand	PICO TECHNOLOGY
Part Number	PICOSCOPE 6425E
Quantity	Each
Technical Data Sheet EN
