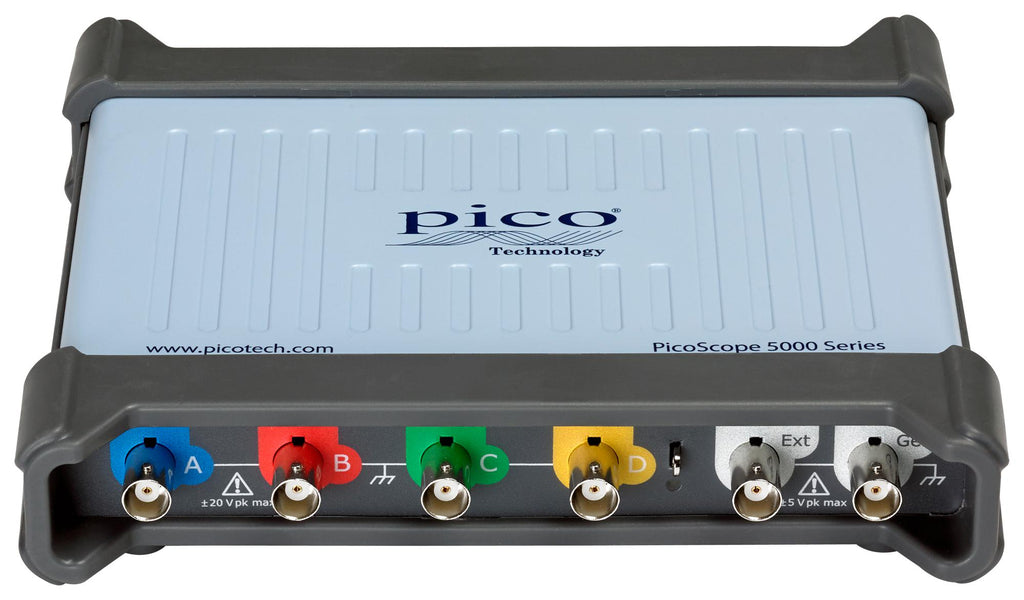

PicoScope® 5000 Series FlexRes® oscilloscopes supported by PicoScope 6 software for use at design, research, test, education, service and repair.
- FlexRes 8 to 16bit hardware resolution
- Front panel save and recall buttons
- Up to 512MS capture memory
- 130,000 waveforms per second
- Mask limit testing
- Serial decoding as standard (18 protocols) and advanced triggering
- Automatic measurements, math channels, XY mode and segmented memory
- USB 3.0 connection for continuous high-speed data streaming
Applications
Test & Measurement
Contents
Oscilloscope, 1.8m TA155 Pico blue USB 3 cable, TA386 probes, PS011 5V 3A PSU, Quick start guide.
Footnotes Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Product details
| Product Range |
PicoScope 5000D Series |
| Scope Channels |
4 Channel |
| Bandwidth |
200MHz |
| Sampling Rate |
1GSPS |
| Display Memory Depth |
512 Mpts |
| Calculated Rise Time |
1.75ns |
| Kit Contents |
PicoScope 5244D, TA386 One 200 MHz Passive Probe Per Channel 1:1, 10:1 Switchable, BNC, MI106 USB2 Cable, 1.8m, TA146 USB2 Double Headed Cable, PS011 AC Power Adaptor 5V, Quick Start Guide |
| Manufacturer Warranty |
5 Years |
| Plug Type |
USB |
Other details
| Brand |
PICO TECHNOLOGY |
| Part Number |
PICOSCOPE 5444D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
