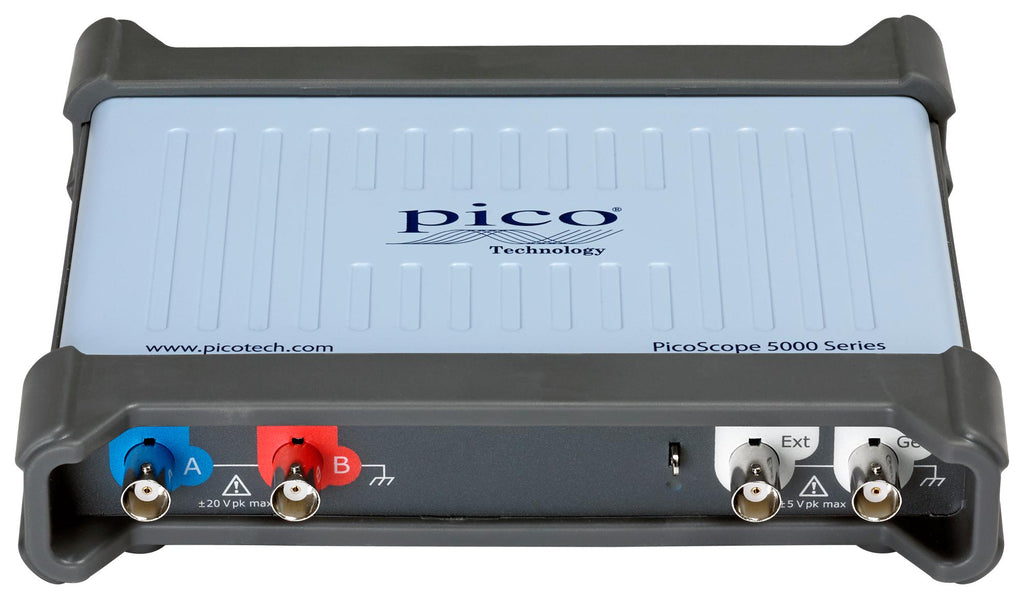

PicoScope® 5000 Series FlexRes® oscilloscopes supported by PicoScope 6 software for use at design, research, test, education, service and repair.
- FlexRes 8 to 16bit hardware resolution
- 1GS/s, 500MS/s and 62.5MS/s sampling at 8, 12 and 16bit resolution
- Up to 512MS capture memory
- 130,000 waveforms per second
- Mask limit testing, serial decoding as standard (18 protocols) and advanced triggering
- Automatic measurements, math channels, XY mode and segmented memory
- USB 3.0 connection for continuous high-speed data streaming
Applications
Test & Measurement
Contents
Oscilloscope, 1.8m TA155 Pico blue USB 3 cable, TA375 probes, Quick start guide.
Product details
| Product Range |
PicoScope 5000D Series |
| Scope Channels |
2 Channel |
| Bandwidth |
60MHz |
| Sampling Rate |
1GSPS |
| Display Memory Depth |
512 Mpts |
| Calculated Rise Time |
5.8ns |
| Kit Contents |
PicoScope 5242D, TA375 One 100 MHz Passive Probe Per Channel 1:1, 10:1 Switchable, BNC, MI106 USB2 Cable, 1.8m, TA146 USB2 Double Headed Cable,PS011 AC Power Adaptor 5V, Quick Start Guide |
| Manufacturer Warranty |
5 Years |
| Plug Type |
USB |
Other details
| Brand |
PICO TECHNOLOGY |
| Part Number |
PICOSCOPE 5242D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
