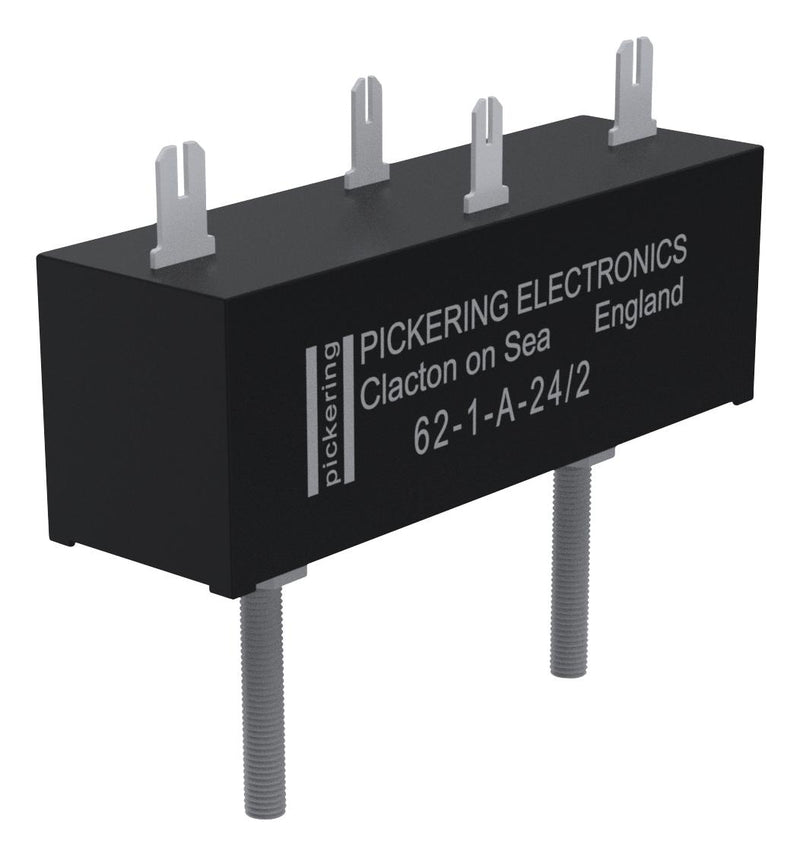

62-1-A-24/1 is a 62 series high voltage dry reed relay. It has chassis mounting with push-on HV connections on the top face. This high voltage reed relay features a push-on terminals and are supplied with the appropriate connectors and insulating boots.
- Tungsten plated contacts ensure a long and reliable life
- Coil voltage is 24V, coil resistance is 500 ohm
- Maximum contact resistance is 0.12 ohm
- Power rating is 50W, maximum switch current is 3A
- Maximum carry current is 3.5A
- Maximum switching voltage is 3500VDC, maximum stand-off voltage is 5000VDC
- Life expectancy is 10�
- Operating temperature range is -20°C to +85°C
Footnotes High voltages, and stray capacitance can generate very high current pulses, which can damage the contact plating causing welding of the reed switch.
Other details
| Brand |
PICKERING |
| Part Number |
62-1-A-24/1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
