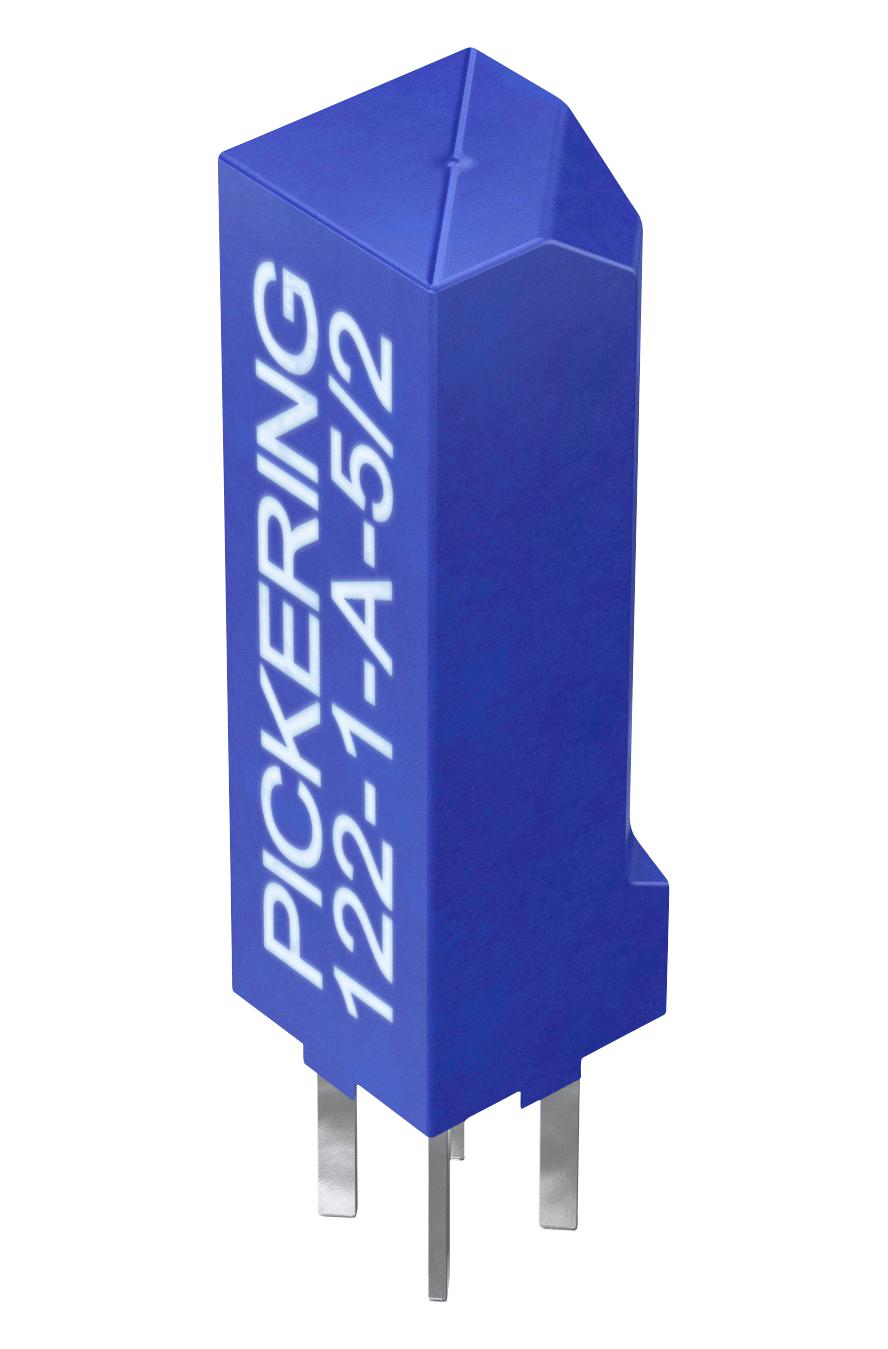

122-1-A-5/2 is a 122 series single pole 4mm²� reed relay. It has plastic package with internal mu-metal magnetic screen. It is fast and makes release time ideal for high speed test systems, A.T.E. switching matrices or multiplexers.
- Sputtered ruthenium instrumentation grade switch
- Operating temperature range is -20°C to +85°C
- Coil voltage is 5V, coil resistance is 350 ohm
- Maximum contact resistance is 0.18R
- Maximum operating voltage at 25°C is 3.75V
- Minimum operating voltage at 25°C is 0.5V
- Power rating is 10W, maximum switch current is 0.5A
- Maximum switching voltage is 200V
- Life expectancy is 10�
- No internal diode is added
Other details
| Brand |
PICKERING |
| Part Number |
122-1-A-5/2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
