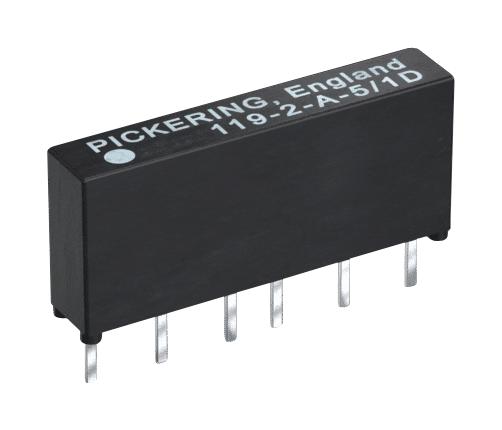

119-2-A-5/1D is a 119 series high voltage Micro-SIL/SIP reed relay. It is a highest quality instrumentation grade vacuum reed switch. It has internal mu-metal magnetic screen which allows high packing density. This relay is suitable for many applications including mixed signal semiconductor testers, high-end cable testers, backplane testers, medical electronics, electric vehicles, solar energy and high voltage instrumentation.
- 100% tested for dynamic contact resistance
- 2 Form A configuration, comes with internal diode
- Coil voltage is 5V
- Coil resistance range is 100 ohm, maximum contact resistance is 0.17 ohm
- Maximum operating voltage is 3.75V at 25°C
- Minimum operating voltage is 0.5V at 25°C
- Power rating is 10W, operating temperature range is -20°C to +85°C
- Maximum switch current is 0.7A
- Minimum stand-off voltage is 1500V
- Life expectancy is 10�
Other details
| Brand |
PICKERING |
| Part Number |
119-2-A-5/1D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
