| ₹ 2928.47 includes GST and import duties. | |
| B2B customers can avail ₹ 446.59 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

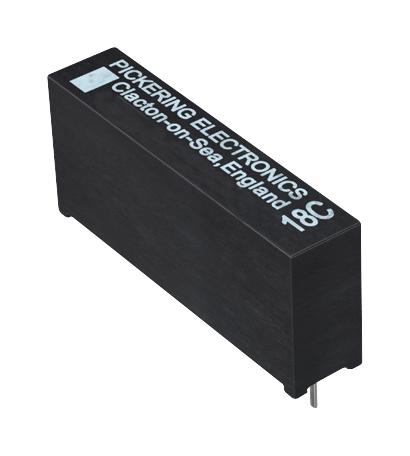

119-1-A-12/3D is a 119 series high voltage Micro-SIL/SIP reed relay. It is a highest quality instrumentation grade vacuum reed switch. It has internal mu-metal magnetic screen which allows high packing density. This relay is suitable for many applications including mixed signal semiconductor testers, high-end cable testers, backplane testers, medical electronics, electric vehicles, solar energy and high voltage instrumentation.
- 100% tested for dynamic contact resistance
- 1 Form A configuration, comes with internal diode
- Coil voltage is 12V
- Coil resistance range is 400 ohm, maximum contact resistance is 0.17 ohm
- Maximum operating voltage is 9V at 25°C
- Minimum operating voltage is 1.2V at 25°C
- Power rating is 10W, operating temperature range is -20°C to +85°C
- Maximum switch current is 0.7A
- Minimum stand-off voltage is 3000V
- Life expectancy is 10?
Product details
Other details
| Brand | PICKERING |
| Part Number | 119-1-A-12/3D |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2869.9 |
| 3-5 | ₹ 2840.62 |
| 5-10 | ₹ 2782.05 |
| 10+ | ₹ 2723.48 |
Bulk discount will be automatically applied during checkout based on quantity.
