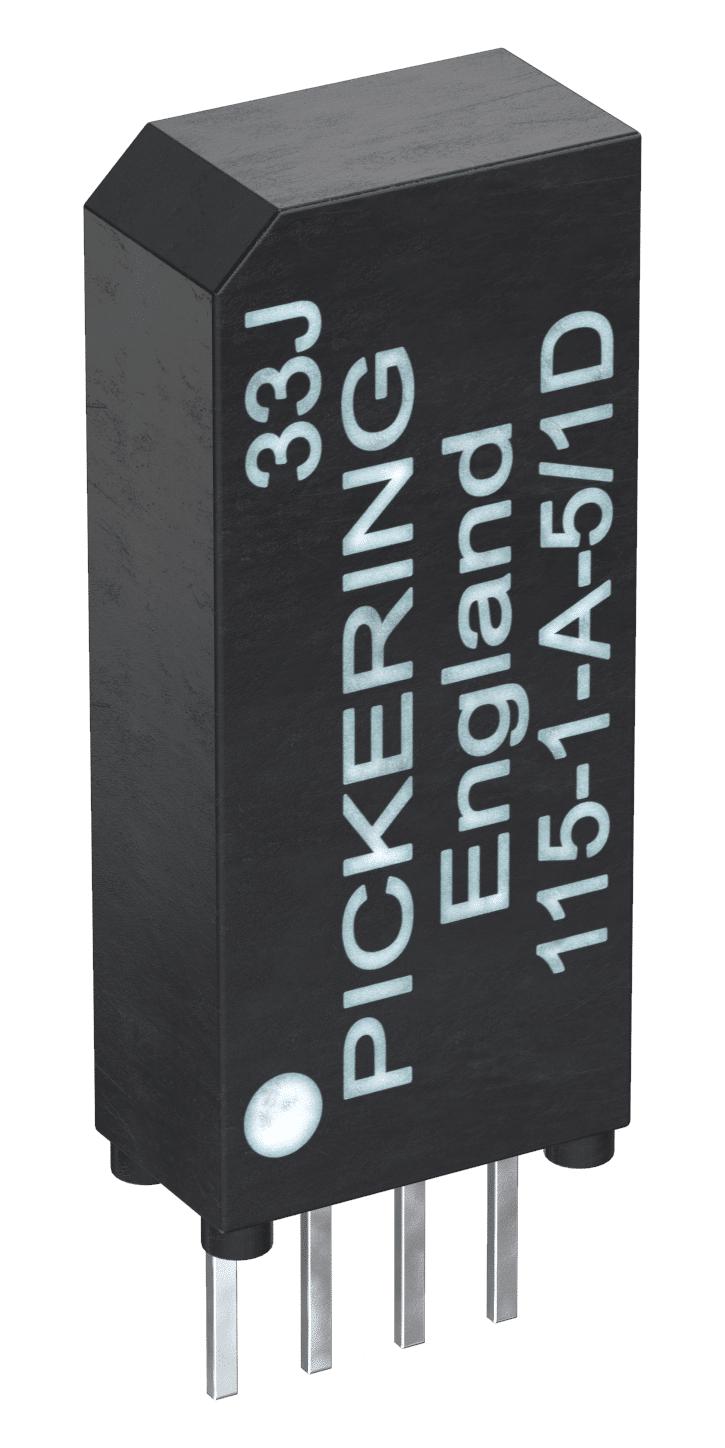

115-1-A-5/1D is a 115 series general purpose single-in-line SIL/SIP reed relay. It has a plastic package with internal mu-metal magnetic screen. This mu-metal has the advantage of a high permeability and low magnetic remanence and eliminates problems that occur due to magnetic interaction. this relay is suitable for high density instrumentation applications such as A.T.E. switching matrices or multiplexers.
- Highest quality instrumentation grade switch
- SPST stacks on 3.81mm x 6.8mm pitch
- Coil voltage is 5V, coil resistance is 500 ohm, maximum contact resistance is 0.12 ohm
- 1 Form A configuration, comes with internal diode
- Maximum operating voltage is 3.75V, minimum operating voltage is 0.5V
- Power rating is 20W, maximum switch current is 1.0A
- Maximum switching voltage is 200V
- Life expectancy is 10�
- Operating temperature range is -20°C to +85°C
Other details
| Brand |
PICKERING |
| Part Number |
115-1-A-5/1D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
