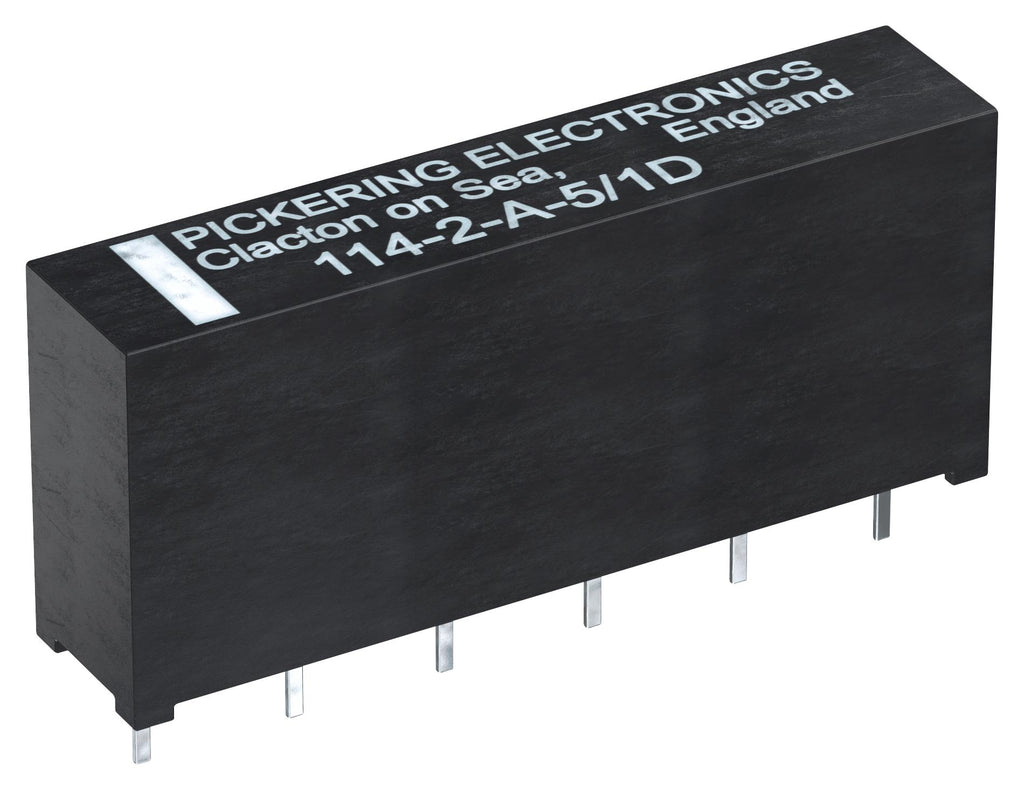

114-2-A-5/1D is a 114 series general purpose high power SIL/SIP dry reed relay. This relay has sputtered ruthenium contacts with electroplated rhodium or tungsten types. This relay makes them suitable for low level or "dry" switching. It has internal mu-metal magnetic screen which is used to minimize magnetic interaction.
- Small size, 2 Form A configuration, comes with internal diode
- Highest quality instrumentation grade switch
- Coil voltage is 5V
- Coil resistance is 150 ohm
- Maximum contact resistance is 0.25 ohm
- Maximum operating voltage is 3.75V, minimum operating voltage is 0.5V
- Power rating is 40W, life expectancy is 10�
- Maximum switch current is 1.0A
- Maximum switching voltage is 200VDC & 240VAC RMS
- Operating temperature range is -20°C to +85°C
Other details
| Brand |
PICKERING |
| Part Number |
114-2-A-5/1D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
