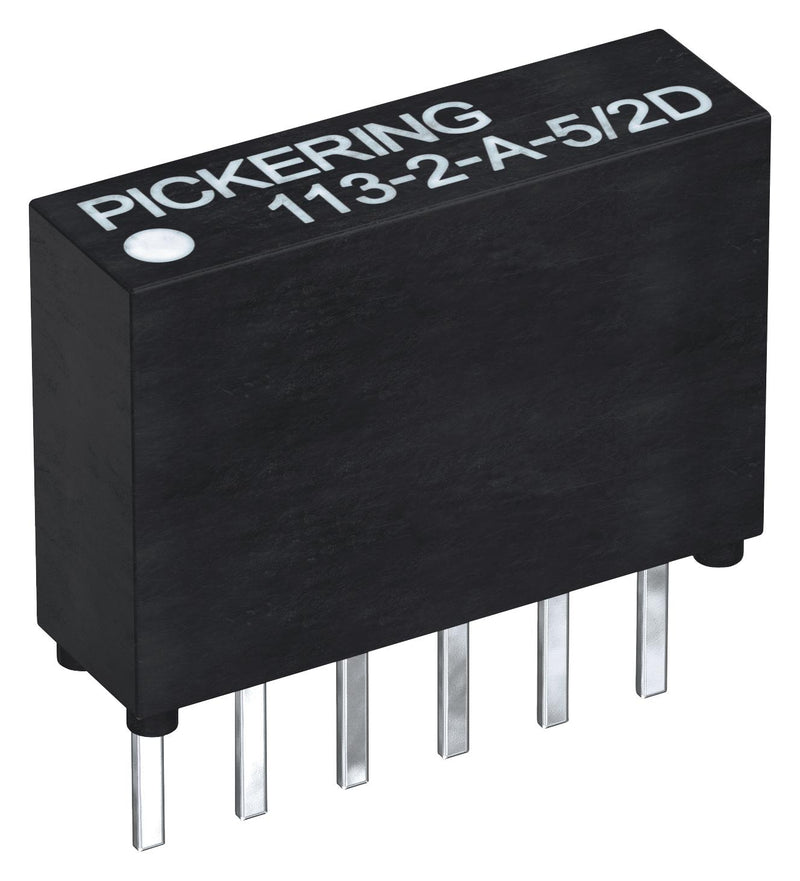

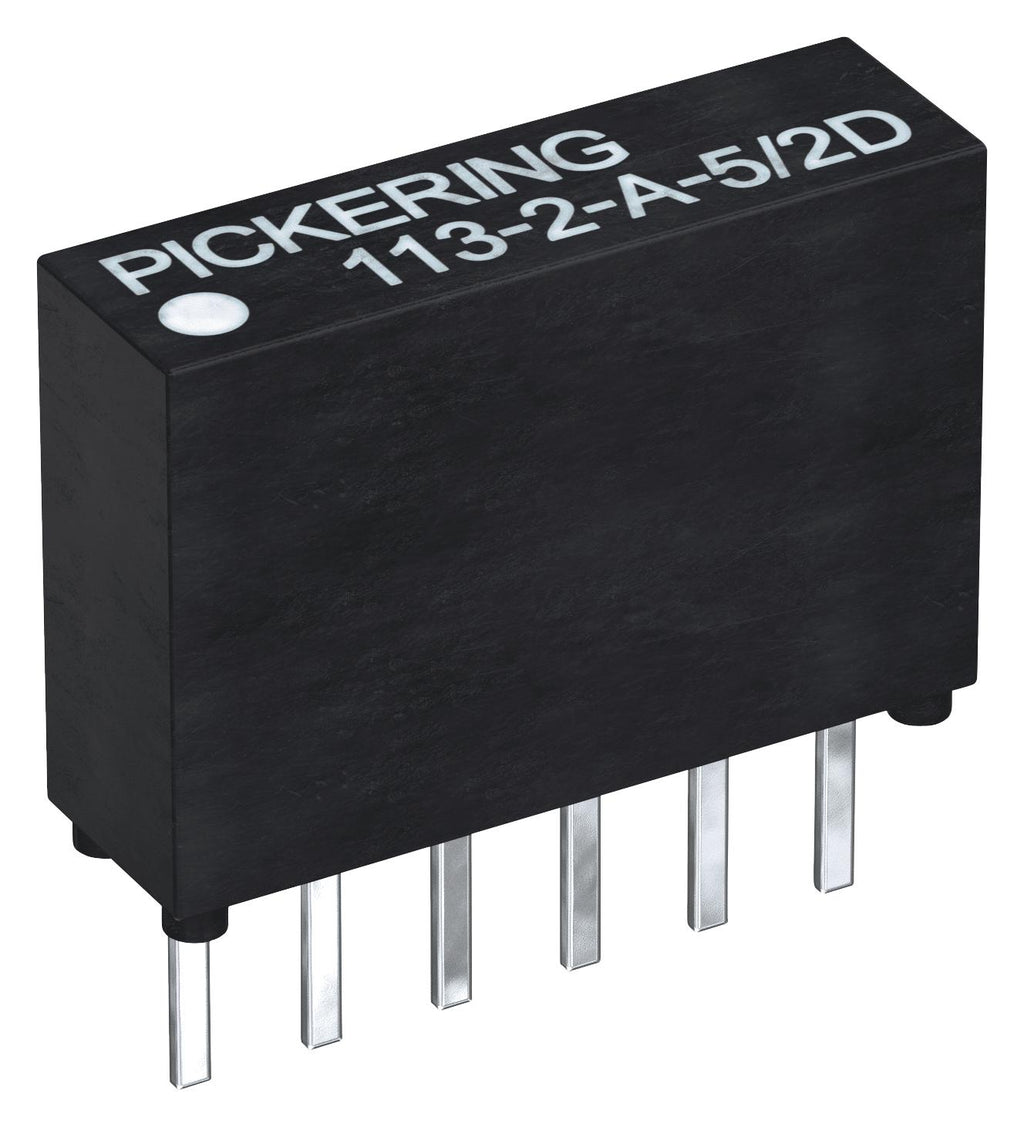

113-2-A-5/2D is a 113 series single-in-line SIL/SIP reed relay. It is a highest quality instrumentation grade switch. It has a plastic package with internal mu-metal magnetic screen. An internal mu-metal screen totally eliminates the risk of magnetic interaction problems. This relay brings very high resistivity resin to achieve an insulation resistance greater than 10Ù¨12ohm for the Form A types.
- High packing density stacking on 3.81mm x 12.7mm pitch
- Form A versions have sputtered ruthenium contacts, ideal for automatic test equipment
- Coil voltage is 5V
- Coil resistance is 150 ohm
- Maximum contact resistance is 0.17ohm
- Maximum operating voltage is 3.75V, minimum operating voltage is 0.5V
- Power rating is 10W, maximum switch current is 0.5A
- Maximum switching volt is 200V
- Life expectancy is 10�, internal diode is included
- Operating temperature range is -20°C to +85°C
Other details
| Brand |
PICKERING |
| Part Number |
113-2-A-5/2D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
