| ₹ 1464.44 includes GST and import duties. | |
| B2B customers can avail ₹ 223.33 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

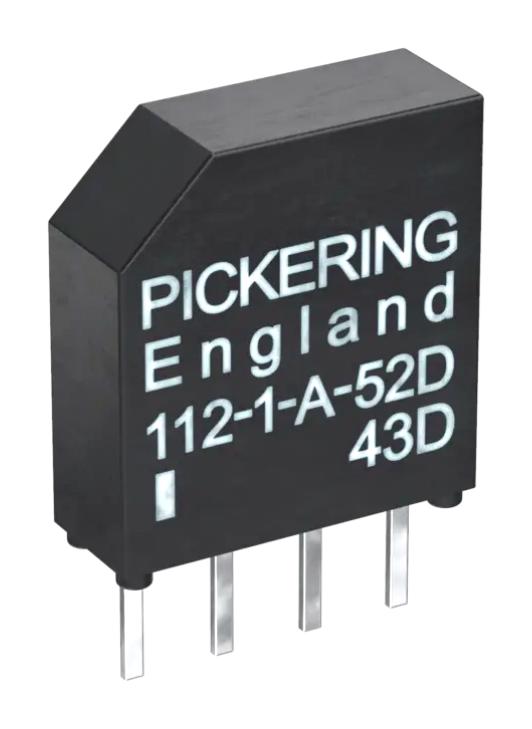

112-1-A-5/2 is a 112 series general purpose single-in-line SIL/SIP reed relay. It is a highest quality sputtered ruthenium instrumentation grade reed switch. It has plastic package with internal mu-metal magnetic screen the internal mu-metal screen totally eliminates the risk of magnetic interaction problems.
- Ideal for high density card based systems and automatic test equipment
- Take up the minimum of board area, conserving board space
- 100% tested for dynamic contact resistance
- Fast operate times with minimal contact bounce result in less electrical noise
- Coil voltage is 5V, coil resistance is 500 ohm
- Maximum contact resistance is 0.12 ohm
- Maximum operating voltage is 3.75V, minimum operating voltage is 0.5V
- 1 Form A configuration
- Maximum switch current is 0.5A, maximum switching volts is 200V
- Power rating is 10W, life expectancy is 10?, operating temperature range is -20°C to +85°C
Product details
Other details
| Brand | PICKERING |
| Part Number | 112-1-A-5/2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1435.15 |
| 3-5 | ₹ 1420.51 |
| 5-10 | ₹ 1391.22 |
| 10+ | ₹ 1361.93 |
Bulk discount will be automatically applied during checkout based on quantity.
