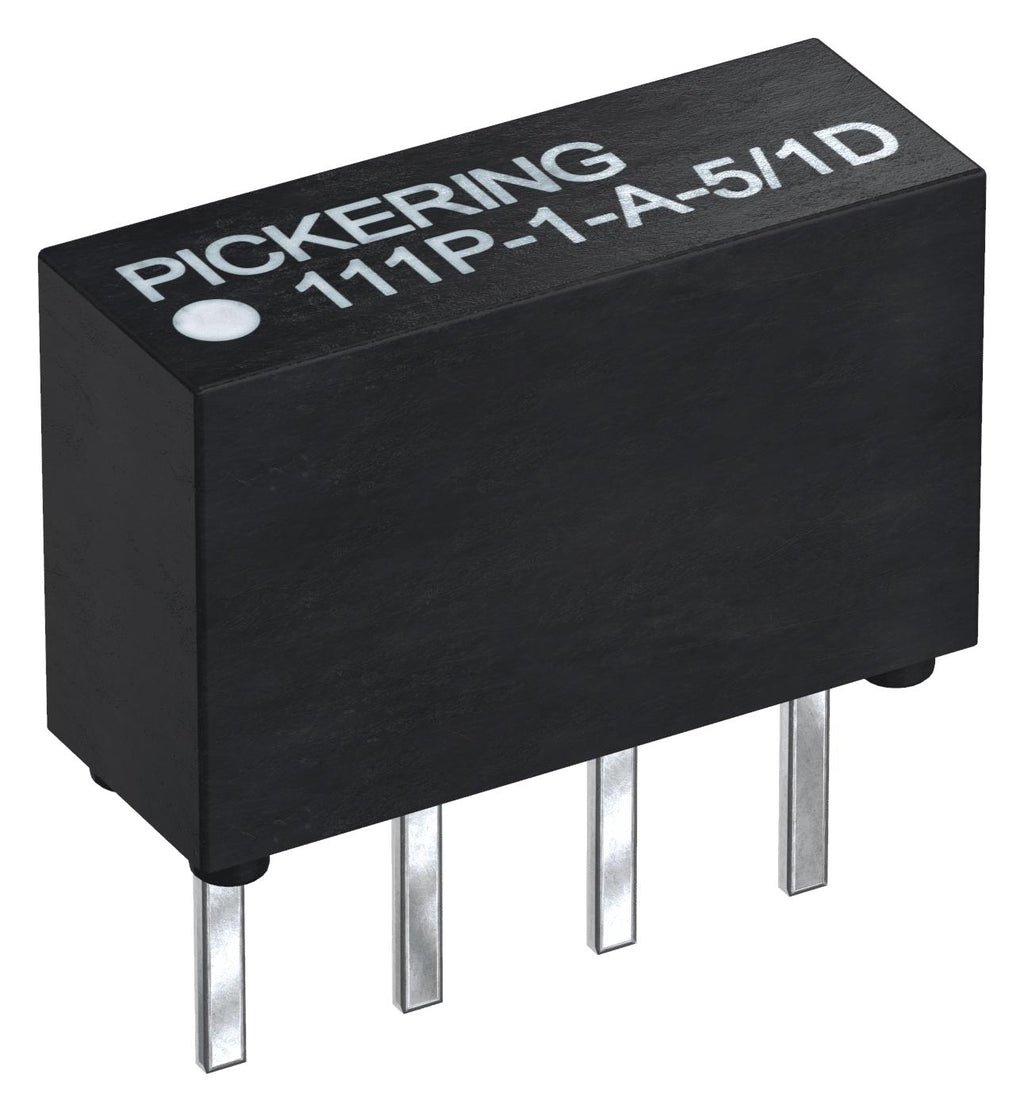

111P-1-A-5/1D is a 111 series general purpose pico SIL/SIP reed relay. This relay requires one third the board area of the more usual 5.08mm x 20.32mm devices and are ideal for high density applications.
- Highest quality instrumentation grade switch
- Take up the minimum of board area, conserving board space
- Operating temperature range is -20°C to +85°C
- Plastic with mu-metal magnetic screening
- Coil voltage is 5V, coil resistance is 400 ohm
- Maximum contact resistance is 0.15 ohm
- Maximum operating voltage is 3.75V, minimum operating voltage is 0.5V
- Power rating is 10W, maximum switch current is 0.5A
- Maximum switching voltage is 170V, life expectancy is 10�
- 1 Form A configuration, comes with internal diode
Other details
| Brand |
PICKERING |
| Part Number |
111P-1-A-5/1D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
