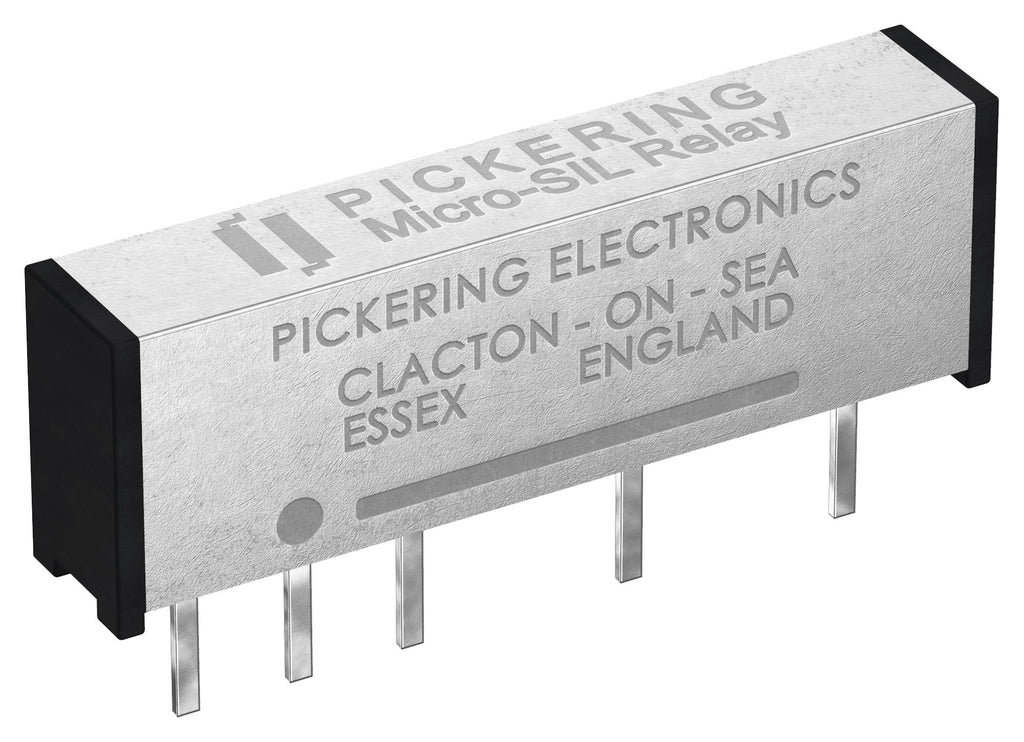

108-1-C-12/3D is a 108 series change over Micro-SIL® SIL/SIP reed relay. It is a highest quality instrumentation grade reed switch. It has internal mu-metal magnetic screen which provides very high resistivity resin. Mu-metal is used as steel because of both high permeability and low magnetic remanence. This construction totally eliminates the risk of magnetic interaction problems. It is ideal for high-end instrumentation applications.
- Coil voltage is 12V
- Coil resistance is 1000 ohm
- Maximum contact resistance is 0.20 ohm
- Maximum operating voltage is 9V at 25°C
- Minimum operating voltage is 1.2V at 25°C
- Power rating is 3W
- Maximum switch current is 0.25A
- 1 Form C configuration, comes with internal diode
- Life expectancy is 10�
- Maximum switching volts is 200V, operating temperature range is -20°C to +85°C
Other details
| Brand |
PICKERING |
| Part Number |
108-1-C-12/3D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
