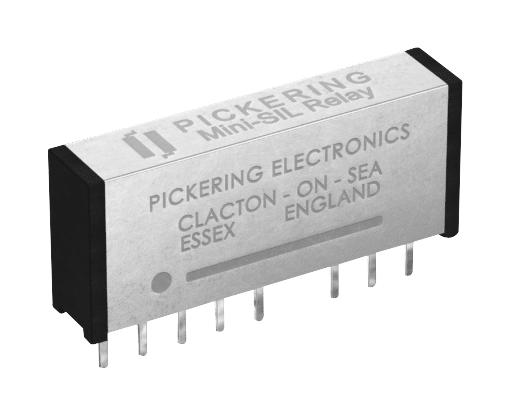

107-2-C-5/3D is a 107 series Mini-SIL® changeover SIL/SIP reed relay. This is encapsulated in patented mu-metal screen and ideal for radio frequency (RF) or high speed digital applications. Also it is an ideal choice for high quality instrumentation.
- Highest quality instrumentation grade switch
- Stacking on 5.08mm pitch
- Coil voltage range is 5V
- Coil resistance is 375 ohm, maximum contact resistance is 0.22 ohm
- Maximum operating voltage is 3.75V at 25°C, minimum operating voltage is 0.5V at 25°C
- 2 Form C configuration, comes with internal diode
- Power rating is 3W, operating temperature range is -20°C to +85°C
- Maximum switch current is 0.25A
- Maximum switching voltage is 200V
- Life expectancy is 10�
Other details
| Brand |
PICKERING |
| Part Number |
107-2-C-5/3D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
