100HC-1-A-12/1D is a 100HC series high power dry SIL reed relay. It offer high coil resistances than the similar specification series 114. The greater winding space allows the switch to rate upto 3Amps continuous carry current and even higher levels in pulsed current applications. The sputtered ruthenium contacts makes them suitable for low level or 'dry' switching applications and reduces heating effect from the higher coil resistances and gives them thermal EMF performance less than 10µV.
- Highest quality instrumentation grade switches
- Thermal EMF levels less than 10µV
- 1A switching at upto 40W, internal mu-metal magnetic screen
- Form A (energise to make) configuration
- Stacking on 10.16mm pitch
- Switch number 1, coil resistance is 2000 ohm
- 12V coil with optional internal diode, operating temperature range is -20°C to +85°C
- 40W power rating, 1A maximum switch current, 3A maximum carry current
- Maximum switching volts is 200VDC, 240V AC RMS
- Life expectancy is 10�
Other details
| Brand |
PICKERING |
| Part Number |
100HC-1-A-12/1D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

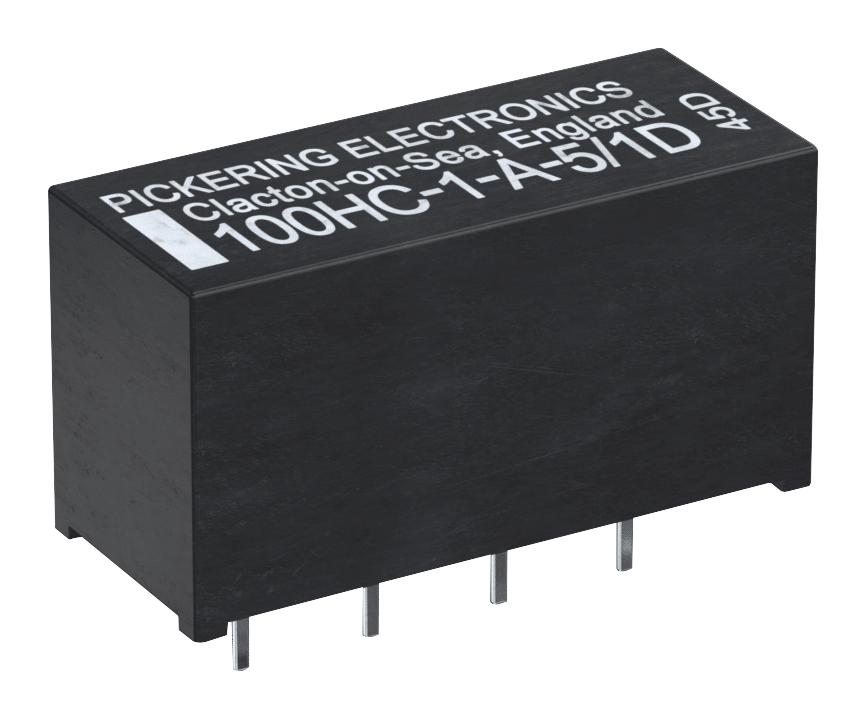

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
