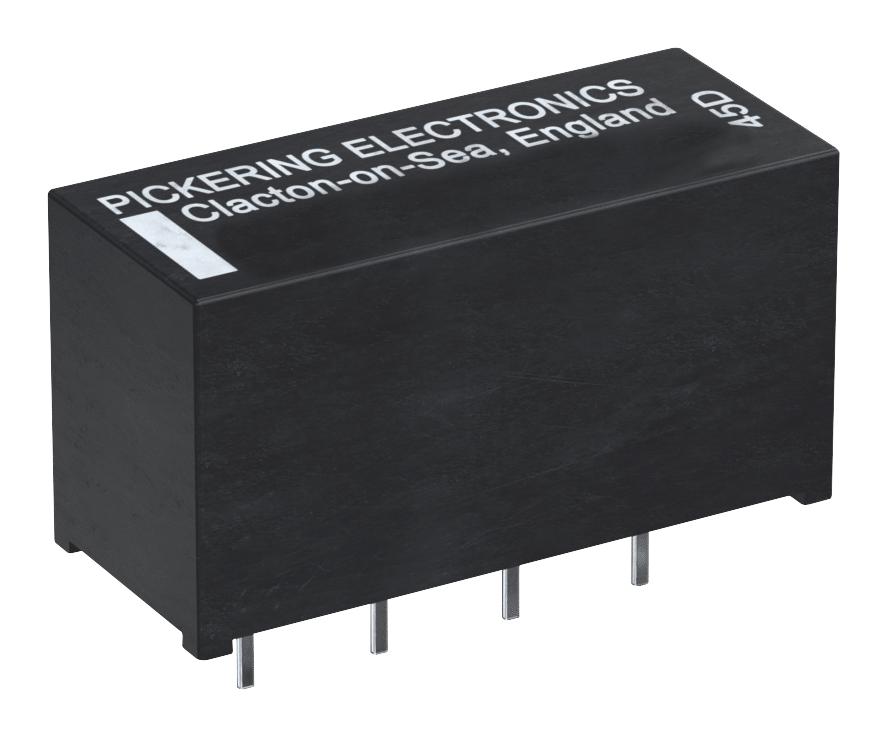

100-1-A-5/4D is a 100 series low thermal EMF Single-in- Line (SIL) 1000V stand-off dry reed relay. Primarily intended for direct drive from 4000B CMOS or NMOS logic low current sources. The mercury wetted relay in the range may be driven directly from TTL logic. It is also useful for applications where conservation of current is important.
- Highest quality instrumentation grade switch
- Thermal EMF about 1microvolt or Less
- Low power consumption, ideal for portable equipment
- 1FormA, HV switch number 4, coil resistance is 2200 ohm
- Suitable for data acquisition or thermocouple switching
- Encapsulated in a plastic package with internal mu-metal magnetic screen
- Maximum operating voltage is 3.75V, minimum release voltage is 0.5V
- 5V coil with an internal diode, operating temperature range is -20°C to +85°C
- 10W power rating, 0.5A maximum switch current, 1.2A maximum carry current
- Maximum switching volt is 500V, operating time is 1.75ms, release time is 1.75ms
