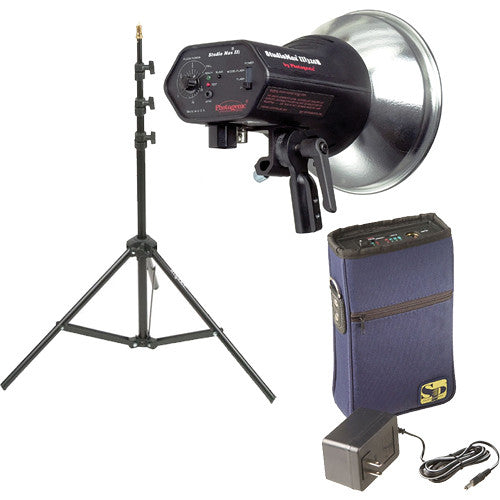

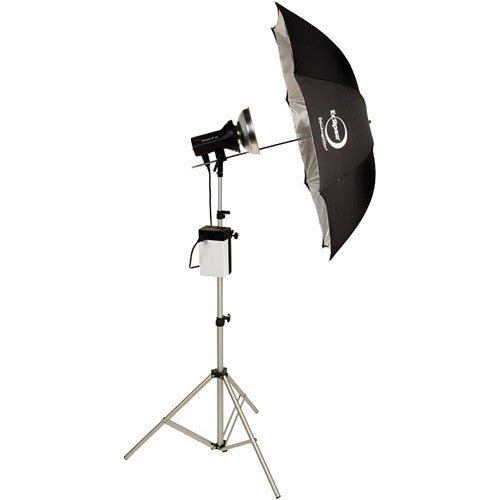

320 W/s AC/DC MonolightPower Pack, Sync Cord, Stand The Photogenic StudioMax III AC/DC Monolight allows use of the light away from sources of AC power, when a high voltage battery, such as the included Photogenic 12VDC Power Battery Pack or the optional Quantum Turbo Battery is added.
The StudioMax III offers a full 6 f/stop power range, Making it an excellent choice as a secondary or background light. It can even be used as a main light for the photographer who wishes to add more lights later on. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment

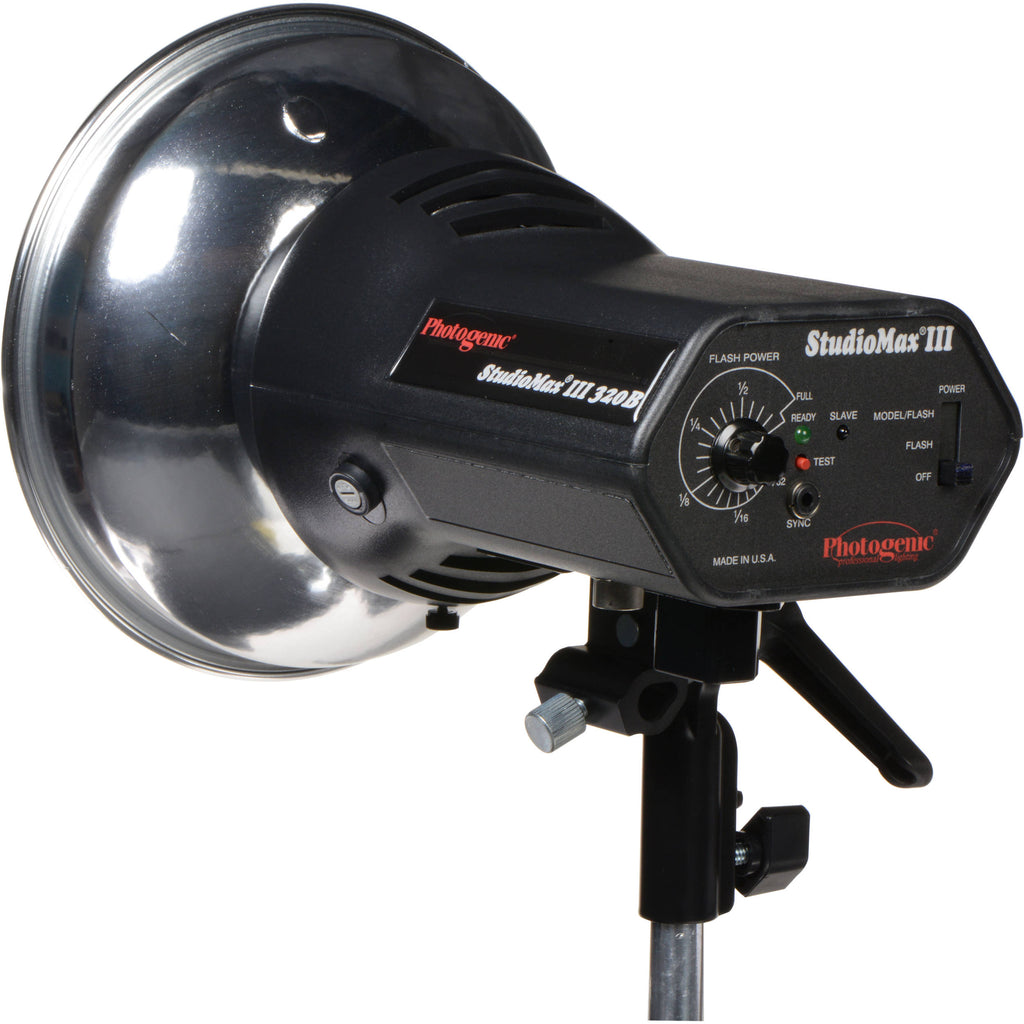

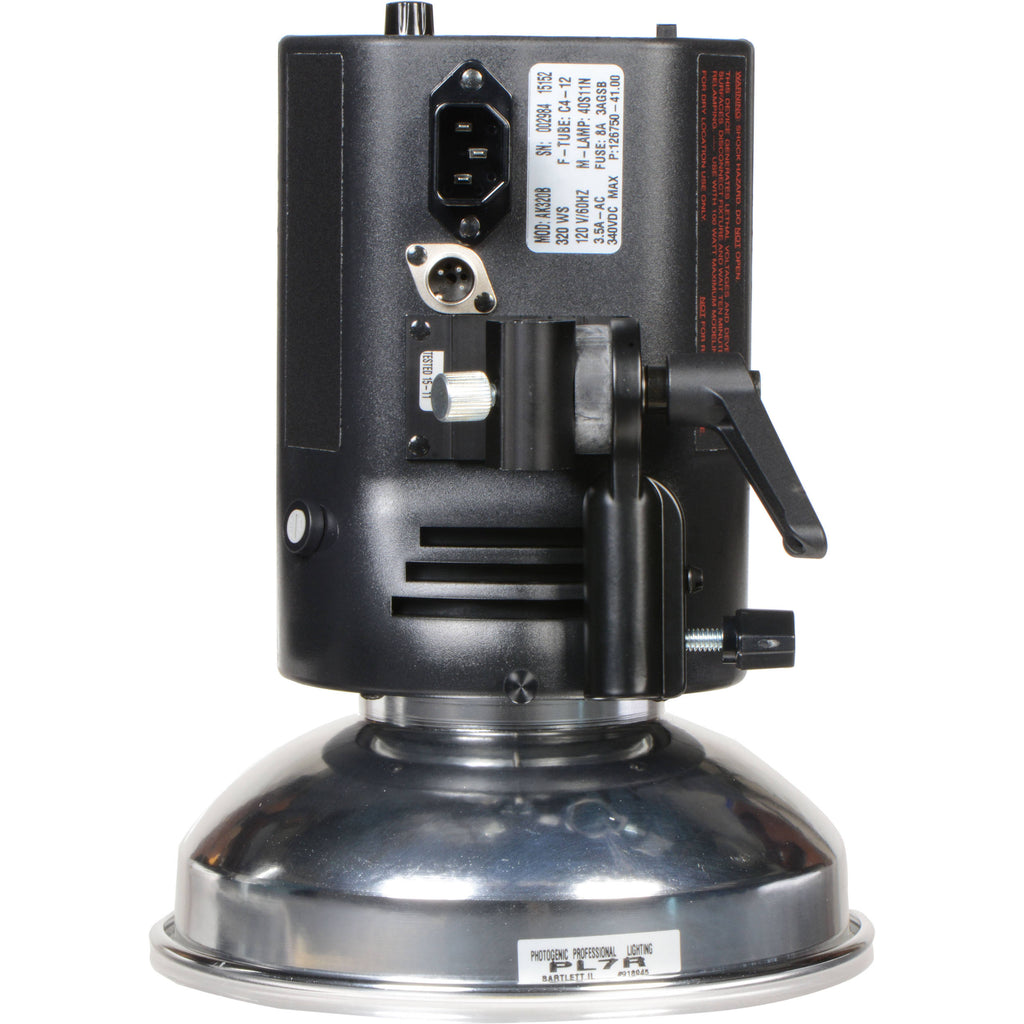

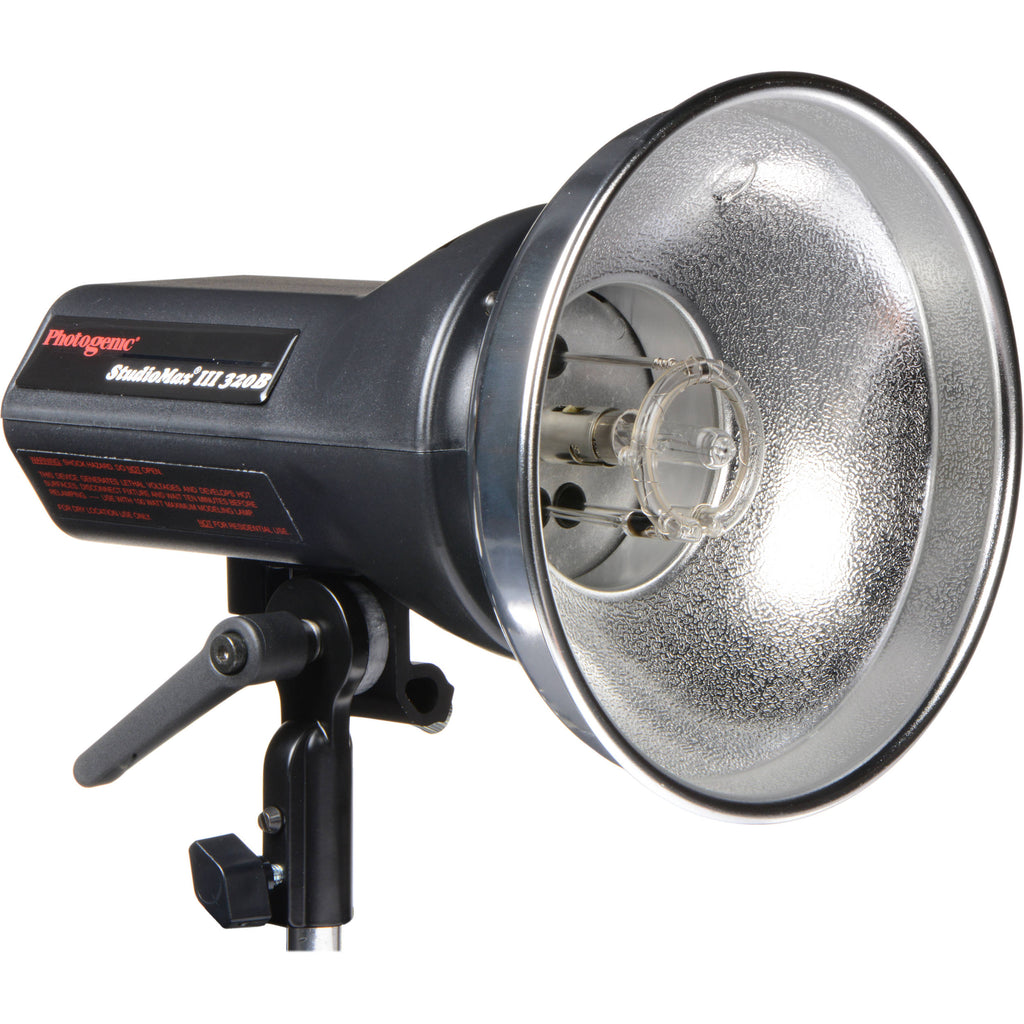

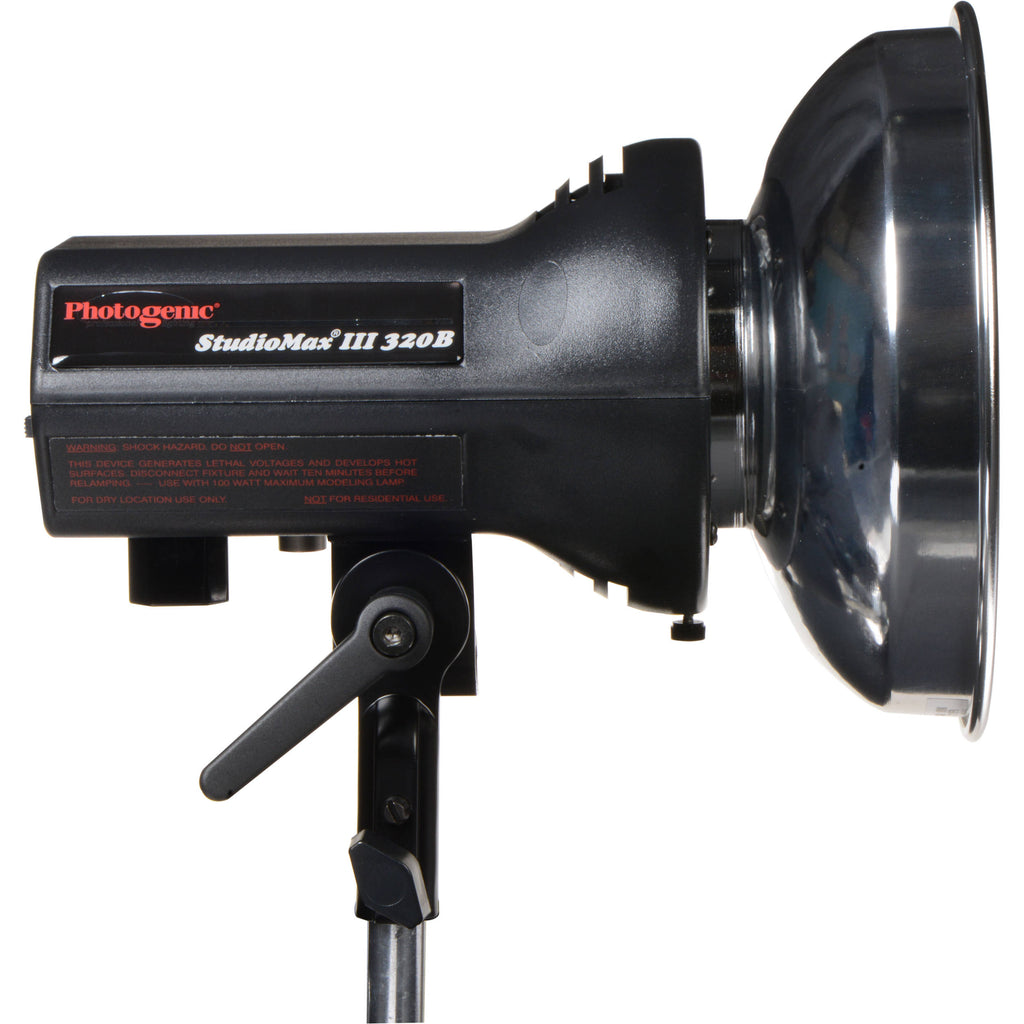

Photogenic StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC)
The Photogenic StudioMax III Constant Color Monolight offers a full six f/stop power range over 320 watt/seconds. It has internal control to ensure the same Kelvin temperature output, no matter what level of output is chosen.
This light is an excellent choice as a main, secondary, or background light. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment.

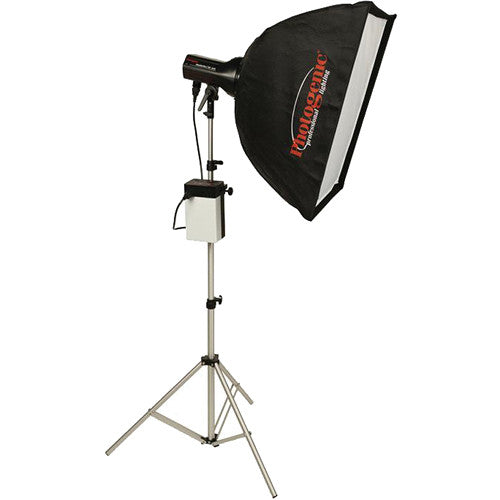

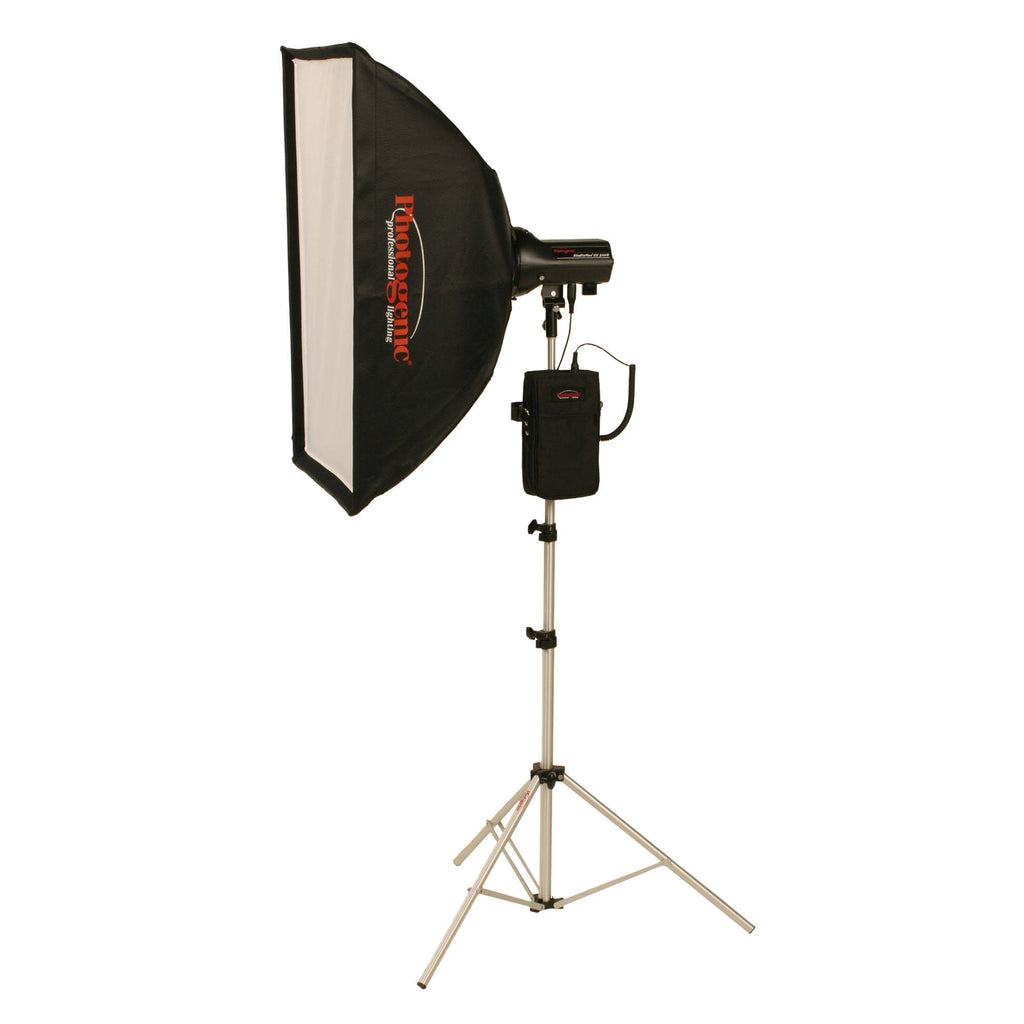

This monolight is capable of operating with its optional battery pack, for working outdoors away from AC power.
Six F/Stop Power Range Dial provides infinite flash power settings from full to 1/32 power Built In Slave Highly sensitive, switchable optical slave for synchronization with other flashes Modeling Light Independently Switched, to aid in positioning and focus User Replaceable Flashtube No tools are required to replace this "plug & play" flashtube Compact Design Easy to transport; umbrella socket and stand mount built on UPC: 689670111188 Photogenic Battery for Studiomax AC/DC Monolights
The Photogenic 12VDC Power Battery Pack works with the Studiomax 160 and 320 ACDC monolights, SP Excalibur C1600ACDC monolight, SPC920ACDC, 147ACDC and 100ACDC units.
This pack also works with most flashes that can use the Quantum Turbo, and Lumedyne Mini Cycler battery packs. Power cords for these strobes made by Quantum and Paramount may be ordered from B&H separately.
A more economical alternative to the Quantum Turbo battery. Recycle time is about 4 seconds when used @ full power with the Studiomax 160AC/DC. UPC: 689670050289 Impact Air-Cushioned Light Stand (Black, 8')

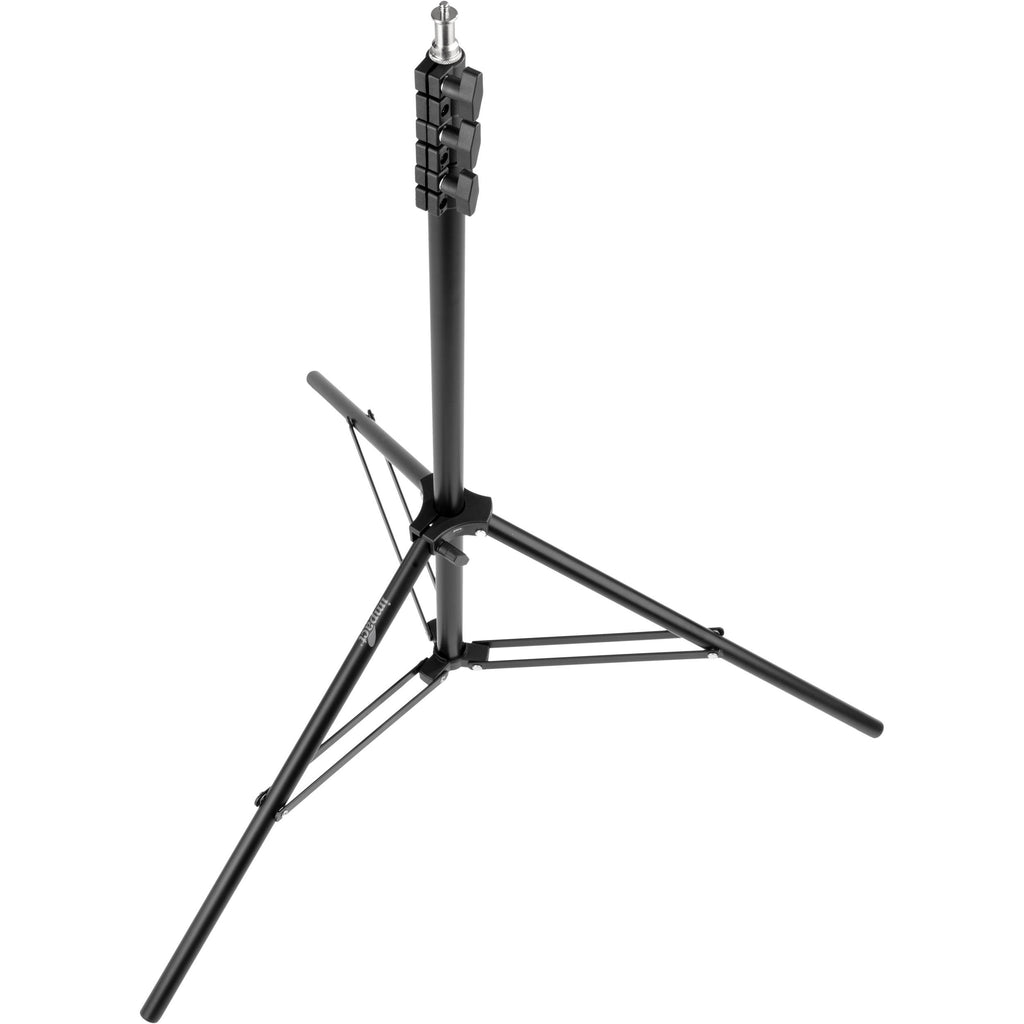

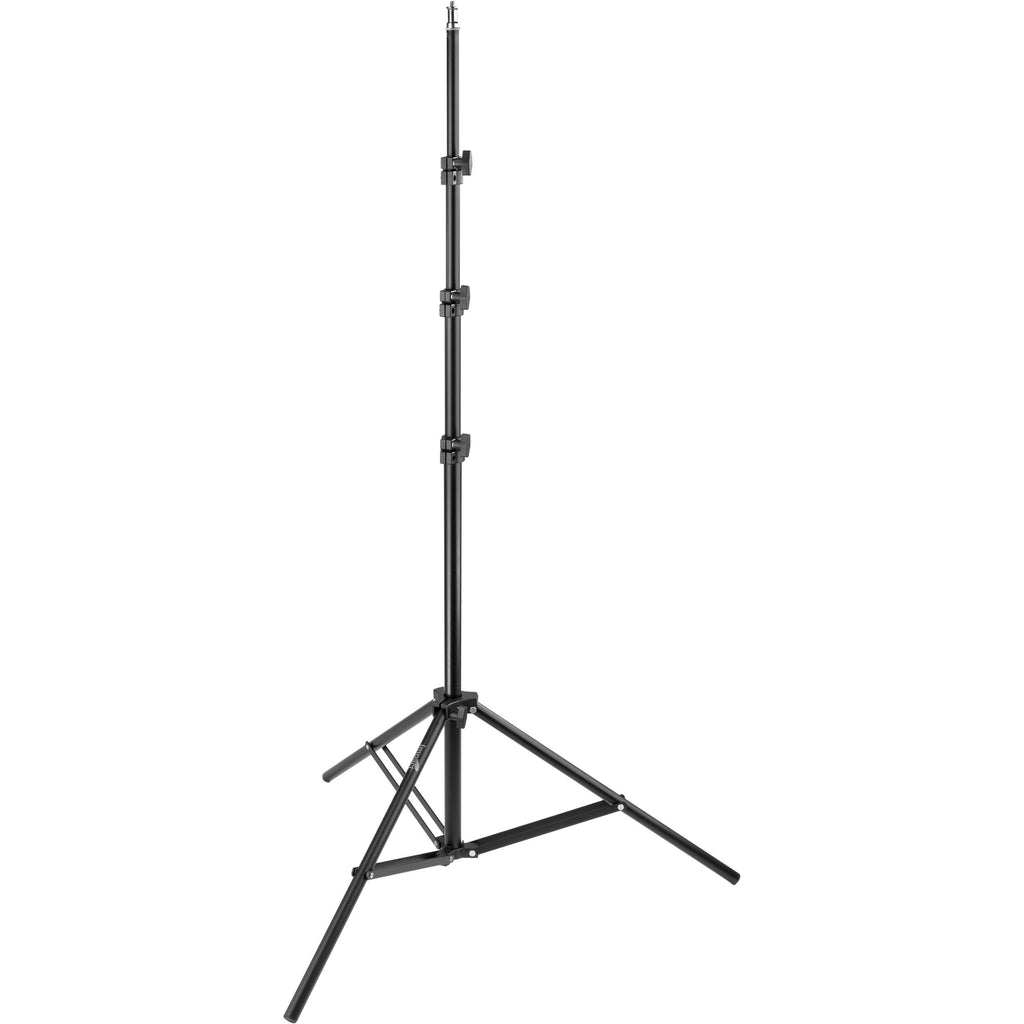

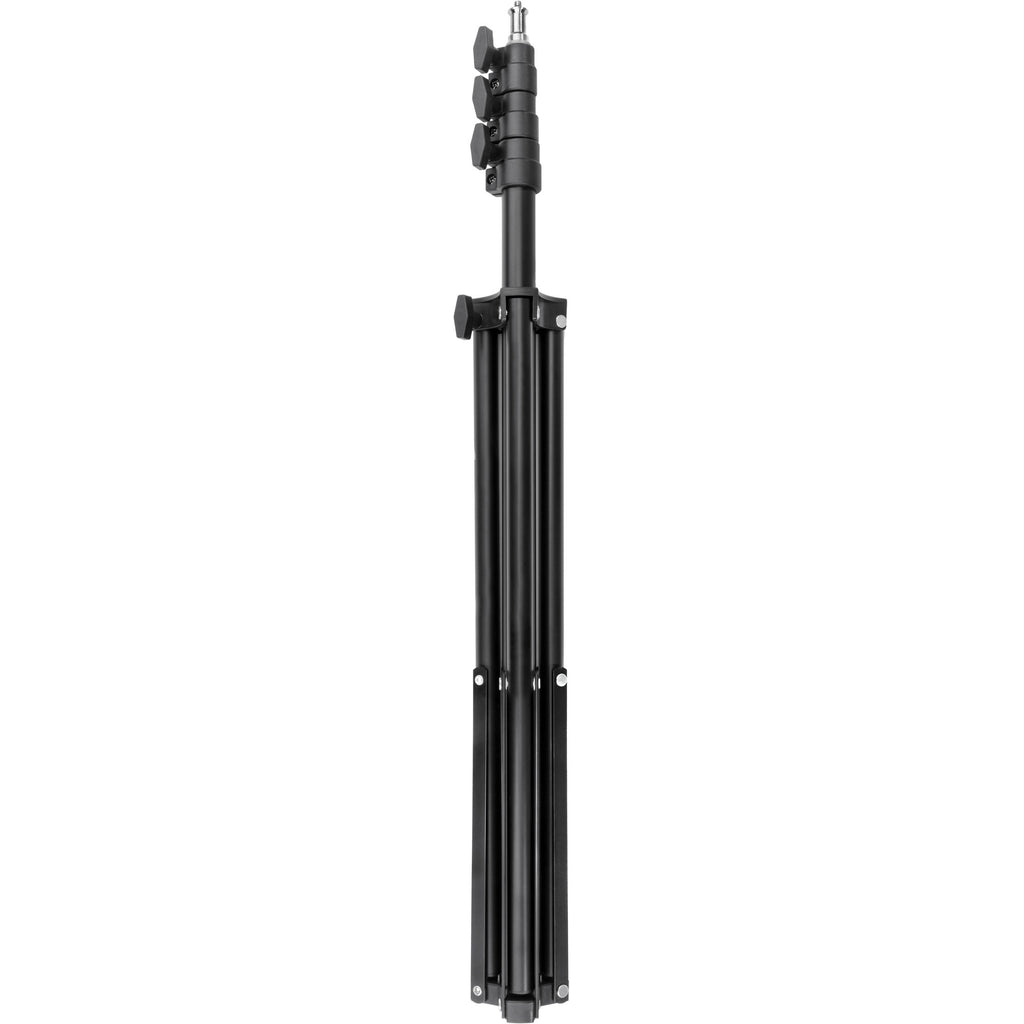

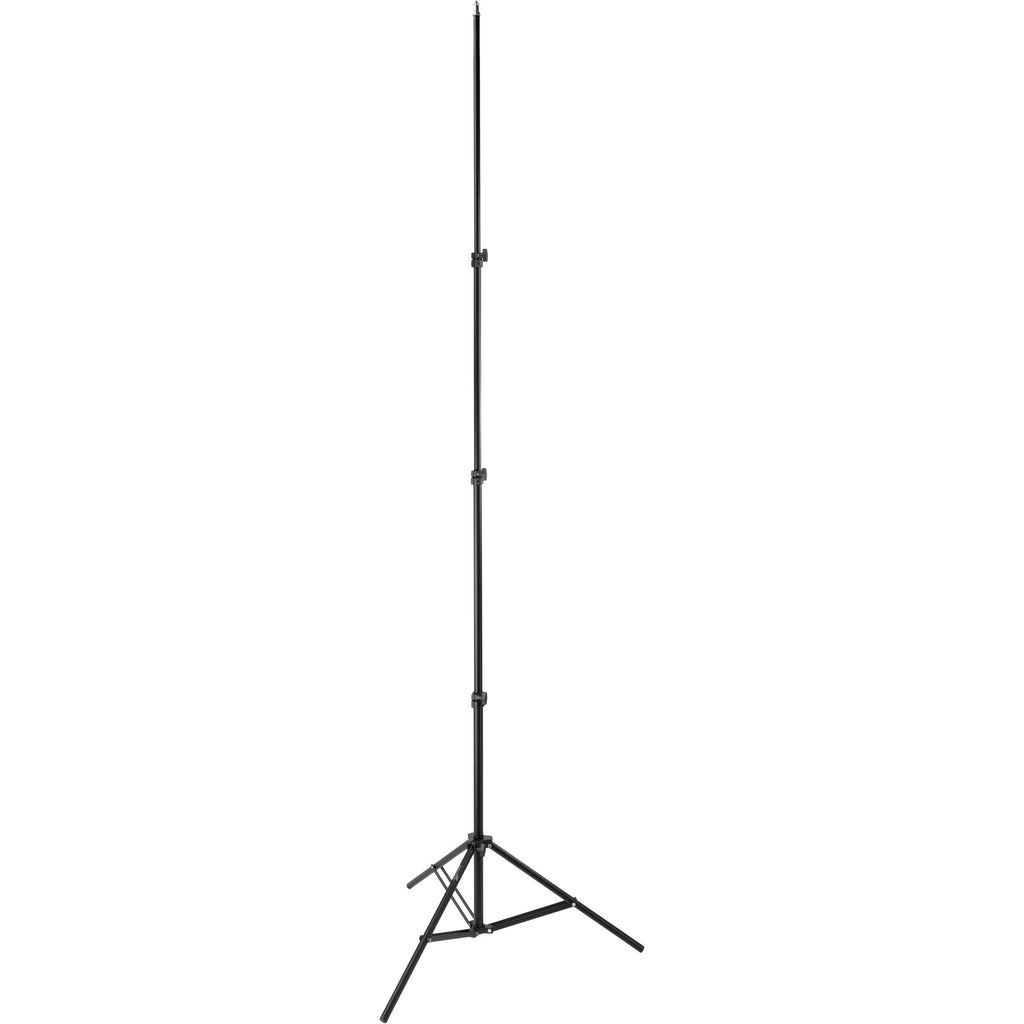

This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb.
If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
Air Cushioned Protects equipment from impact damage. Compact Design Will fit easily into most location cases. Accepts Casters
Eases positioning of heavy lights. Available as accessories. UPC: 847628012349
| Maximum Power | 10 to 320 Ws |
| Power Control | 6 Stops |
| Guide Number | 170' / 51.8 m at |
| Flash Duration | 1/4300 to 1/125 Sec |
| Recycle Time | 0.2 to 3 Sec () |
| Flash Ready Indicator | Visual |
| Reflector | Changeable |
| Accessory Fitting Type | Photogenic |
| Type | Tungsten |
| Wattage | 100 W |
| AC Input Voltage | 105 to 125 VAC, 60 Hz |
| Current | 5 A (Operating) |
| Circuit Protection | Fuse |
| Maximum Output Voltage | 12.0 VDC |
| Display | None |
| Auto Dump | No |
| Fan Cooled | No |
| Dimensions | H: 4.5 x W: 4.5 x L: 8.8" / H: 11.0 x W: 11.0 x L: 22.0 cm |
| Weight | 3.0 lb / 1.36 kg |
| Package Weight | 6.15 lb |
| Box Dimensions (LxWxH) | 12.7 x 10.3 x 10.3" |
| Number of Flashes per Charge | 110 @ 270 w/s, 190 @ 160 w/s
320 @ 100 w/s, 380 @ 70 w/s |
| Charge Rate | 6 hours |
| Connectors | 1- multi-pin to battery, 1- DC charging input |
| Memory | None, battery is lead-acid |
| Dimensions | 5 x 3 x 7" (12.7 x 7.6 x 17.8cm) |
| Weight | 3 lbs (1.4kg) |
| Package Weight | 4.35 lb |
| Box Dimensions (LxWxH) | 13.9 x 8.6 x 3.3" |
| Stand/Column Top Mount | 5/8" Stud with 1/4"-20 Male |
| Accepts Second Riser | No |
| Wheels | Optional |
| Air Cushioned | Yes |
| Stand Type | 1 x General Purpose Stand |
| Maximum Working Height | 96" / 243.8 cm |
| Minimum Working Height | 34" / 86.3 cm |
| Load Capacity | 8 lb / 3.6 kg |
| Collapsed Height | 29.6" / 75.2 cm |
| Footprint Diameter | 36" / 91.4 cm |
| Leg Shape | Round: 20 mm |
| Finish | Black |
| Weight | 2.05 lb / 1 kg |
| Package Weight | 2.5 lb |
| Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.2" |
In the Box
- Photogenic StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC)
- Photogenic C4-12C Color Corrected Flash Tube
- General Brand ESR Lamp - 100 Watts/120 Volts
- Photogenic 7-1/2" High Gain Reflector for Photogenic
- Photogenic PC to Mini Sync Cord - 10' (3m)
- AC Power Cord
- Flash Tube Protector
- Photogenic Battery Cable for StudioMax AC/DC Monolight
- Limited 1-Year Warranty
- Photogenic Battery for Studiomax AC/DC Monolights
- 18V 600mA Charger/AC Adapter
- Fitted Cordura Case with Strap and Zipper
- Impact Air-Cushioned Light Stand (Black, 8')
