| ₹ 387.31 includes GST and import duties. | |
| B2B customers can avail ₹ 59.06 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

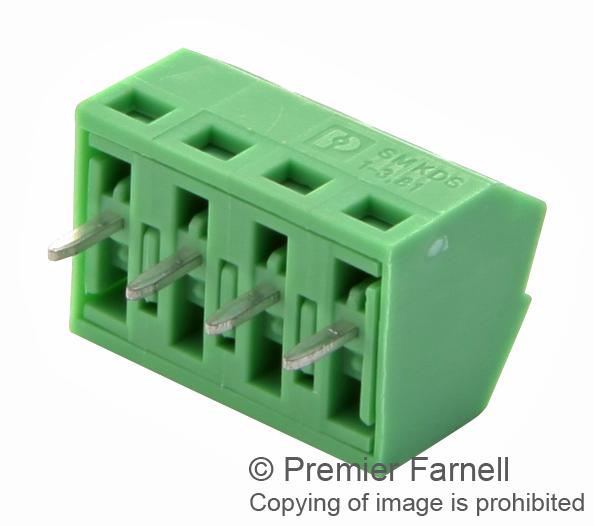

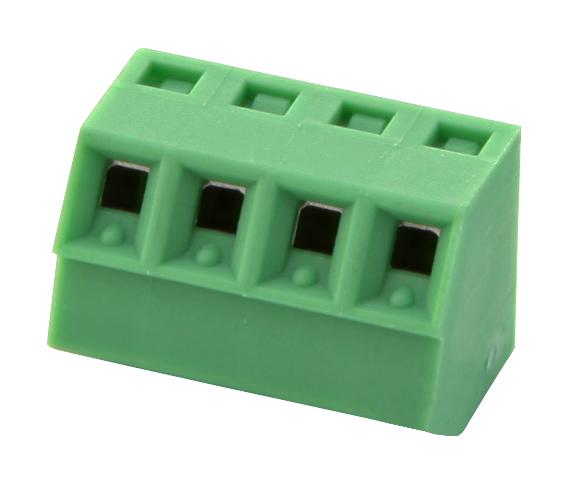

The SMKDS 1/ 4-3,81 is a 4-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M2 screw connection. This 1728307 terminal block has fully developed contact geometries and surfaces. Arrangement of several rows of terminal blocks one behind the other, multi-level effect with the same design height. It accepts 26 to 16AWG wire range.
- Conductor and screwdriver axis at an angle of 55° to the usual direction
- 5mm Stripping length
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 3.81mm |
| No. of Positions: 4Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 10A |
| Rated Voltage: 200V |
| Block Orientation: Through Hole 55° |
| Product Range: SMKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SMKDS 1/ 4-3,81 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 379.56 |
| 3-5 | ₹ 375.69 |
| 5-10 | ₹ 367.94 |
| 10+ | ₹ 360.2 |
Bulk discount will be automatically applied during checkout based on quantity.
