Description

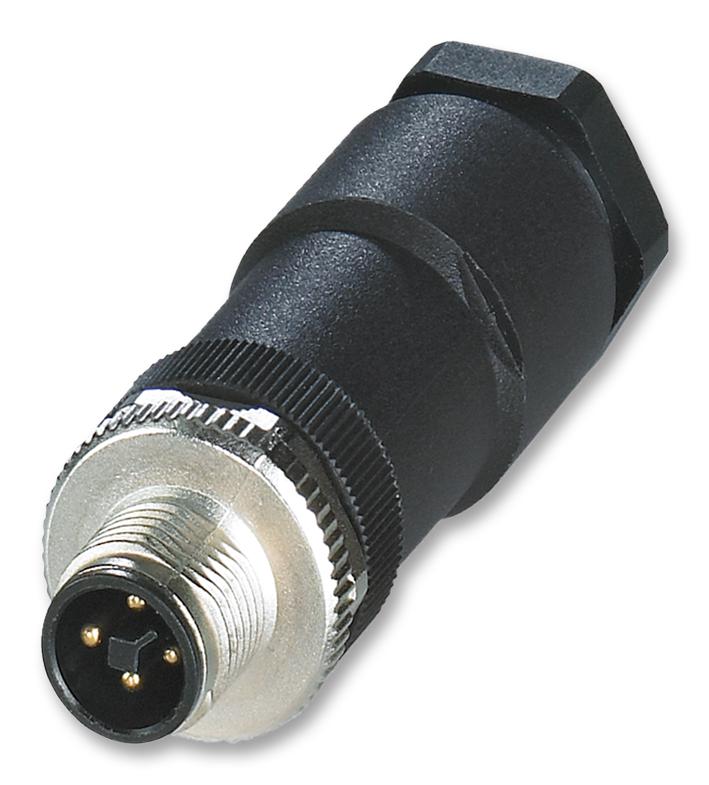

The SACC-M12MST-3PECON-PG11-M is a 4-position M12 T-coded Straight Plug with screw connection. It has gold-plated CuZn contacts, PA (polyamide) contact carrier and a grip body.
- Nickel-plated zinc die-cast knurls
- PG11 Cable gland
- Flexible connector for on-site assembly
- Proven connection technology for a large selection of different conductors
- Protection against incorrect connection using special T-coding
- 12A Rated current at 40°C
- 63VDC Rated voltage
- >10GR Insulation resistance
- 0.75 to 1.5mm² Conductor cross section
- IP67 Protection
Sensing & Instrumentation
Other details
Brand | PHOENIX CONTACT |
Part Number | SACC-M12MST-3PECON-PG11-M |
Quantity | Each |
Technical Data Sheet EN | |
CAD Multiple Formats EN | |
Manufacturer Catalogue EN |
