| ₹ 3876.54 includes GST and import duties. | |
| B2B customers can avail ₹ 591.17 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

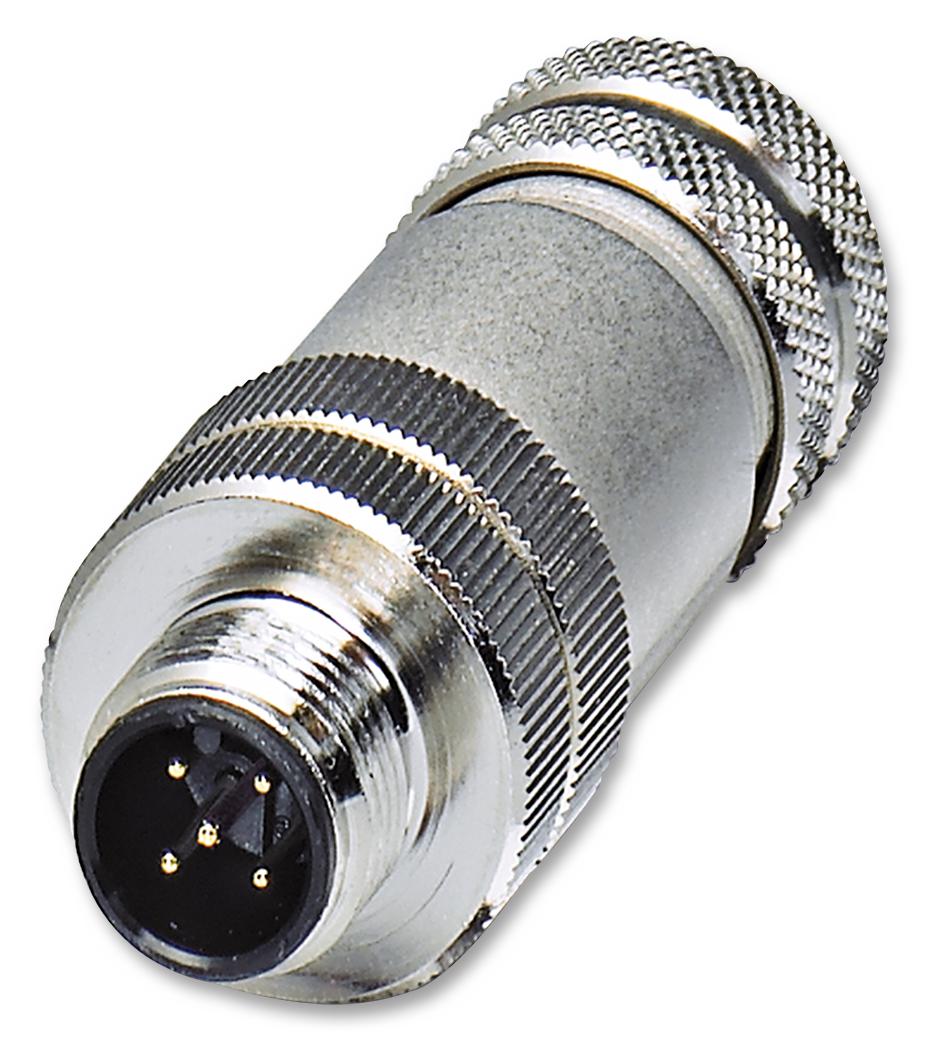

The SACC-M12MS-5CON-PG 9-SH is a 5-position M12 A-coded shielded Straight Plug with screw connection. It has gold-plated CuSn contacts, PA (polyamide) contact carrier and nickel-plated zinc die-cast grip body.
- Nickel-plated zinc die-cast knurls
- Safe use in the field, thanks to a high degree of protection
- Flexible connector for on-site assembly
- Proven connection technology for a large selection of different conductors
- Reliable signal transmission - 360° shielding in environments with electromagnetic interference
- 4A Rated current at 40°C
- 60VDC/48VAC Rated voltage
- >=100MR Insulation resistance
- 0.25 to 0.75mm² Conductor cross section
- IP67 Protection
Applications
Sensing & Instrumentation
Product details
| Product Range: - |
| Sensor Connector Size: M12 |
| Sensor Connector Gender: Male |
| No. of Positions: 5 Positions |
| Sensor Contact Type: Screw Pin |
| Sensor Connector Mounting: Straight Cable Mount |
| IP / NEMA Rating: IP67 |
| Connector Coding: A Coded |
| Connector Body Material: Nylon (Polyamide) Body |
| Contact Material: Brass |
| Contact Plating: Gold |
| Current Rating: 4A |
| Voltage Rating: 60VDC |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SACC-M12MS-5CON-PG 9-SH |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3799.01 |
| 3-5 | ₹ 3760.24 |
| 5-10 | ₹ 3682.71 |
| 10+ | ₹ 3605.18 |
Bulk discount will be automatically applied during checkout based on quantity.
