This is a

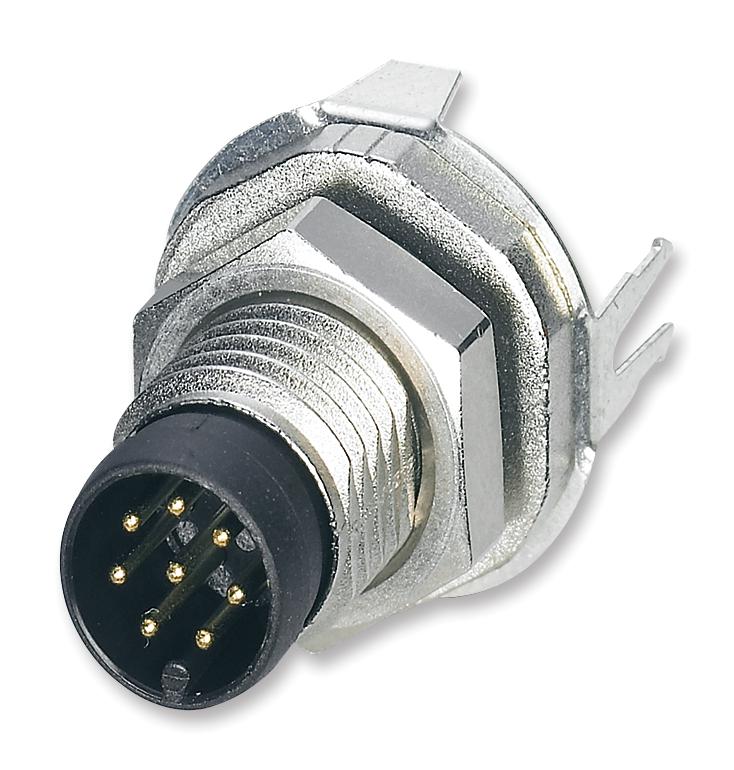

SACC-DSI-M8MS-8CON-M8-L180 SH Sensor Connector , M8, Male, 8 Positions, PCB Pin, Straight Panel Mount product from PHOENIX CONTACT with the model number SACC-DSI-M8MS-8CON-M8-L180 SH
Product details
| Product Range |
- |
| Sensor Connector Size |
M8 |
| Sensor Connector Gender |
Male |
| No. of Positions |
8 Positions |
| Sensor Contact Type |
PCB Pin |
| Sensor Connector Mounting |
Straight Panel Mount |
| IP / NEMA Rating |
IP67 |
| Connector Coding |
A Coded |
| Connector Body Material |
Zinc Body |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold |
| Current Rating |
1.5A |
| Voltage Rating |
30V |
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
SACC-DSI-M8MS-8CON-M8-L180 SH |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
