Description

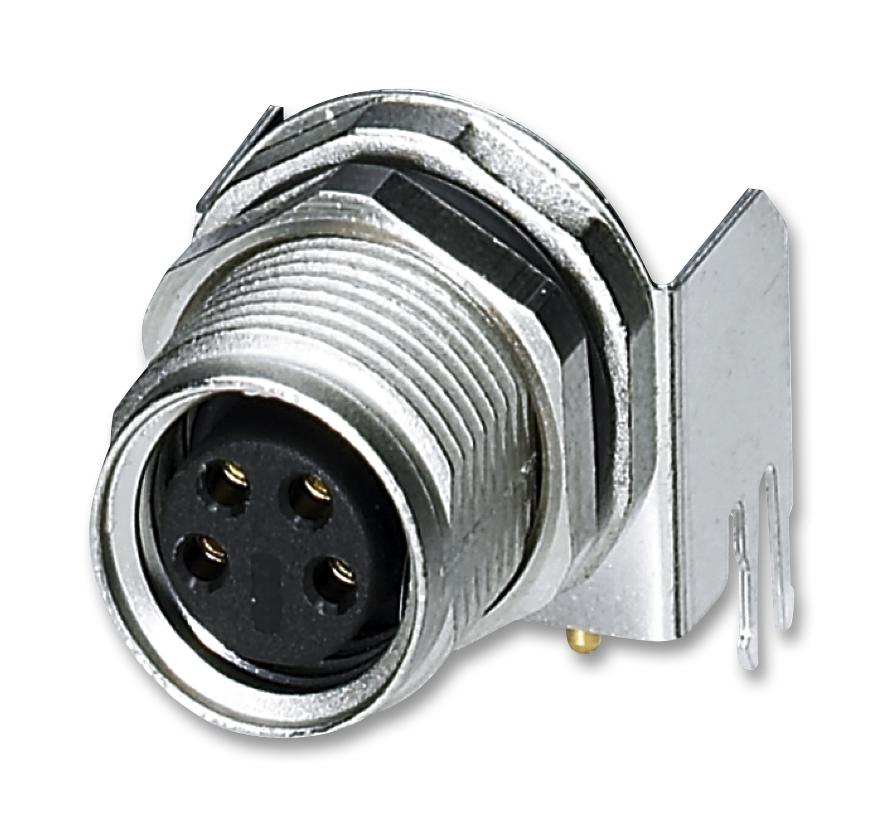

The SACC-DSI-M8FS-4CON-M10-L90 SH is a 4-position M8 A-coded sensor/actuator Flush-type Socket with angled solder connection. It has gold-plated copper alloy contacts and PA 66 (polyamide 66) contact carrier. Standard pin assignments and coding for signal transmission with uniform design-in design.
- Rear/screw mounting with M10 fastening thread
- Easy PCB assembly - One-piece connectors for wave soldering
- Nickel-plated zinc die-cast knurls
- 4A Rated current at 40°C
- 50VAC/60VDC Rated voltage
- >=100MR Insulation resistance
- IP67 Protection
Sensing & Instrumentation
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SACC-DSI-M8FS-4CON-M10-L90 SH |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
