| ₹ 101.19 includes GST and import duties. | |
| B2B customers can avail ₹ 15.43 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

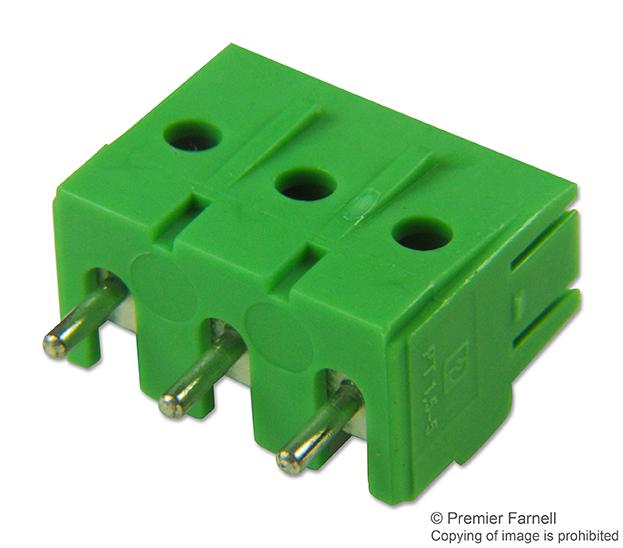

The PT1,5/3-5.0-H is a 3-position green horizontal PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M2.6 screw connection. This 1935161 terminal block has fully developed contact geometries and surfaces. Connection of a 1.5mm² conductor with ferrule, then however with reduction in rated voltage or pollution degree/surge category. It accepts 26 to 16AWG wire range.
- Large terminal block capacity thanks to rectangular clamping space
- Rugged version with high current carrying capacity
- Highly flexible conductor protection for easy, repeated connection
- Plus/minus screw
- 5mm Stripping length
- UL94V-0 Flammability rating
Industrial
Other details
| Brand | PHOENIX CONTACT |
| Part Number | PT1,5/3-5.0-H |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 99.17 |
| 3-5 | ₹ 98.15 |
| 5-10 | ₹ 96.13 |
| 10+ | ₹ 94.11 |
Bulk discount will be automatically applied during checkout based on quantity.
