Description

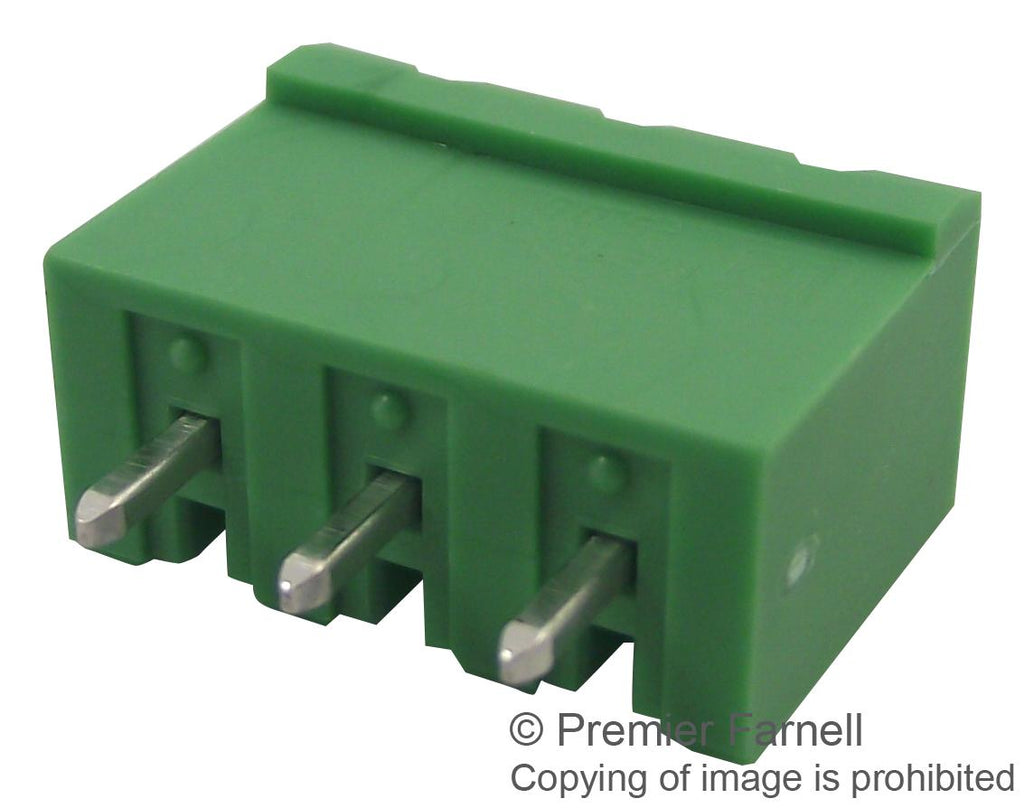

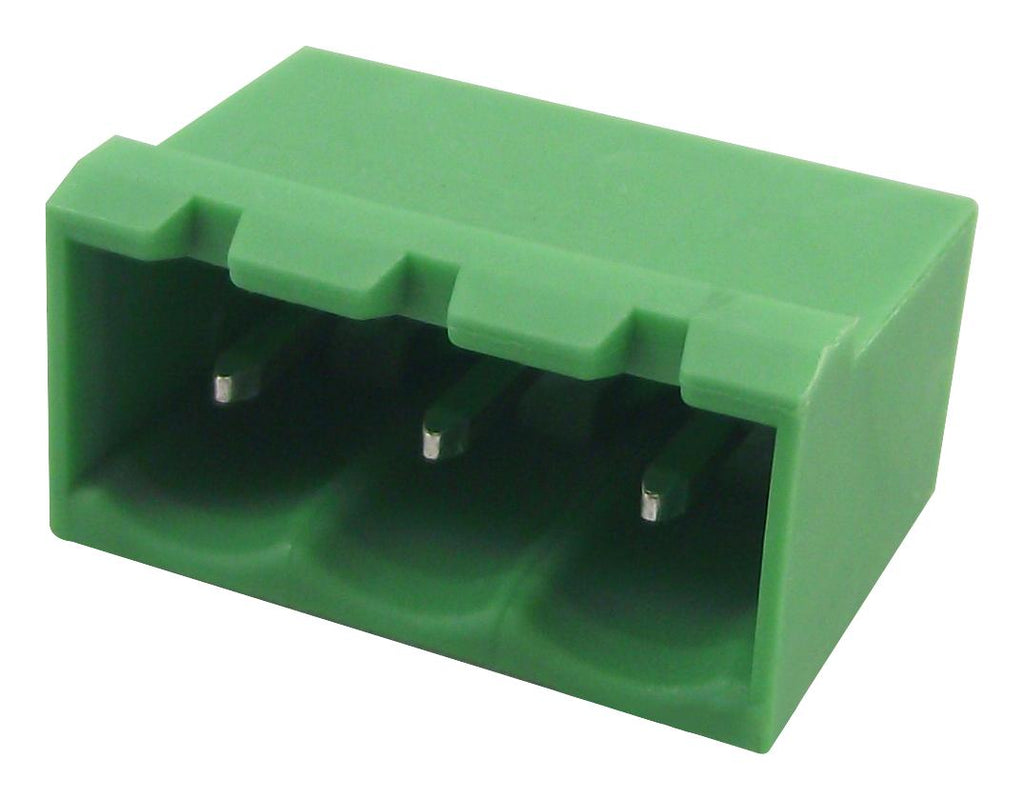

The MSTBVA2, 5/3-G-5, 08 from Phoenix Contact is a through hole, 3 position terminal block header with 5.08mm pitch spacing.
- Green colour insulation
- Polyamide (PA) insulation material
- Tin contact surface
- Header dimensions is 8.6mm x 17.24mm x 15.9mm (L x W x H)
- Hole diameter is 1.4mm
- Plug-in direction is vertical to the PCB
- UL94 V-0 flammability rating
- CSA, VDE, IECEE CB, CCA, EAC and cULus recognized
Industrial
Other details
| Brand | PHOENIX CONTACT |
| Part Number | MSTBVA2,5/3-G-5,08 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 139.17 |
| 3-5 | ₹ 137.75 |
| 5-10 | ₹ 134.91 |
| 10+ | ₹ 132.07 |
Bulk discount will be automatically applied during checkout based on quantity.
