| ₹ 1513.3 includes GST and import duties. | |
| B2B customers can avail ₹ 230.78 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

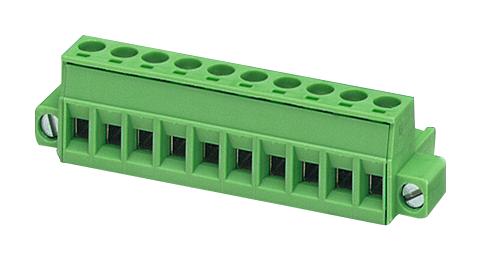

The MSTB 2,5/ 9-STF-5,08 from Phoenix Contact is a 5.08 pitch, COMBICON plug-in PCB connector with 9 position. The plug-in direction parallel to the conductor axis with wire gauge range from 24AWG to 12AWG.
- Nominal current is 12A
- Rated voltage (III/3) is 250V, (III/2) is 320V, (II/2) is 630V
- Green colour polyamide insulating material
- Connection capacity is 0.2mm² to 2.5mm² (solid), 0.2mm² to 2.5mm² (stranded)
- Flammability rating according to UL 94 V0
- Screwable flange for superior mechanical stability
- Contract surface is tin
Industrial
Other details
| Brand | PHOENIX CONTACT |
| Part Number | MSTB 2,5/ 9-STF-5,08 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1483.03 |
| 3-5 | ₹ 1467.9 |
| 5-10 | ₹ 1437.64 |
| 10+ | ₹ 1407.37 |
Bulk discount will be automatically applied during checkout based on quantity.
