Phoenix Contact MCVW 15/2-ST-35 MCVW 15/2-ST-35 Pluggable Terminal Block 3.5 mm 2 Ways 28AWG to 16AWG 1.5 mm² Screw 8 A

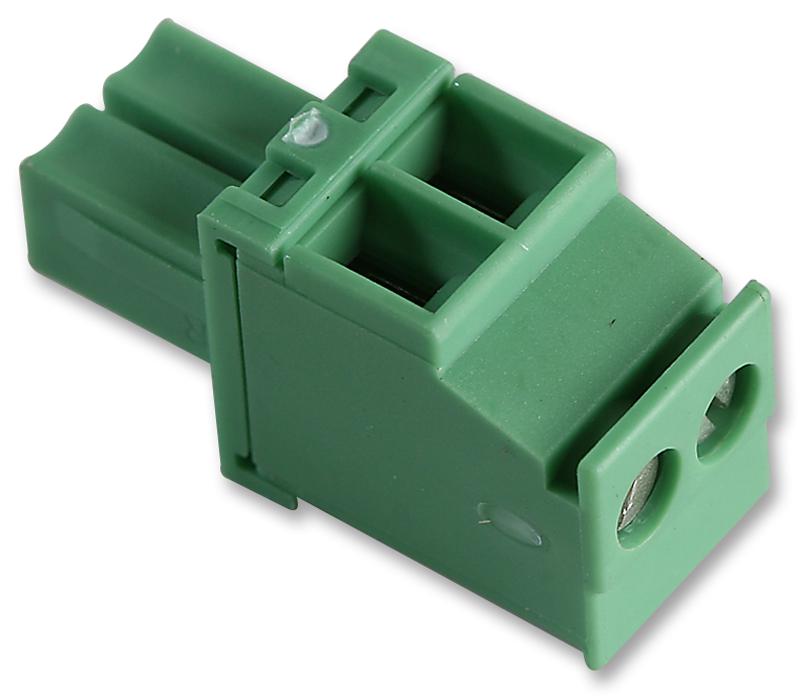

The MCVW 1,5/2-ST-3,5 is a 2-position green pluggable PCB Terminal Block with tin-plated contacts, a polyamide insulator and M2 screw connection. This 1862852 terminal block provides individual position coding by removing the coding tab and connecting the coding profile to the header. The plug-in direction vertical to the conductor axis. It accepts 28 to 16AWG wire range.

• Generously dimensioned wiring space
• Compact dimensions of the MCV 1,5 plug range
• 7mm Stripping length
• UL94V-0 Flammability rating

Applications

Industrial

Other details

Brand	PHOENIX CONTACT
Part Number	MCVW 1,5/2-ST-3,5
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
