Description

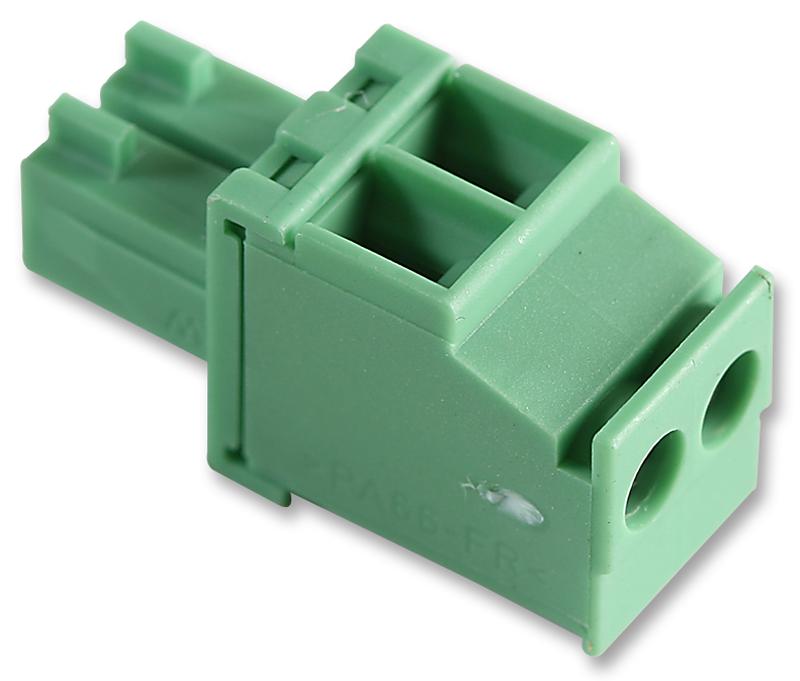

The MCVR 1,5/2-ST-3,5 is a 2-position green pluggable PCB Terminal Block with tin-plated contacts, a polyamide insulator and the M2 screw connection. This 1863152 terminal block provides individual position coding by removing the coding tab and connecting the coding profile to the header. The plug-in direction vertical to the conductor axis. It accepts 28 to 16AWG wire range.
- Generously dimensioned wiring space
- Compact dimensions of the MCV 1,5 plug range
- 7mm Stripping length
- UL94V-0 Flammability rating
Industrial
Other details
| Brand | PHOENIX CONTACT |
| Part Number | MCVR 1,5/2-ST-3,5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 312.79 |
| 3-5 | ₹ 309.59 |
| 5-10 | ₹ 303.21 |
| 10+ | ₹ 296.83 |
Bulk discount will be automatically applied during checkout based on quantity.
