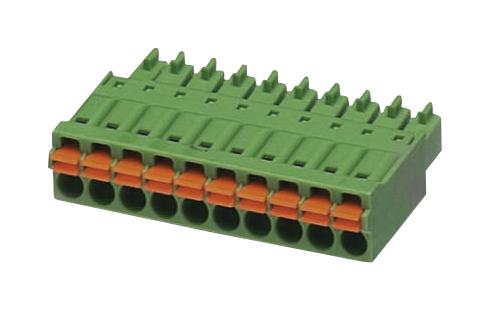

Phoenix Contact FMC 15/12-ST-35 FMC 15/12-ST-35 Pluggable Terminal Block 3.5 mm 12 Ways 24AWG to 16AWG 1.5 mm² Push In 8 A

The FMC 1,5/12-ST-3,5 from Phoenix Contact is a 12 position pluggable terminal block with push-in spring connection. This terminal block comes with 3.5mm pitch spacing and suitable for wire size ranging from 24AWG to 16AWG.

• Green colour insulation
• Tin contact surface, PA insulating material
• 8A nominal current, 160V rated voltage (III/2)
• Flammability rating according to UL94 V0
• Time saving push-in connection, tools not required
• Intuitive use through colour coded actuation lever
• Operation and conductor connection from one direction enable integration into front of device
• Defined contact force ensures that contact remains stable over the long term
• VDE, IECEE CB, EAC and cULus recognized
• Dimension of terminal block is 21.9mm x 42.70mm x 7.8mm (L x W x H)

Applications

Industrial

Other details

Brand	PHOENIX CONTACT
Part Number	FMC 1,5/12-ST-3,5
Quantity	Each
Technical Data Sheet EN
