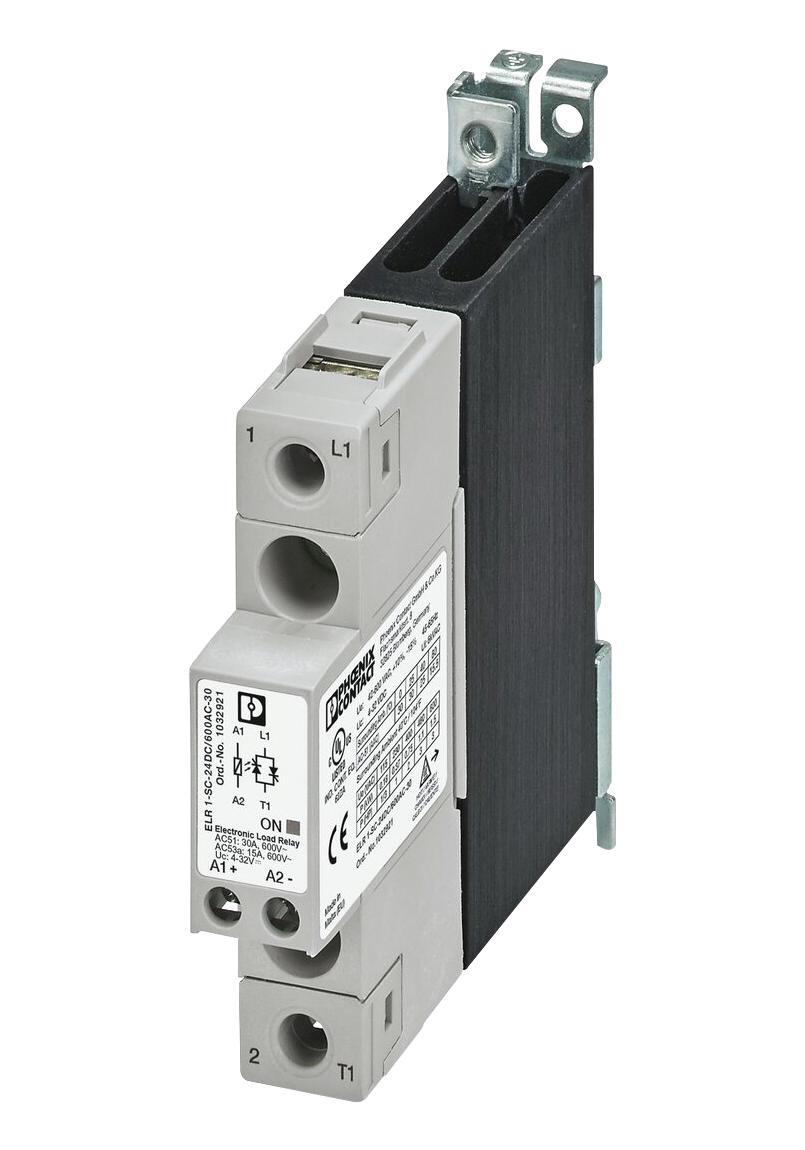

- Zero voltage switch, single-phase solid-state contactor
- 24VDC rated actuating voltage UC, 30A rated operating current at AC-51
- 1 number of phase, 28W maximum power dissipation for nominal condition
- Operating voltage range from 42VAC to 660VAC, 45Hz, 65Hz mains frequency
- Screw connection method (control circuits, load circuit)
- DIN rail mounting type, green LED operating voltage display
- Ring cable lug connection method (protective conductor connection)
- Ambient temperature (operation) range from -30 to 70°C
- EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 55011 standards/regulations
- Dimension is (W x H x D) 18mm x 110mm x 103mm
Product details
| Load Current:
30A
|
| Operating Voltage Max:
660VAC
|
| Control Voltage Max:
32VDC
|
| Switching Mode:
Zero Voltage Turn On
|
| Contactor Mounting:
DIN Rail
|
| Contactor Terminals:
Screw
|
| Operating Voltage Min:
42VAC
|
| Control Voltage Min:
4VDC
|
| Product Range:
-
|
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
ELR 1-SC-24DC/600AC-30 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
