Description

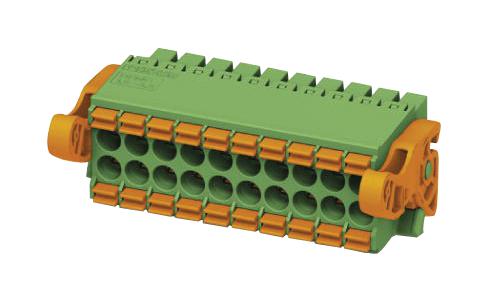

The DFMC series Printed-Circuit Board Connector is optimized for tight installation situations like operation and conductor connection from one direction. The defined contact force ensures that contact remains stable over the long term. Lock and release levers lock the plug to the header and also serve as a release tool.
- Time saving push-in connection, tools not required
- Intuitive use through colour coded actuation lever
Applications
Industrial
Product details
| Pitch Spacing: 3.5mm |
| No. of Positions: 6Ways |
| Wire Size (AWG): 24AWG to 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Push In |
| Rated Current: 8A |
| Rated Voltage: 160V |
| Product Range: DFMC |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | DFMC 1,5/ 6-ST-3,5-LR |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1242.43 |
| 3-5 | ₹ 1229.76 |
| 5-10 | ₹ 1204.4 |
| 10+ | ₹ 1179.04 |
Bulk discount will be automatically applied during checkout based on quantity.
