Description

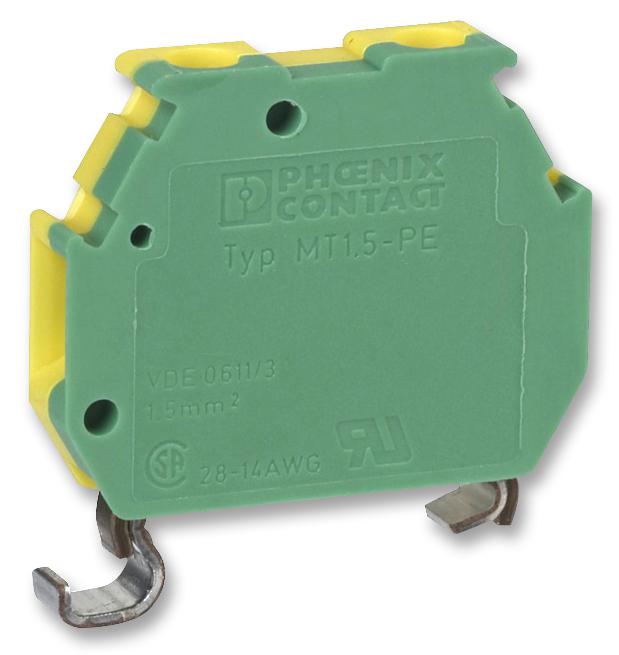

The 3100318 is a 2-position green/yellow DIN-rail mount ground modular Terminal Block with M2 screw connection. It has PA insulator and A1 internal cylindrical gage.
- Corrosion-free terminal points
- Low contact resistance
- Captive terminal block screws
- 0.22 to 0.25Nm Tightening torque
- UL94V-0 Flammability
Applications
Industrial
Product details
| No. of Positions: 2Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: - |
| Rated Voltage: - |
| No. of Levels: 1 |
| Product Range: MT |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3100318 |
| Quantity | Each |
| Technical Data Sheet EN |  |
