Description

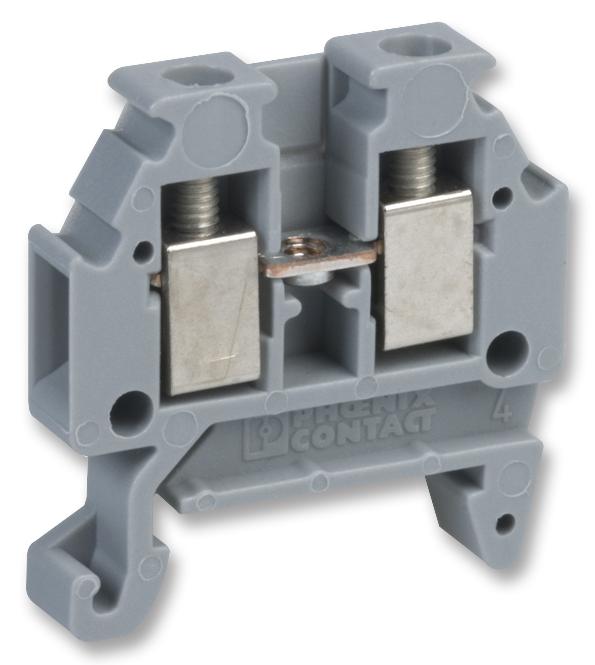

The 3100305 is a 2-position 1-level grey Micro Terminal Block with a polyamide insulator, the M2 screw connection and the NS 15 mounting. This MT 1,5 terminal block has space-saving compact design and mounting option on a 15mm DIN rail. It has potential distribution. It accepts 26 to 16AWG wire range.
- Design width of just 4.2mm
- Can be bridged in terminal centre
- Snap-on foot for NS 15 DIN rails
- 6mm Stripping length
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| No. of Positions: 2Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 15A |
| Rated Voltage: 300V |
| No. of Levels: 1 |
| Product Range: MT |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3100305 |
| Quantity | Each |
| Technical Data Sheet EN |  |
