Description

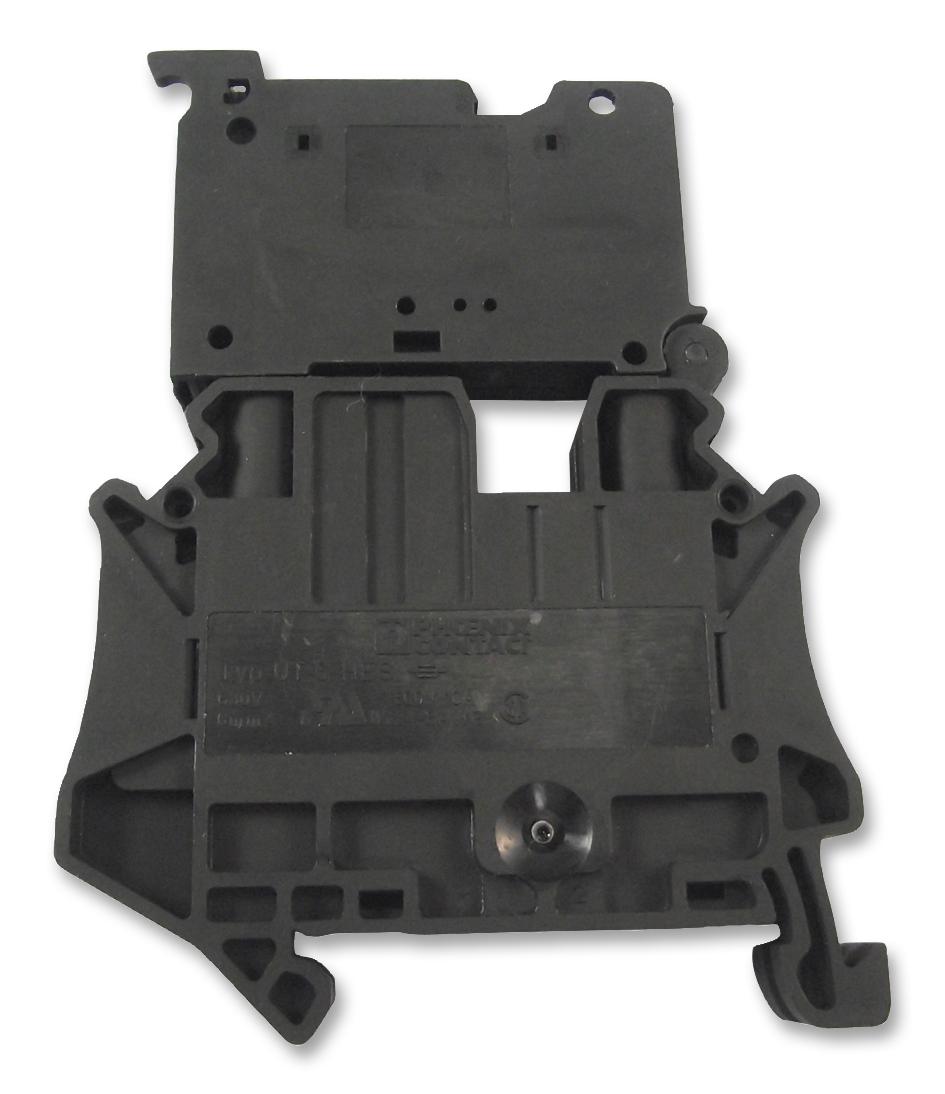

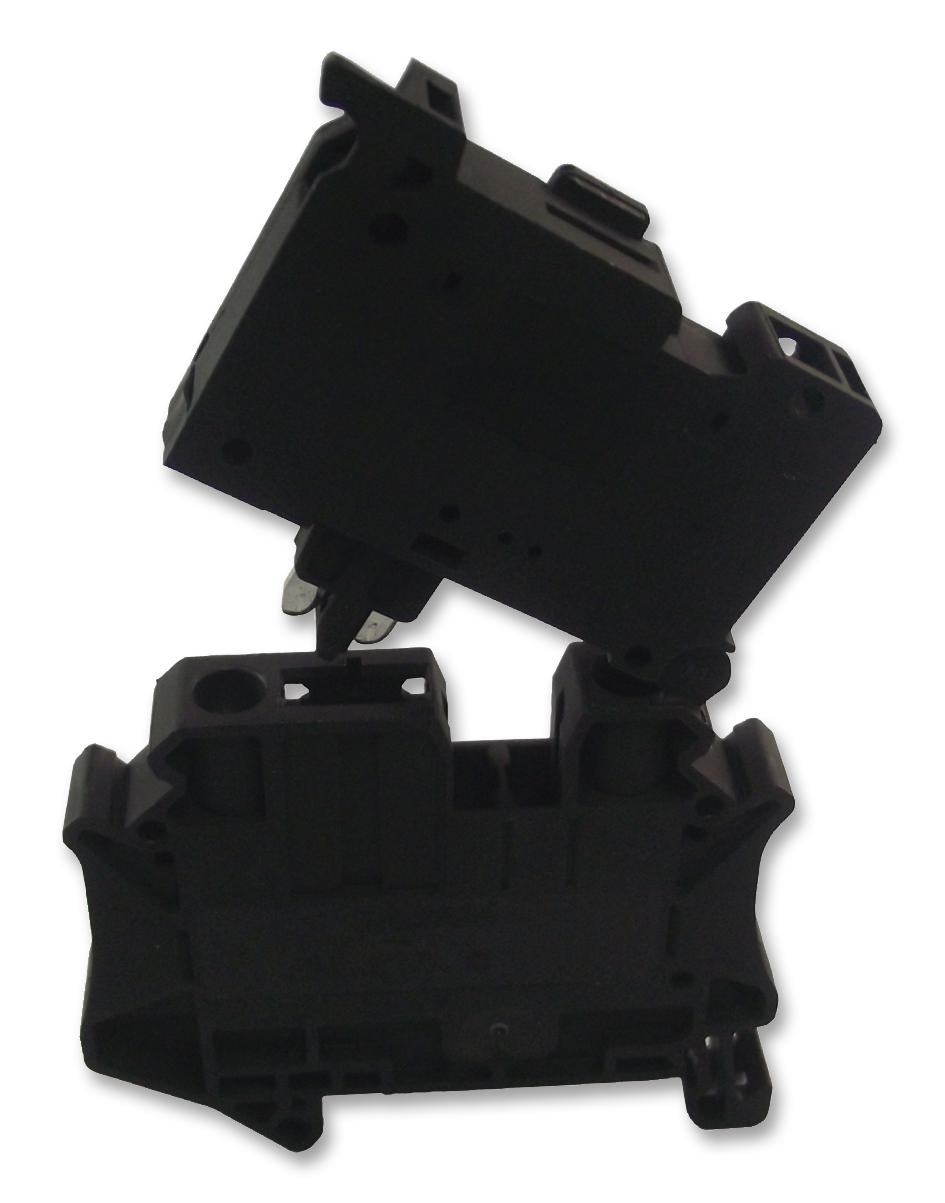

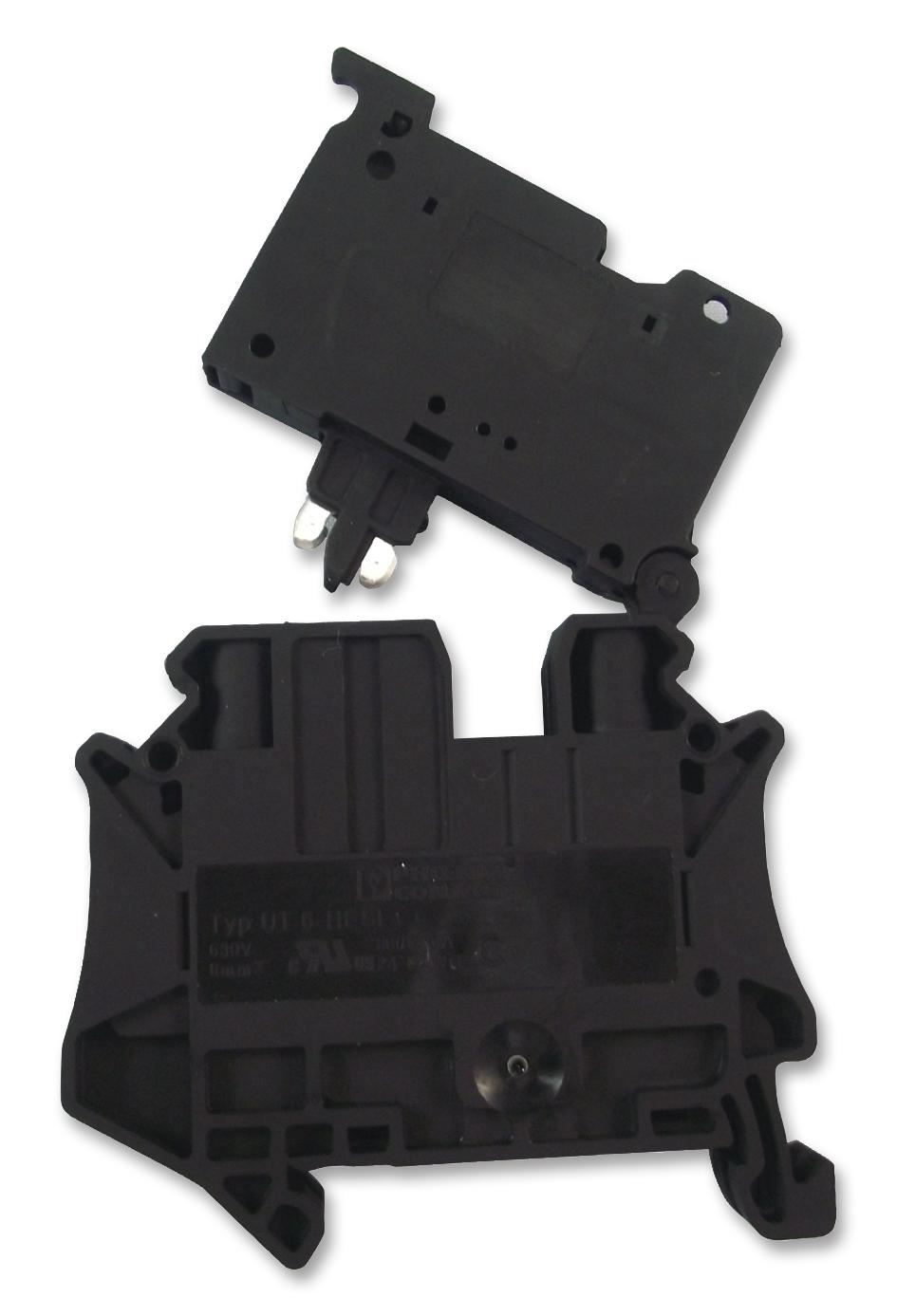

The 3046401 is a 2-position 1-level black Fused Modular Terminal Block for 6.3 x 32mm G fuse inserts. This UT 6-HESI (6,3X32) terminal block has a polyamide insulator, a glass fuse and the M4 screw connection. It has simple potential distribution. Quick identification of faulty fuses regardless of the current direction with LED status indicator. It accepts 24 to 8AWG wire range.
- An extremely compact design
- Test connection on both sides in safety lever
- 10mm Stripping length
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| No. of Positions: 2Ways |
| Wire Size (AWG): 24AWG to 8AWG |
| Conductor Area CSA: 10mm² |
| Wire Connection Method: Screw |
| Rated Current: 10A |
| Rated Voltage: 630V |
| Fuse Size Held: 1/4" x 1-1/4", 6.3mm x 32mm, 3AB, 3AG, 0 |
| Product Range: UT |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3046401 |
| Quantity | Each |
| Technical Data Sheet EN |  |
