Description

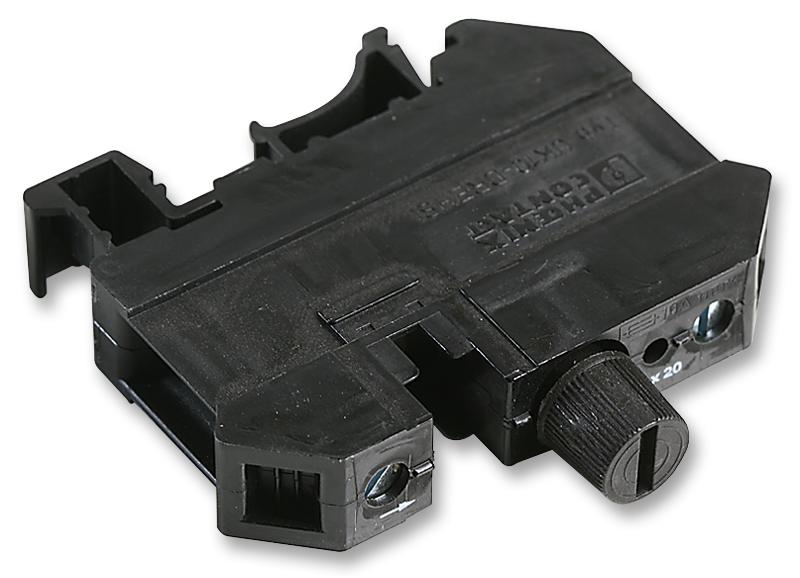

The 3005109 is a 2-position 1-level black Fused Modular Terminal Block for 5 x 20mm G cartridge fuse insert. This UK 10-DREHSI (5X20) terminal block has a polyamide insulator and the M4 screw connection. Quick identification of faulty fuses regardless of the current direction thanks to LED status indicator. It accepts 24 to 6AWG wire range.
- Can be bridged with FBI fixed bridge
- Semi-sinusoidal shock form
- 11mm Stripping length
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| No. of Positions: 2Ways |
| Wire Size (AWG): 24AWG to 6AWG |
| Conductor Area CSA: 16mm² |
| Wire Connection Method: Screw |
| Rated Current: 10A |
| Rated Voltage: 500V |
| Fuse Size Held: 5mm x 20mm |
| Product Range: UK |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3005109 |
| Quantity | Each |
| Technical Data Sheet EN |  |
