Description

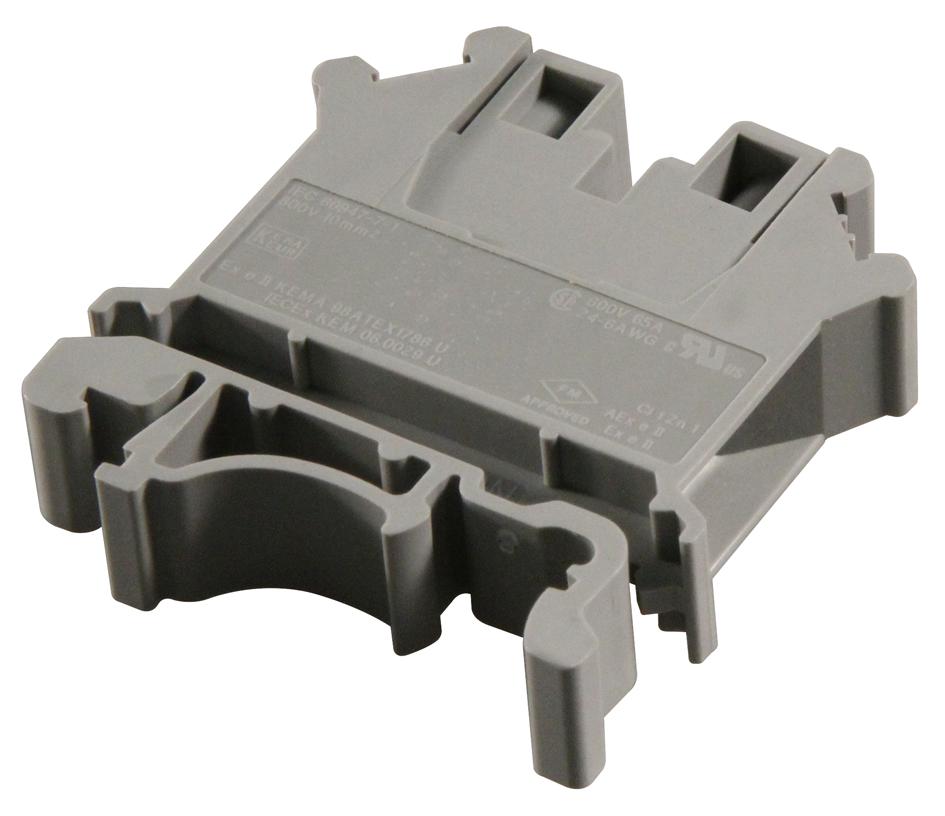

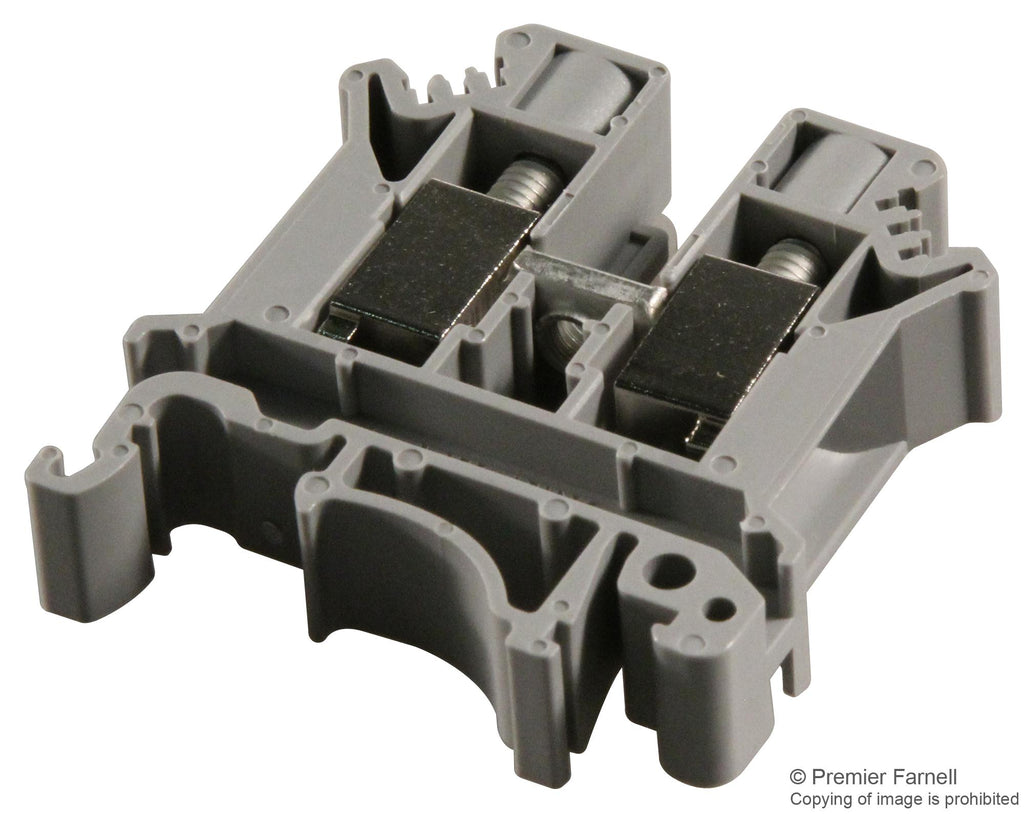

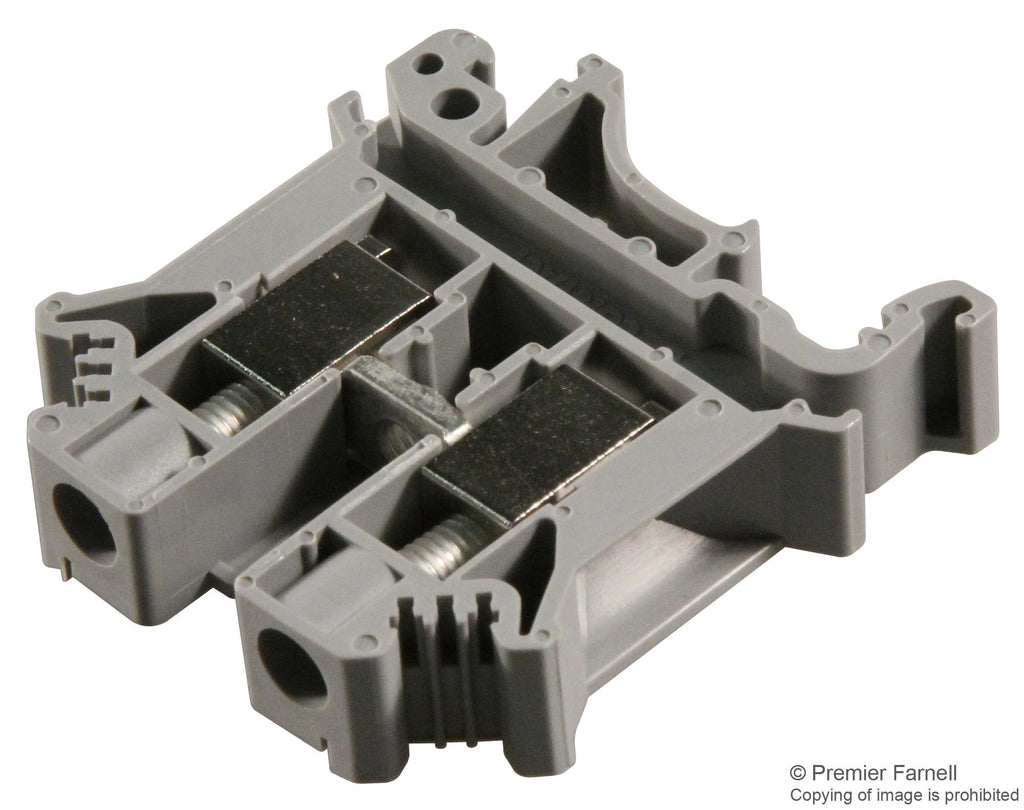

The 3005073 is a 2-position feed-through Terminal Block with PA (polyamide) insulator, grey colour. 0.5 to 16mm² cross-section, 20 to 6AWG wire size and 10.2mm width. NS 35/7, 5, NS 35/15, NS 32 mounting method and screw connection method. All universal terminal blocks in the UK series can also be used in the Ex e area according to IEC/EN 60079 as standard.
- UL94V-0 Flammability rating
- 8kV Rated surge voltage
- 76A (with 16mm² conductor cross section) Maximum load current
Applications
Industrial
Product details
| No. of Positions: 2Ways |
| Wire Size AWG Min: 20AWG |
| Wire Size AWG Max: 6AWG |
| Conductor Area CSA: 16mm² |
| Wire Connection Method: Screw |
| Rated Current: 57A |
| Rated Voltage: 800V |
| No. of Levels: 1 |
| Product Range: UK |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3005073 |
| Quantity | Each |
| Technical Data Sheet EN |  |
