Description

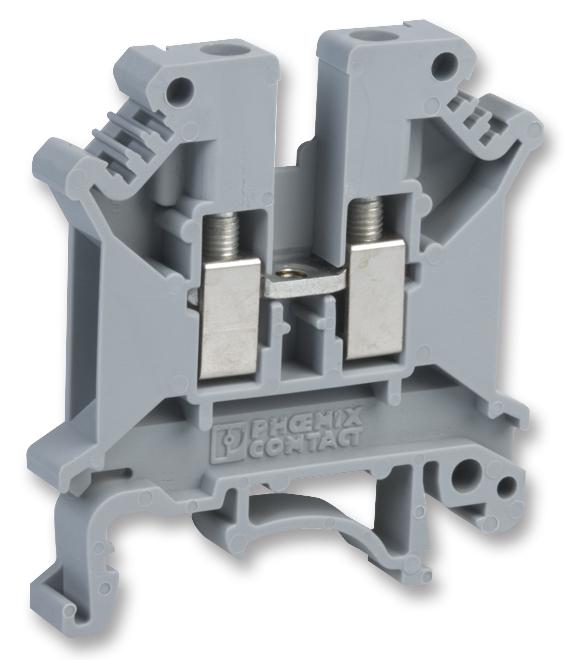

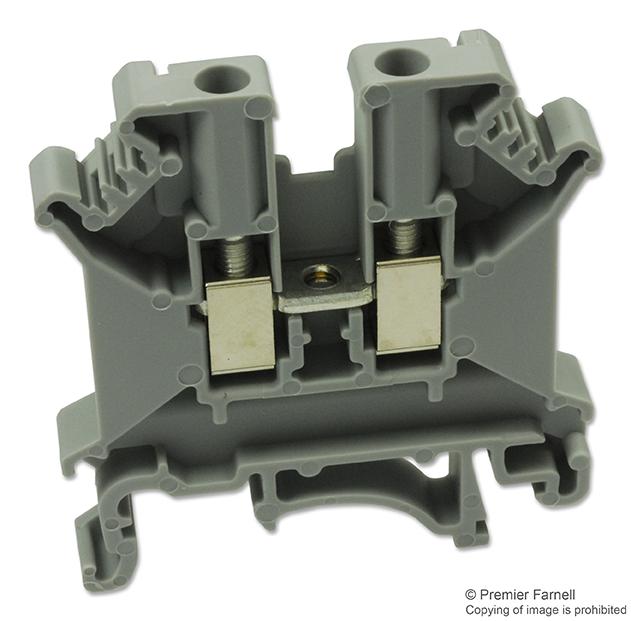

The 3004362 is a grey feed-through Terminal Block. Made of polyamide for durability. Potential distribution in the block is made through fixed bridges in the terminal centre or insertion bridges in the clamping space. It has a voltage drop less than equal to 3.2mV and 2kV power frequency to withstand a voltage set point of 5N. It has 10N, 60N, 80N tractive force set point, 4/6sq.mm conductor cross section for short-circuit testing and testing frequency of 5 to 150Hz.
- Easy to Operate and Use, Thanks to Proven Screw Connection
- Universal Use, Connection of Small to Very Large Conductor Cross Sections
- Space-saving Thanks to Compact Design
Applications
Industrial
Product details
| No. of Positions: 2Ways |
| Wire Size AWG Min: 24AWG |
| Wire Size AWG Max: 10AWG |
| Conductor Area CSA: 6mm² |
| Wire Connection Method: Screw |
| Rated Current: 32A |
| Rated Voltage: 800V |
| No. of Levels: 1 |
| Product Range: UK |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3004362 |
| Quantity | Each |
| Technical Data Sheet EN |  |
