Description

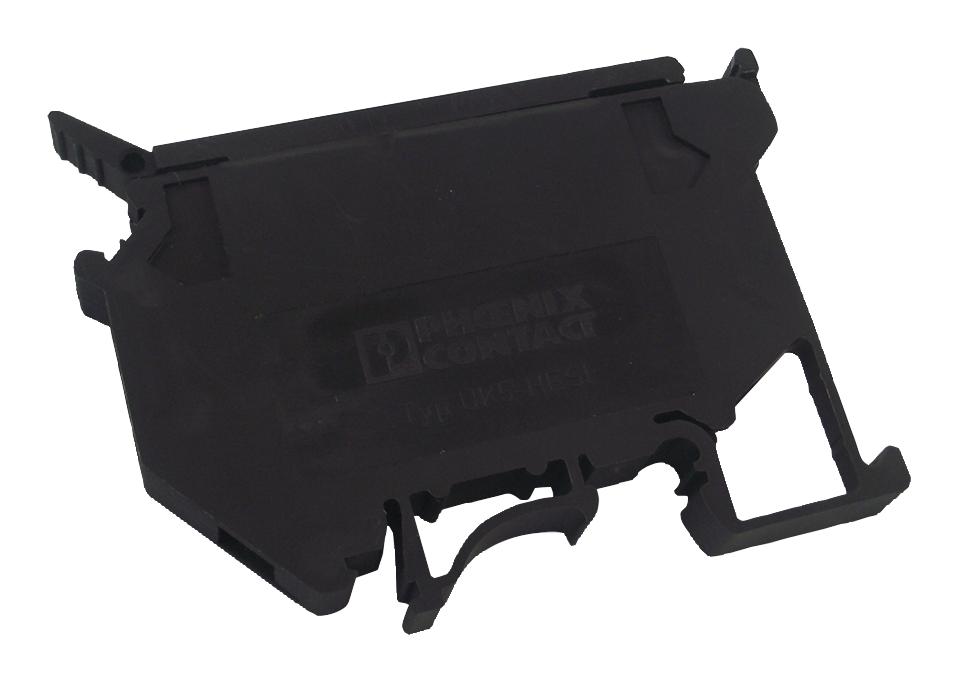

The 3004100 is a 1-position fuse Terminal Block with PA (polyamide) insulator and black colour for cartridge fuse insert. 0.2 to 4mm² cross-section, 26 to 10AWG wire size and 8.2mm width, nein open side panel and screw wire connection method.
- UL94V-0 Flammability rating
- G/5 x 20/5 x 25/5 x 30 Glass fuse
- Versions with LED
- Large-surface labelling
- Safety lever locked in end position
Applications
Industrial
Product details
| No. of Positions: 2Ways |
| Wire Size (AWG): 24AWG to 12AWG |
| Conductor Area CSA: 4mm² |
| Wire Connection Method: Screw |
| Rated Current: 6.3A |
| Rated Voltage: 500V |
| Fuse Size Held: 5mm x 20mm, 5mm x 25mm, 5mm x 30mm |
| Product Range: UK |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3004100 |
| Quantity | Each |
| Technical Data Sheet EN |  |
