Description

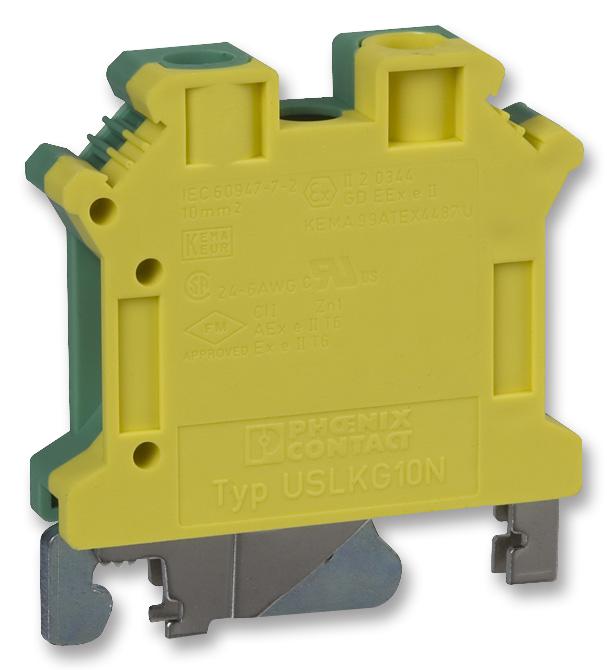

The 3003923 is a 2-position 1-level green-yellow Ground Modular Terminal Block with a polyamide insulator, the M4 screw connection and the NS 35/7,5, NS 35/15, NS 32 mounting. This USLKG 10 N terminal block has easy operation and use and can be snapped onto the DIN rail. It accepts 20 to 6AWG wire range.
- 10mm Stripping length
- UL94V-2 Flammability rating
Applications
Industrial
Product details
| No. of Positions: 2Ways |
| Wire Size AWG Min: 20AWG |
| Wire Size AWG Max: 6AWG |
| Conductor Area CSA: 16mm² |
| Wire Connection Method: Screw |
| Rated Current: 57A |
| Rated Voltage: - |
| No. of Levels: 1 |
| Product Range: - |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3003923 |
| Quantity | Each |
| Technical Data Sheet EN |  |
