Description

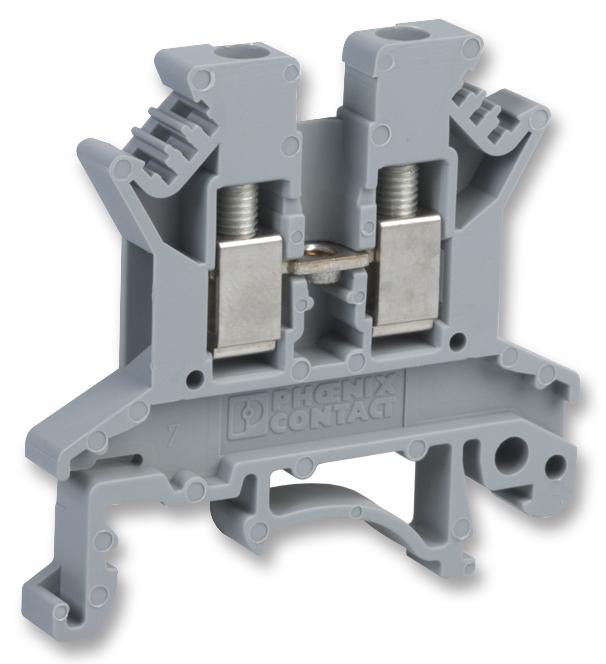

The 3003347 is a 2-position 1-level grey Feed-through Terminal Block with a polyamide insulator, the M3 screw connection and the NS 35/7,5 & NS 35/15 mounting. This UK 2,5 N universal screw terminal block series has the typical features which are decisive for practical applications. It provides potential distribution via fixed bridges in the terminal centre or insertion bridges in the clamping space. Save time and space with a multi-conductor connection. It accepts 24 to 14AWG wire range.
- Universal foot which can be used on NS 35 and NS 32 DIN rails
- 7mm Stripping length
- UL94V-2 Flammability rating
Applications
Industrial
Product details
| No. of Positions: 2Ways |
| Wire Size AWG Min: 24AWG |
| Wire Size AWG Max: 14AWG |
| Conductor Area CSA: 4mm² |
| Wire Connection Method: Screw |
| Rated Current: 24A |
| Rated Voltage: 800V |
| No. of Levels: 1 |
| Product Range: UK |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3003347 |
| Quantity | Each |
| Technical Data Sheet EN |  |
