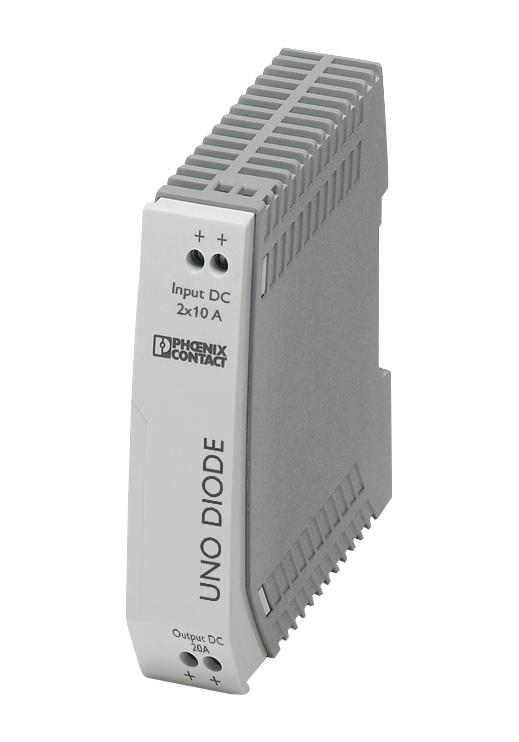

UNO-DIODE/5-24DC/2X10/1X20 is a redundancy module. It has a safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another. To further increase system availability, UNO DIODE provides the solution decoupling with diode. Approved by UL/C-UL listed UL 508, UL/C-UL Recognized UL 60950-1.
- Nominal input voltage from 5VDC to 24VDC, nominal output voltage is 2x 10A, 1x 20A (-25°C to 55°C)
- Nominal output current is 2x 10A (-25°C to 55°C), 1x 20A (-25°C to 55°C)
- Typical efficiency is > 97%
- Flexible mounting by simply snapping onto the DIN rail, save energy
- Rugged design, permanent monitoring of redundancy
- Consistent redundancy up to the load
- Degree of protection is IP20, metal housing material
- Screw input and output connection
- Operating ambient temperature -25°C to 70°C (> 55°C derating 2.5 %/K)
- Dimension is (W x H x D) 22.5 x 90 x 84mm
Product details
| For Use With:
Phoenix Contact UNO Series Power Supplies
|
| Accessory Type:
Redundancy Module
|
| Product Range:
UNO DIODE Series
|
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
2905489 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
