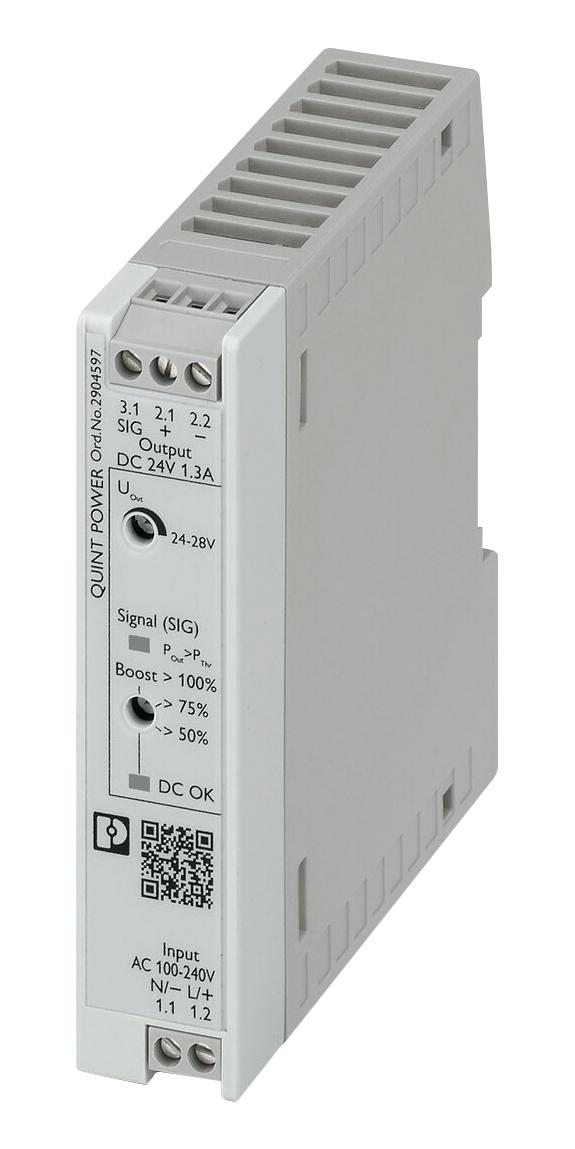

2904597 is a QUINT4-PS/1AC/24DC/1.3/SC primary-switched power supply unit. QUINT POWER provides superior system availability in the smallest size. Preventative function monitoring and exceptional power reserves are available for applications in the low-power range. Certified by EN 61000-3-2, IEC 61010-2-201 (SELV), IEC 61010-1 (SELV), IEC 61010-2-201 (PELV), IEC 61558-2-16, IEC 61010-2-201, IEC 61010-1, EN 61558-2-16, EN 61204-3, UL Listed UL 61010-1, UL Listed UL 61010-2-201, UL 1310 Class 2 Power Units, ANSI/UL 121201 Class I.
- Nominal input voltage range from 100VAC to 240VAC (-15 % to+10 %), nominal output voltage is 24VDC
- Nominal output current is 1.3A, output power is 30W, 38W, 60W
- Typical efficiency is 89.2% (120VAC), 90.7% (230VAC)
- Starting of heavy loads with dynamic boost, switching frequency range from 30 to 150kHz (PFC stage)
- Preventive function monitoring indicates critical operating states before errors occur
- High efficiency and long service life, with low power dissipation and low heating
- Space savings in the control cabinet due to a narrow, slim-line design
- IP20 degree of protection, screw input and output connection, plastic housing material
- Operating ambient temperature range from -25°C to 70°C
- Dimension(W x H x D) is 22.5 x 99 x 90mm
Product details
| Power Supply Applications:
Laboratory Equipment
|
| No. of Outputs:
1 Output
|
| Output Power Max:
30W
|
| Output Voltage - Output 1:
24VDC
|
| Output Current - Output 1:
1.3A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
100V AC to 240V AC
|
| Power Supply Output Type:
Adjustable, Fixed
|
| Product Range:
QUINT POWER Series
|
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
2904597 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
